1. Locate the connector at the end of the SAS cable that is to be removed from the
expansion enclosure.
2. Grasp the connector by its blue tag. Pull the tag.
3. Release the connector and slide it out of the SAS port.
4. Repeat steps 2 and 3 on the other end of the SAS cable.
Replacing a SAS cable
5. Ensure that the SAS connector is oriented correctly, as shown in Figure 76. The
blue tab must face towards the top of the enclosure canister.
6. Insert the SAS cable into the SAS port until you hear or feel a click. When the
cable is successfully inserted, you cannot disconnect the cable without pulling
on the blue tag.
Connecting to a Storwize V5000 node
7. Connect the SAS cable to the SAS port with blue tab above the connector (that
is, facing towards the top of the node).
You hear or feel a click when the cable is successfully inserted. You cannot
disconnect the cable without pulling on the blue tag.
8. Route the SAS cables through the cable management arms, as shown in
Figure 77 on page 90.
▌1▐ Blue pull tab
▌2▐ SAS cable
▌3▐ SAS port

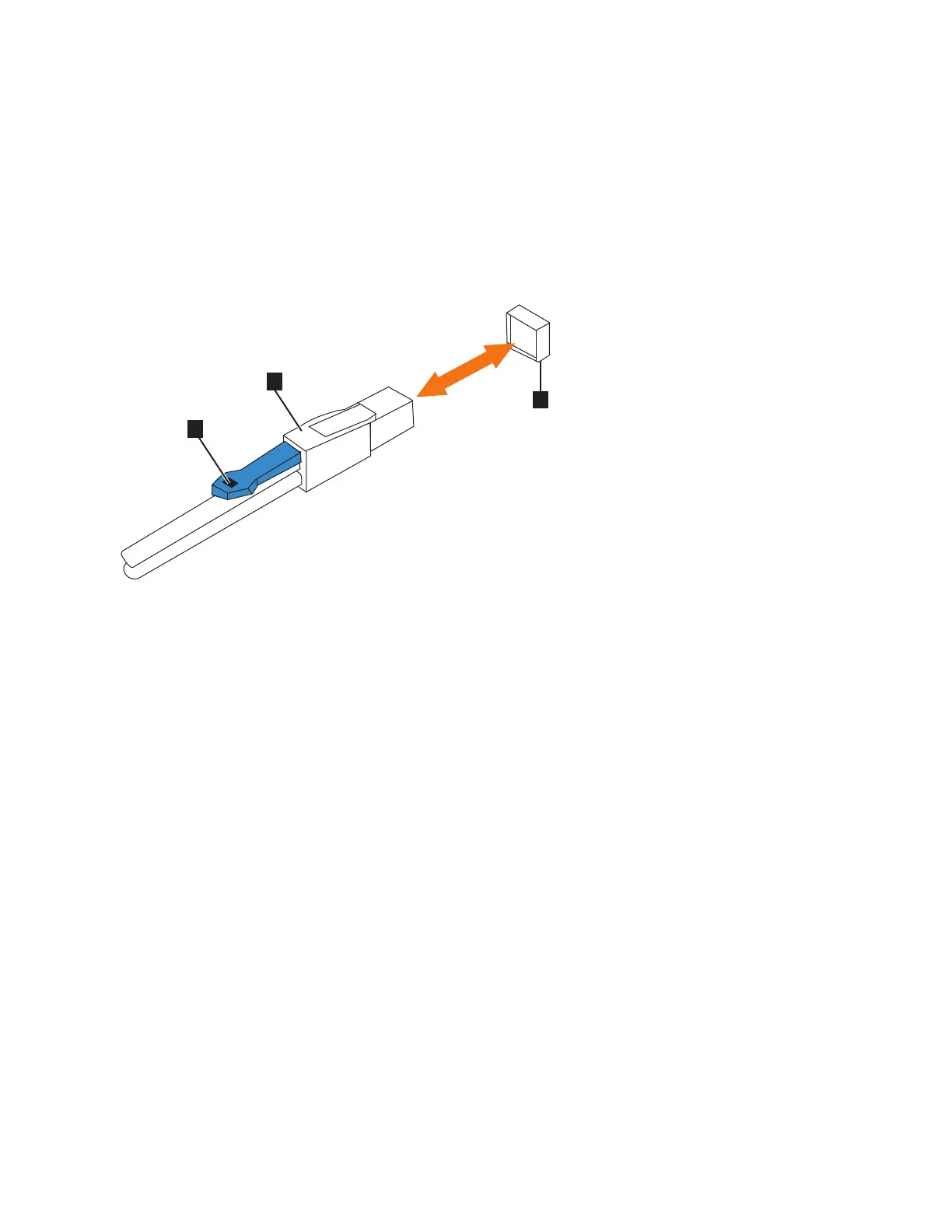

Figure 76. Correct orientation for SAS cable connectors
