Removing the upper bezel
This procedure applies only to the 5U server model with hot-swap power supplies
(Model name: 2582-F4x).
To access the DVD drive or tape drive on the 5U server model with hot-swap power
supplies (Model name: 2582-F4x), you must first remove the upper bezel to access
the devices.
To remove the upper bezel on the 5U server model with hot-swap power supplies
(Model name: 2582-F4x), complete the following steps.
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 163.
2. If you are replacing a non-hot-swap component, turn off the server and all
attached devices; then, disconnect all power cords and external cables.
3. Unlock and remove the side cover (see “Removing the side cover” on page
166).
4. Remove the lower bezel (see “Removing the lower bezel” on page 171).

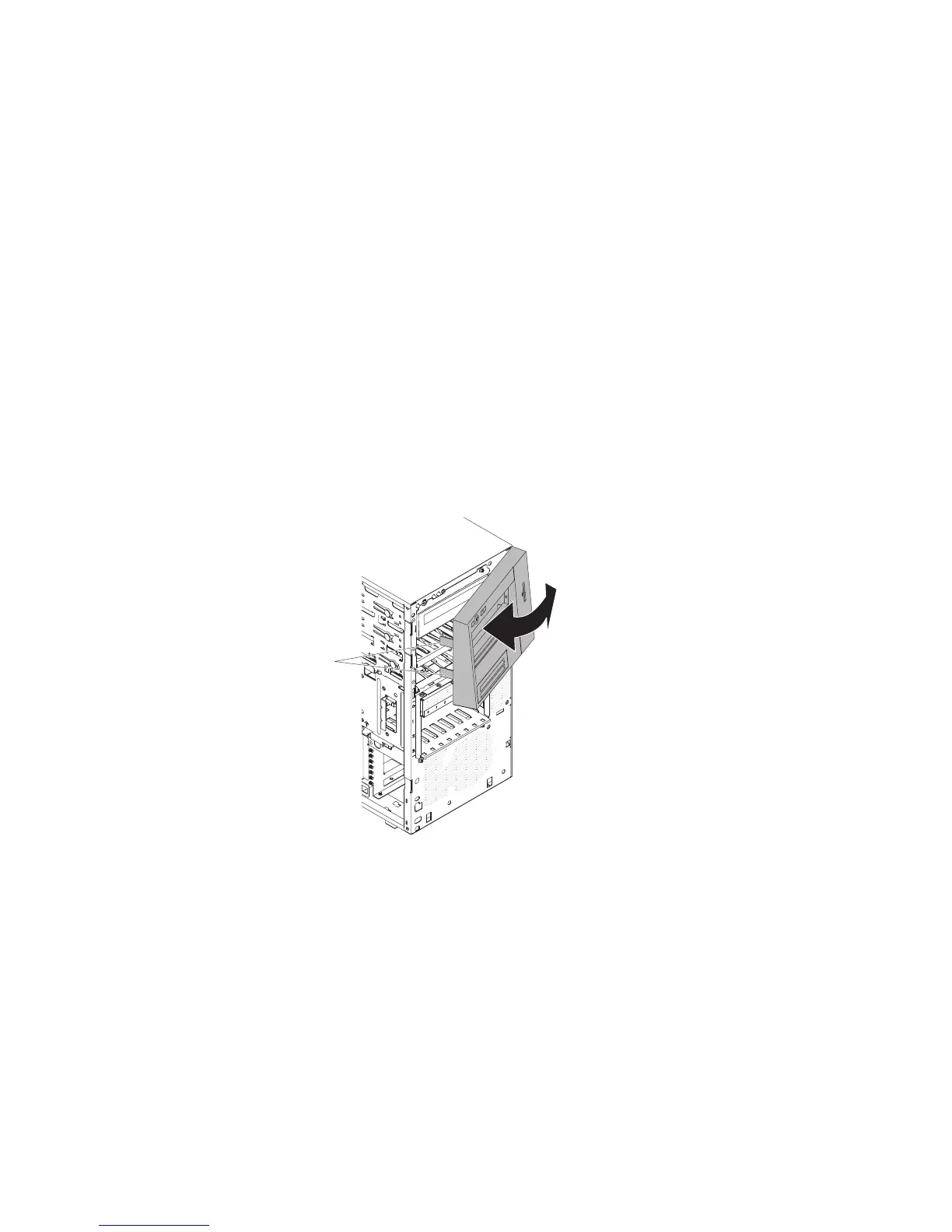

5. Carefully pull the two bezel clips on the left side of the upper bezel; then, rotate
the upper bezel to the right side of the server to disengage the two right-side
tabs from the chassis.
Bezel clips
6. If you are instructed to return the upper bezel, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.
