Server controls, LEDs, and power
This section describes the controls, light-emitting diodes (LEDs), and connectors on
the front and rear of the server, and how to turn the server on and off. For the
location of the LEDs on the system board, see “System-board LEDs” on page 18.
Note: The illustrations in this document might differ slightly from your model.
Front view

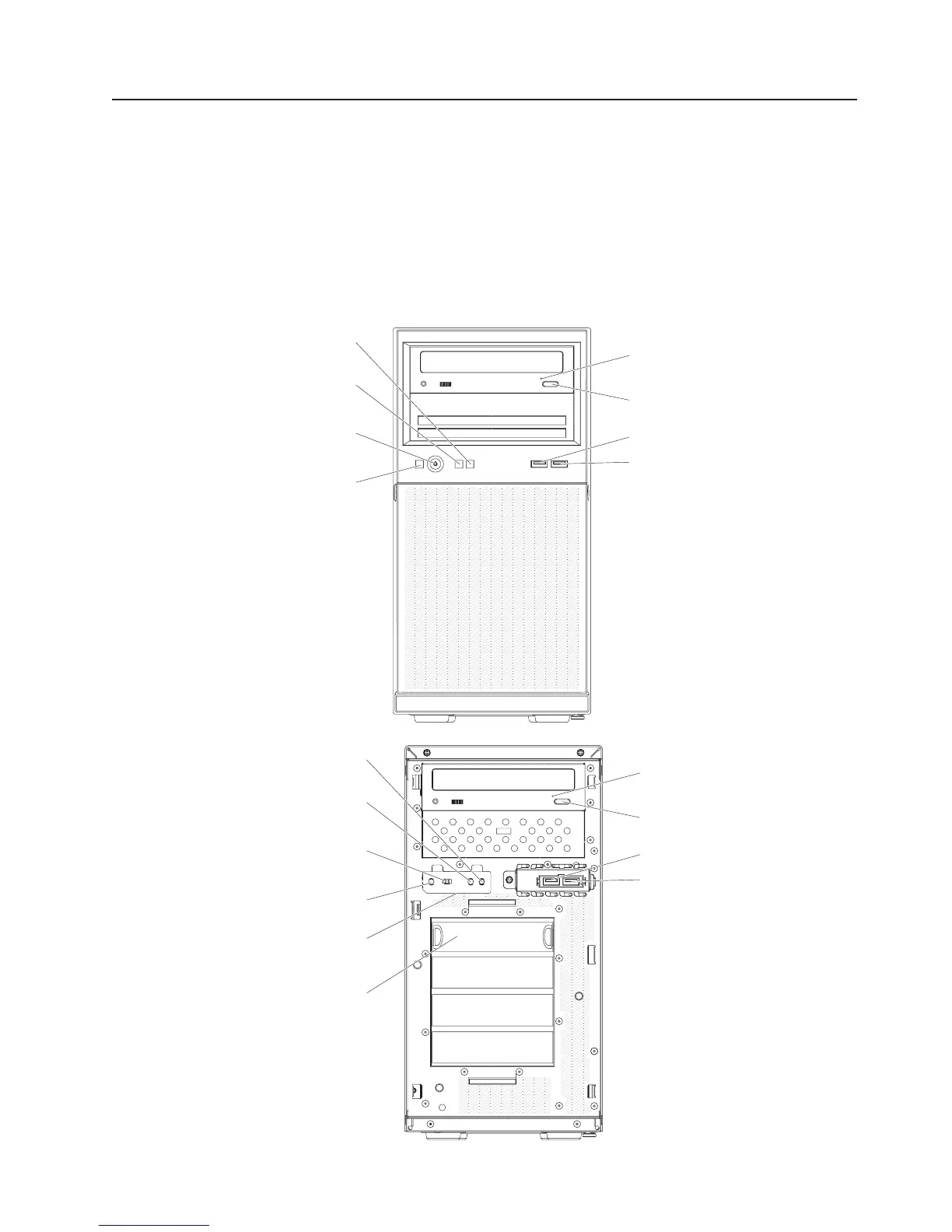

The following illustration shows the controls and LEDs on the front of 4U server
models with non-hot-swap power supplies.
DVD drive activity
LED(green)
DVD-eject
button
USB 2
USB 1
Power-on LED
Power-control
button
Hard disk drive
activity LED
System error
LED
DVD drive activity
LED(green)
DVD-eject
button
USB 2
USB 1
Simple-swap
hard disk drive
Front information
panel
Power-on LED
Power-control
button
Hard disk drive
activity LED
System error
LED
