Internal Cable Routing and Connectors
The server uses cables to connect SATA attached, hot-swap SATA, hot-swap SAS
and DVD drive devices to the power supply and to the system board.
Review the following information before connecting power and signal cables to
internal drives:
v The drives that are preinstalled in the server come with power and signal cables
attached. If you replace any drives, remember which cable is attached to which
drive.
v When you route a cable, make sure that it does not block the airflow to the rear
of the drives or over the microprocessor or DIMMs.
Power Cable Connection
The following illustration shows the fixed power cable routing.

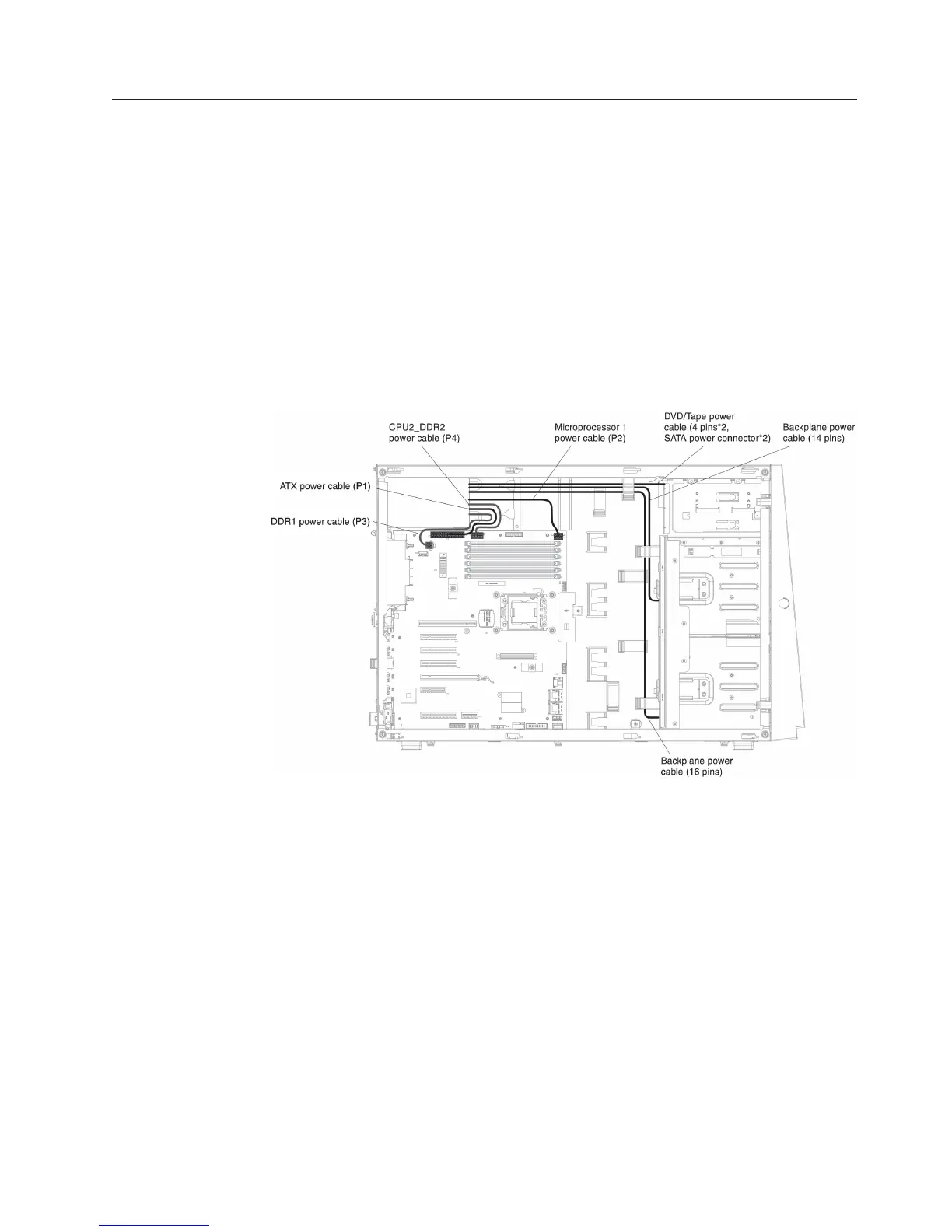

The following illustration shows the hot-swap power cable routing.
Chapter 2. Installing optional devices 47
