UNIT DESCRIPTION AND SPECIFICATIONS
2001 NEW2001 NEW
10
Specifications ■
Unit description ■
Frequencycoverage: 1.6–30MHz(with7m;23.0feet)orlongerantennaelement)•
Power supply requirement: 13.6 V DC (supplied from the HF transceiver)•
Current drain: Maximum 2 A•
Operating temperature range: –30• °C to +60°C (–22°F to +140°F)
Weight (approximately): 2.5 kg; 5.5 lb•
Antenna connector: SO-239 (50 • Ω)
Maximum Input power: 150 W (PEP) 100 W (continuous)•
Automatic tuning time: •
Approximately 2 to 3 seconds (general condition)
Maximum 15 seconds
Approximately
1 second (re-tuning for a memorized frequency)
Automatic tuning accuracy: SWR 2.0:1 (after tuning, except for multiples of •
1
⁄2 λ)
Usable pole diameter: 32 to 60 mm; 1.3 to 2.4 inches•
All stated specifications are subject to change without notice or obligation.

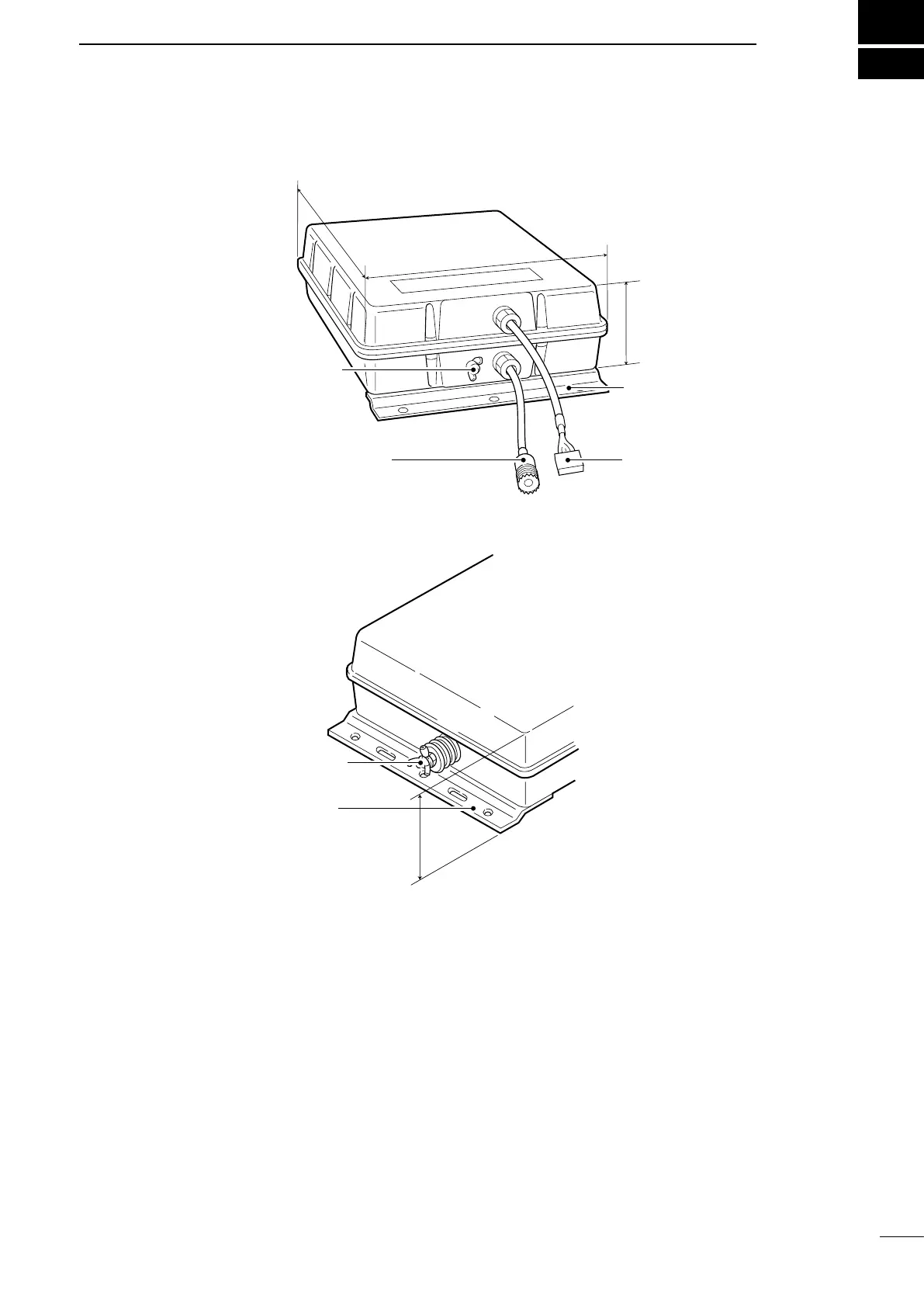

Antenna terminal
Mounting plate
Control cable connectorAntenna connector
Mounting plate
Ground terminal
230 mm; 9.1 inches
80 mm; 3.1 inches
91.5 mm; 3.6 inches
340 mm; 13.4 inches
