Icom IC-78 Service Manualvice Man

MP1 8510013040 2241 mixer case 1
MP25 8510013140 2241 DC-A case 1
F1 5210000080 Fuse FGB 20A 1
F2 5210000130 Fuse FGB 4A 1
W1 Optional product DC power cable OPC-025 A 1
MC1 Optional product Microphone HM-36 1
SP1 2510000670 Speaker VS-50-0827 1
EP2 6450001230 Snap plate HLJ0999-01-480 1
MP1 8210016620 2241 front panel 1
MP2 8930050940 2241 21-key 1
MP3 8930050930 2241 3-key 1
MP4 8930050960 2241 power key 1
MP5 8930050950 2241 lock key 1
MP6 8010018050 2241 sub chassis assembly 1
MP9 8610010420 Knob N261 1
MP10 8610010420 Knob N261 1
MP11 8610010710 Knob N272 1
MP12 8610010710 Knob N272 1
MP15 8610010800 Knob N278 1
MP16 8930050990 2241 plate 1
MP22 8810008660 Screw PH BT M3 × 8 NI-ZU 5
MP23 8810009130 Screw PH BT M3 × 12 NI-ZU 6
MP24 8930049930 Non-woven sheet CC 2
MP25 8930036870 Sponge (DZ) 1
7 - 1
Screw abbreviations: PH: Pan head FH: Flat head
BT, A0: Self-tapping ZK: Black
NI-ZU: Nickel-Zinc

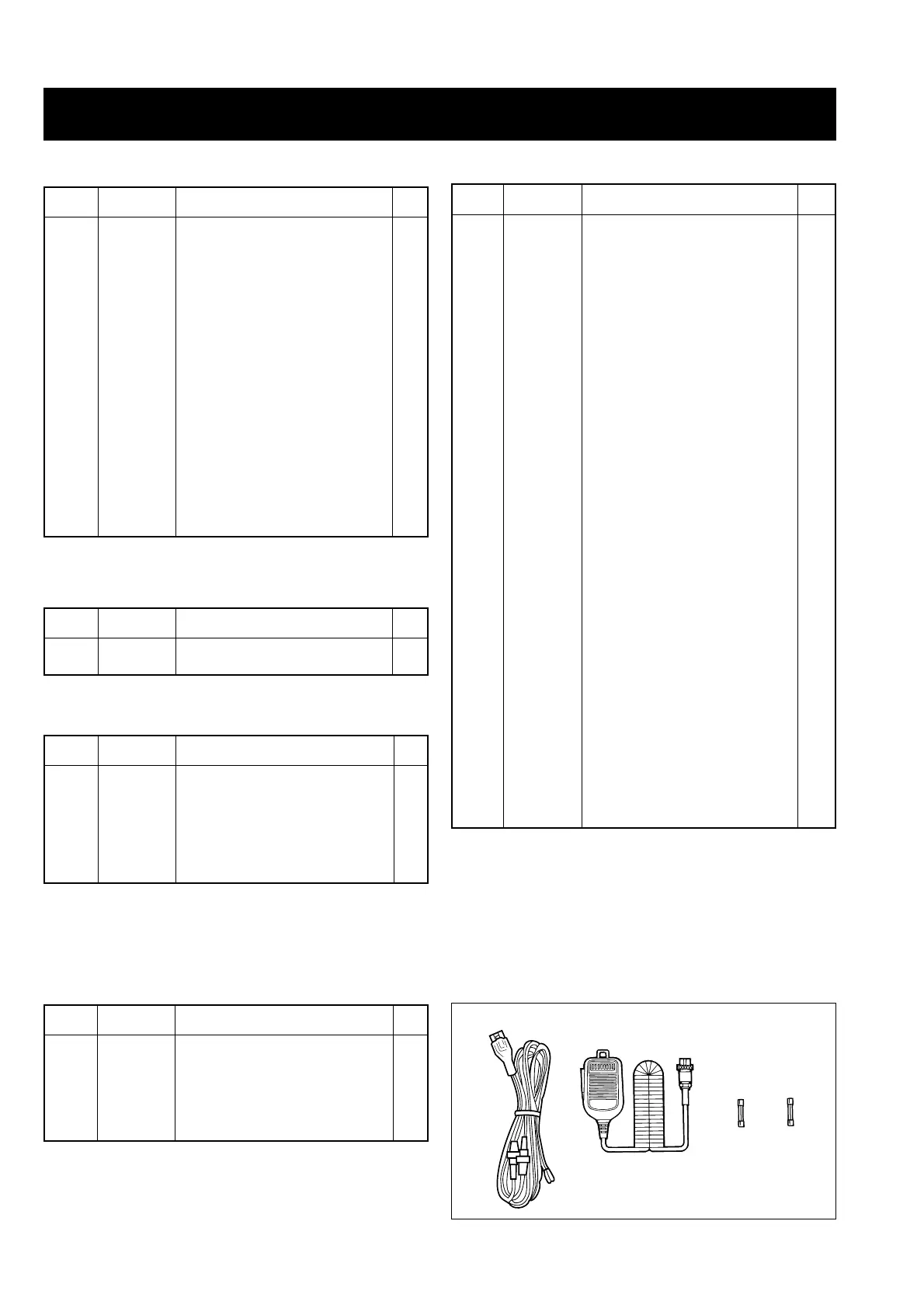

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
[CHASSIS PARTS]
[FRONT UNIT]
F1
W1 MC1
F2
REF NO.
ORDER
NO.
DESCRIPTION QTY.
QTY.
J1 6510000370 ANT connector MR-DS 1
MF1 2710000520 Fan SB0812H-ICOM-00 1
EP1 8930021010 Domed plug DP-500 1
EP2 6910000310 B312D insulation washer 1
EP3 6910000340 P101 KD insulation sheet 1
MP1 8110007050 Bottom cover 2241 L-cover 1
MP2 8110007060 Top cover 2241 U-cover 1
MP3 8010018020 2241 chassis 1
MP4 8930037001 1691 grounding plate-1 1
MP6 8930002900 Rubber foot (A) SK1912A 2
MP7 8010001520 Stand (C) 1
MP8 8930005790 Color foot (A) for stand 1
MP9 8930005800 Color foot (B) for stand 1
MP10 8930018520 TR clip (A) 1
MP11 8930018520 TR clip (A) 1
MP12 8810009650 Screw FH BT M3 × 8 NI-ZU 4
MP13 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP14 8810008660 Screw PH BT M3 × 8 NI-ZU 5
MP15 8810008660 Screw PH BT M3 × 8 NI-ZU 7
MP16 8810008660 Screw PH BT M3 × 8 NI-ZU 6
MP17 8810008660 Screw PH BT M3 × 8 NI-ZU 9
MP18 8810008660 Screw PH BT M3 × 8 NI-ZU 4
MP19 8810008660 Screw PH BT M3 × 8 NI-ZU 1
MP20 8810003170 Set screw A M3 × 88
MP21 8820000550 Cap bolt M4 × 8 ZK 4
MP22 8810005770 Bind M3 × 8 ZK 14
MP23 8820000530 Frange bolt M4 × 8 NI 1
MP24 8850000140 Flat washer M4 NI BS 2
MP25 8850000430 Spring washer M4 NI 1
MP26 8930052550 2241 sheet 2
MP28 8810009130 Screw FH BT M3 × 12 NI-ZU 2
MP29 8930052080 2241 grounding spring 2
MP31 8930007120 Non-woven sheet B 2
MP33 8930004070 Grounding spring (C) 1
MP34 8810008660 Screw PH B0 3 × 8 NI-ZU 5
MP35 8510013470 2241 PA cover 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
[MAIN UNIT]
[ACCESSORIES]
REF NO.
ORDER
NO.
DESCRIPTION QTY.
REF NO.
ORDER
NO.
DESCRIPTION
DS1 5030001820 LCD A0087 1
EP70 8930051450 LCD contact SRCN-2241-SP-N-W 2
MP1 8210016610 2241 reflector 1
MP2 8930050970 2241 LCD holder 1
MP3 8930051090 2241 LCD filter 1
[LOGIC UNIT]
REF NO.
ORDER
NO.
DESCRIPTION QTY.
