3 - 1
SECTION 3
DISASSEMBL
Y
INSTRUCTIONS

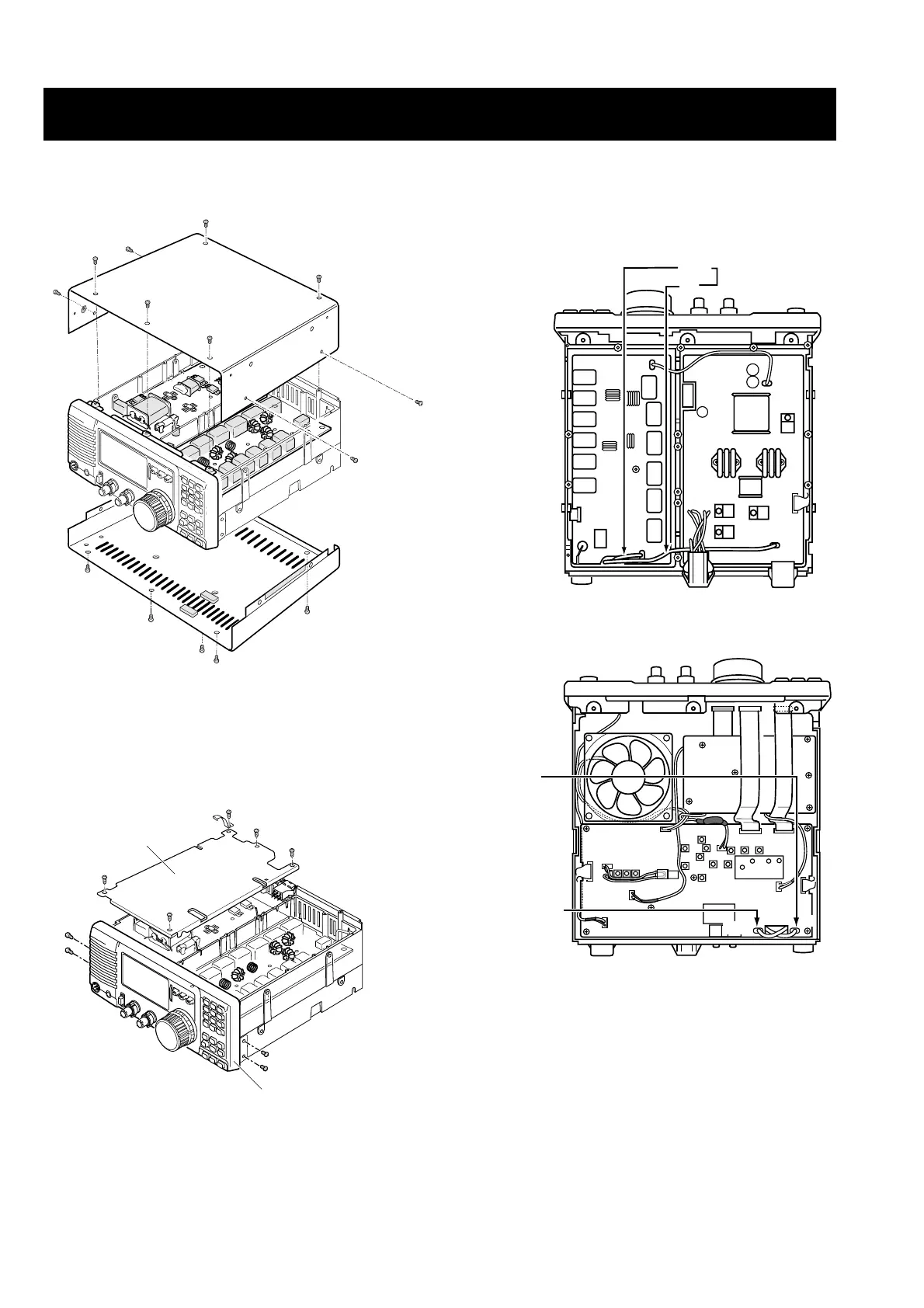

• Removing the covers
Remove 14 screws from the top and bottom covers.
• Removing the Front unit and P
A
cover
Remove 4 screws from the front panel.
Remove 5 screws from the P
A
cover
.
• How to connect the coaxial cable
Connect the coaxial cable as shown below
.
J6
J3
to MAIN unit
P
A unit
FIL
TER
unit
J1
J701
P
A cover
FRONT panel
MAIN unit
PLL unit
J3
from FIL
TER unit
J6
from P
A unit
J701
J1
