August 2015
(Replacement page)
4-2
M PROCEDURE OF ADJUSTMENT
q Connect the transceiver and PC with the OPC-1529R.
w
Turn ON the transceiver.
e
Boot up Windows, and click the program group ‘CS-A210/A220 ADJ’ in the ‘Programs’ folder of the [Start] menu,
then the CS-A210/A220 ADJ’s window appears.
r
Click the [ADJ] icon to enter the adjustment mode.
t
Click the [READ] icon to load the initial data from the transceiver.
y
Set or modify the adjustment data as specifi ed in the guidances (pages 4-3 to 4-6).
u
When the adjustment is fi nished, click the [WRITE] icon.
i
Click the [NRM] icon to quit the adjustment mode, and return to the normal mode.
[ADJ]
[NRM]
[LOAD]
Adjustment
items
[WRITE]
Select the adjustment channel
for each adjustment item.

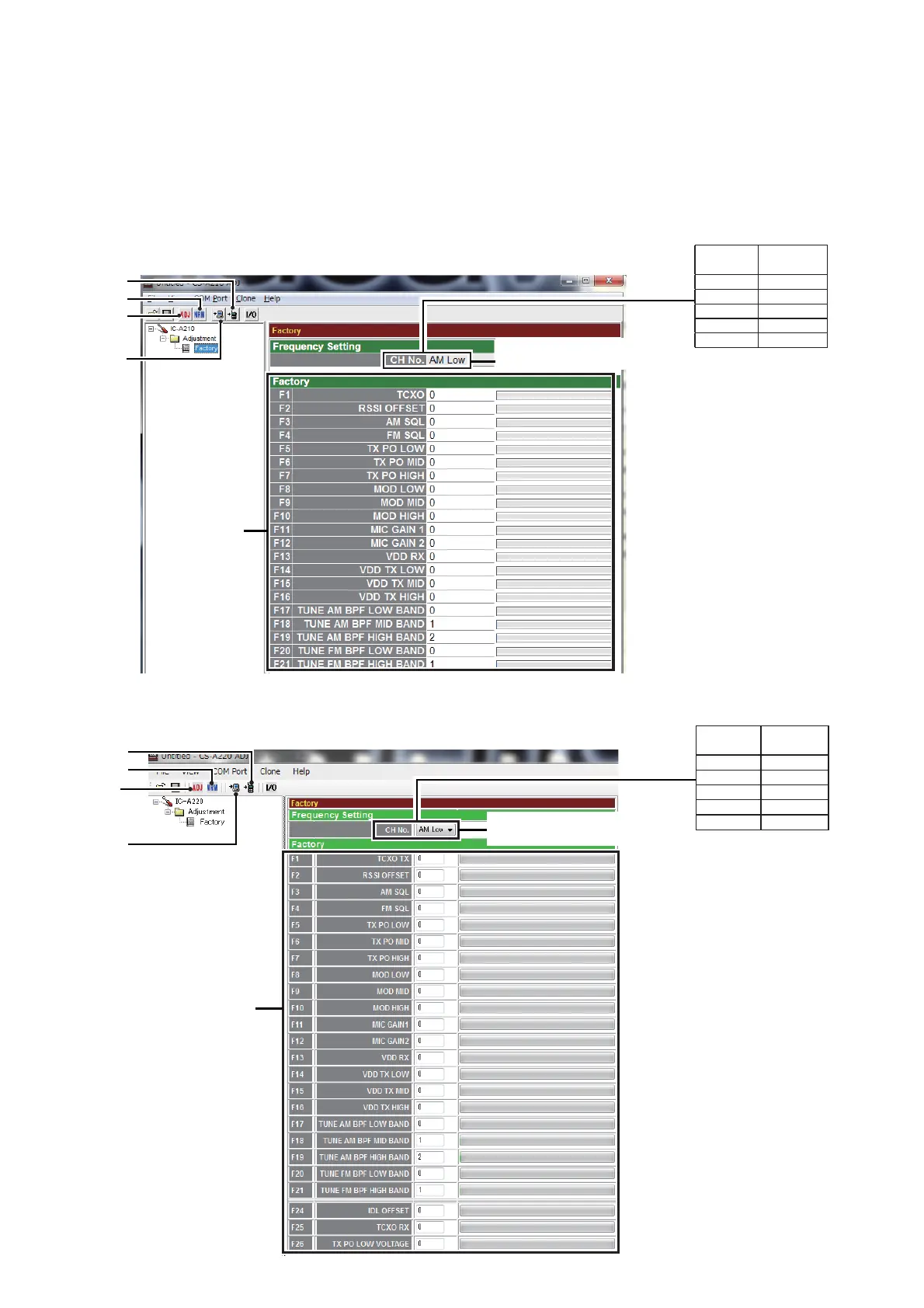

• ADJUSMENT SOFTWARE SCREEN
<For the IC-A210>
*This screen is an example.
CH No.
Frequency
(MHz)
AM LOW 118.000
AM MID 127.500
AM HIGH 136.975
FM LOW 161.650
FM HIGH 163.275
[ADJ]
[NRM]
[LOAD]
Adjustment
items
[WRITE]
• ADJUSMENT SOFTWARE SCREEN
<For the IC-A220>
CH No.
Frequency
(MHz)
AM LOW 118.000
AM MID 127.500
AM HIGH 136.975
FM LOW 161.650
FM HIGH 163.275
Select the adjustment channel
for each adjustment item.
*This screen is an example.
To Next Page
