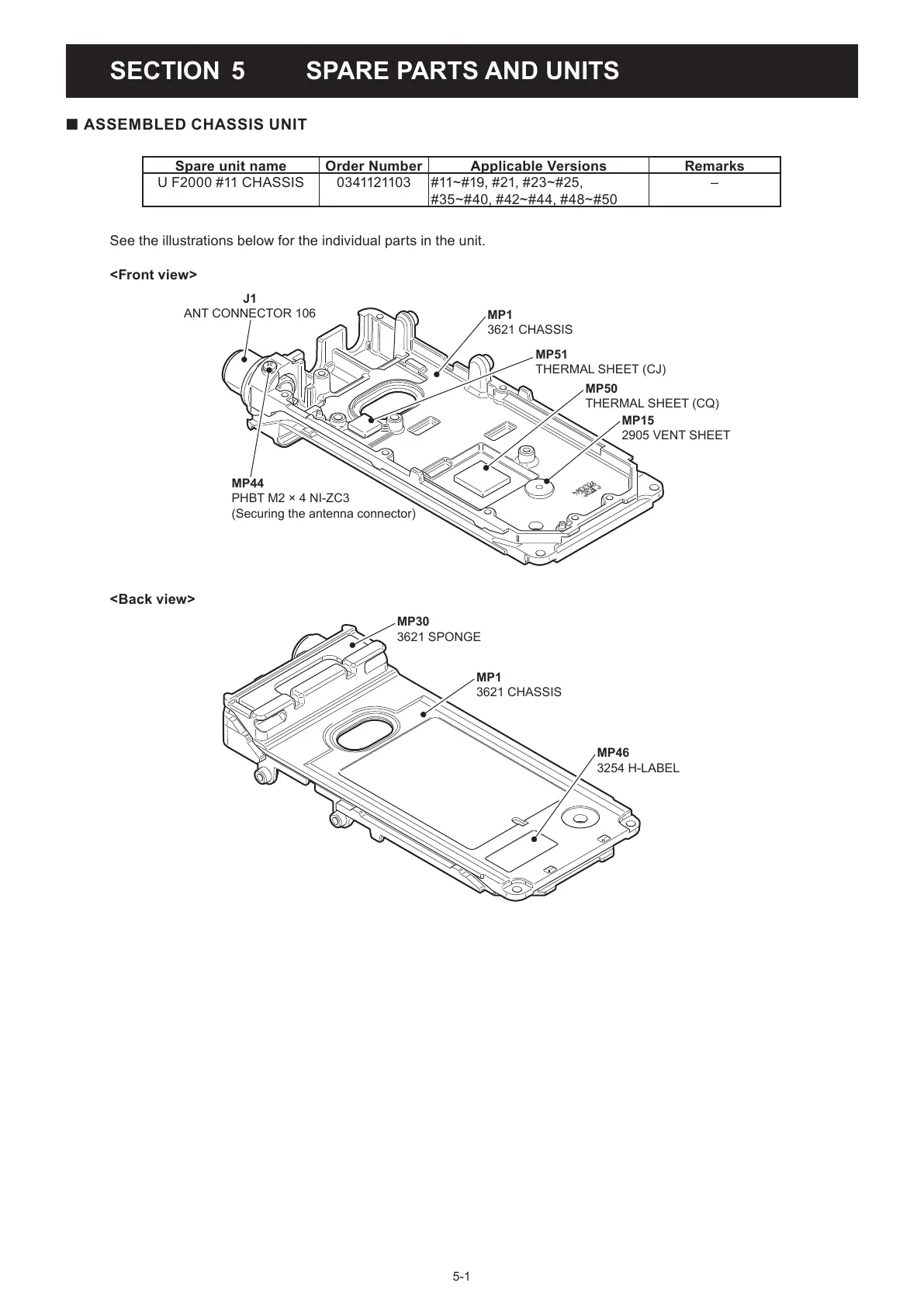

SECTION 5 SPARE PARTS AND UNITS
5-1
SECTION 5 SPARE PARTS AND UNITS
■ ASSEMBLED CHASSIS UNIT
Spare unit name Order Number Applicable Versions Remarks
U F2000 #11 CHASSIS 03 41121103 #11~#19, #21, #23~#25,
#35~#40, #42~#44, #48~#50
‒
See the illustrations below for the individual parts in the unit.
<Front view>
J1
ANT CONNECTOR 106
MP44
PHBT M2 × 4 NI-ZC3
(Securing the antenna connector)
MP51
THERMAL SHEET (CJ)
MP50
THERMAL SHEET (CQ)
MP1
3621 CHASSIS
MP15
2905 VENT SHEET
<Back view>
MP1
3621 CHASSIS
MP46
3254 H-LABEL
MP30
3621 SPONGE
