Icom IC-F50 Service Manual

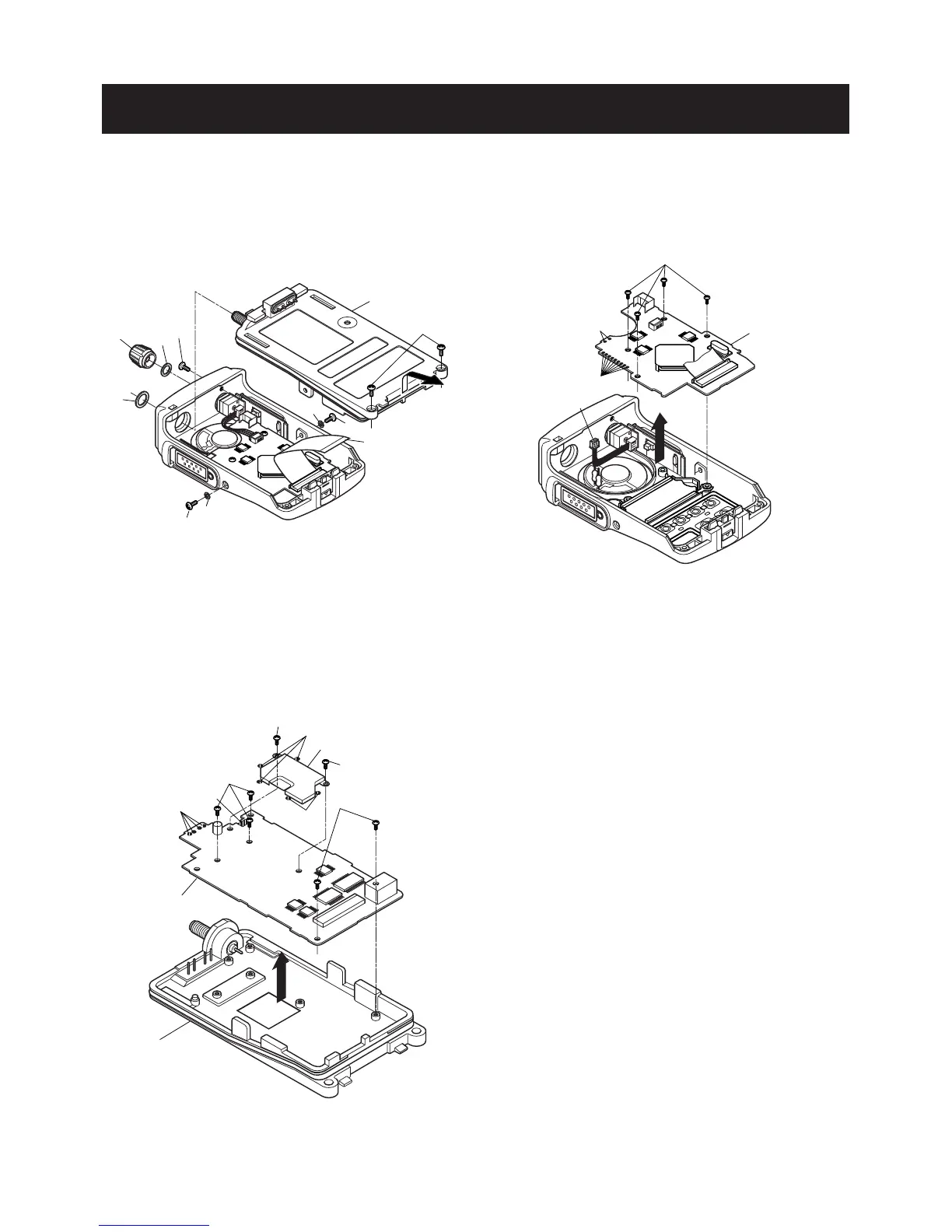

SECTION 3 DISASSEMBLY INSTRUCTIONS
3 - 1
Chassis unit
B
C
D
F
G
E
H
A
E
F
Shield cover
L
L
K
I
I
K
J
J
Main unit
Chassis unit
N
N
Front unit
M
O
•
REMOVING THE CHASSIS UNIT
1 Unscrew 1 nut A, and remove 1 knob B.
2 Remove 1 washer c, and unscrew 1 screw D.
3 Unscrew 2 screws E, and remove 2 washers F.
4 Unscrew 2 screws G.
5 Take off the chassis unit in the direction of the arrow.
6 Remove the cable H from the chassis unit.
•
REMOVING THE FRONT UNIT
1 Unscrew 4 screws M.
2 Unsolder 11 points N.
3 Unplug the connector O from J402 on the Front unit.
4 Take off the front unit in the direction of the arrow.
•
REMOVING THE MAIN UNIT
1 Unscrew 2 screws I.
2 Unsolder 5 points J, and remove the shield cover.
3 Unscrew 5 screws K.
4 Unsolder 5 points L, and take off the main unit in the
direction of the arrow.
