Icom IC-F70T Service Manual

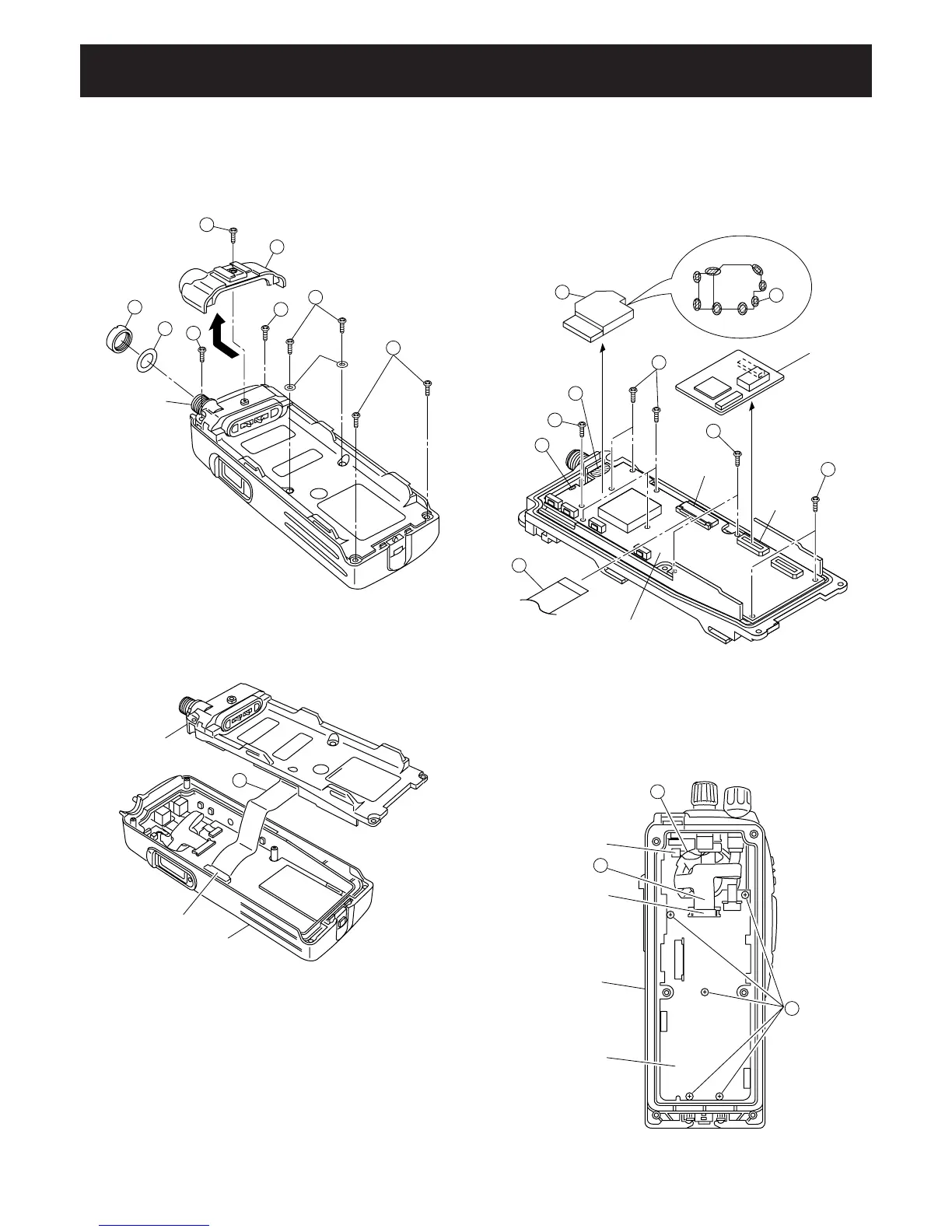

SECTION 3 DISASSEMBLY INSTRUCTIONS
• REMOVING THE CHASSIS UNIT
1 Unscrew the ANT nut A and remove the ANT washer B.
2 Unscrew the screw C, and remove the rear panel D in
the direction of the arrow.
3 Unscrew 4 screws E and 2 screws F.
• REMOVING THE MAIN UNIT
1 Disconnect the cable H from J3.
2 Remove the DSP unit from J2.
3 Unsolder 13 points I and remove the shield plate J.
4 Unscrew 10 screws K and remove the MAIN unit from the
CHASSIS.
• REMOVING THE FRONT UNIT
1 Disconnect the speaker cable L from J201.
2 Disconnect the cable M from J2.
3 Unscrew 5 screws N and remove the FRONT unit from the
front panel.
3 - 1
5 Disconnect the cable G from J1 and remove the CHASSIS
unit from the front panel.
C
E
E
E
A
B
D
F
*O-ring
* Be careful not to
lost the O-rings.
ANT
G
CHASSIS unit
Front panel
J1
K
K
K
K
J
J2
MAIN unit
DSP unit
J3
I
I
H
I
× 2
× 3
× 8
L
J201
J2
FRONT unit
Front panel
M
N
