Icom IC-F9521T User Manual

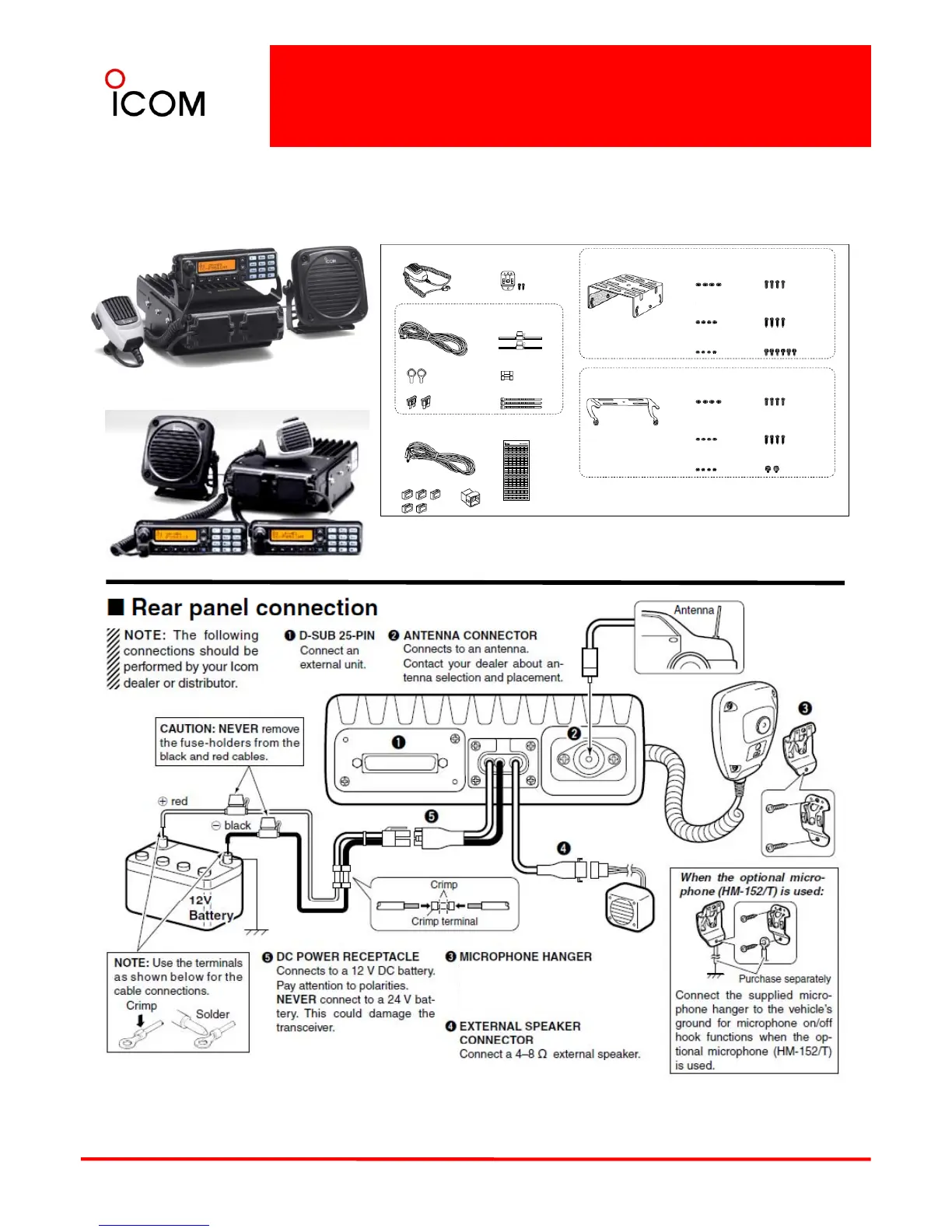

3-1 Supplied Accessories Connection
3-1-2 IC-F9511HT
 IC-F9511HT
 Supplied Accessories
Self-tapping
screws
(M5x16)
Mounting screws
(M5x12)
Microphone
Spring washers
(M5)
Black and red cables
with fuse holder
Mounting bracket for
main unit
Microphone hanger
and screw set
Flat washers
(M5)
DC power cable
Mounting screws
(M5x12)
Self-tapping screws
(M5x16)
(M5x16)
Mounting screws
(M5x12)
Socket terminals
Nuts (M5)
Bracket bolts
Mounting bracket for
controller
Flat washers
(M5)
Spring washers
(M5)
Nuts (M5)
Self-tapping screws
(M5x16)
Bracket screws
Function name s
tickers *2
Fuses *1
Separation cable
Crimp terminals
Cable ties
K
Mounting screws
(M5x12)
▼Two front panels for one box available
*1 Fuses should be installed in the fuse holder of the black and red cables, respectively.
*2 Used for labeling the programmable function keys according to their assigned
functions.
Hous
ing
Key
caps
K
ey
caps
Housing
The supplied self-grounding
microphone can be used for
microphone on/off hook functions.
15

Icom IC-F9521T Specifications

General

Frequency Range	136-174 MHz
Channel Capacity	1024 Channels
Power Output	50 W
Modulation	16K0F3E
Power Supply	13.8 V DC
Operating Temperature	-30°C to +60°C
Channel Spacing	12.5 kHz / 25 kHz
