9 - 10

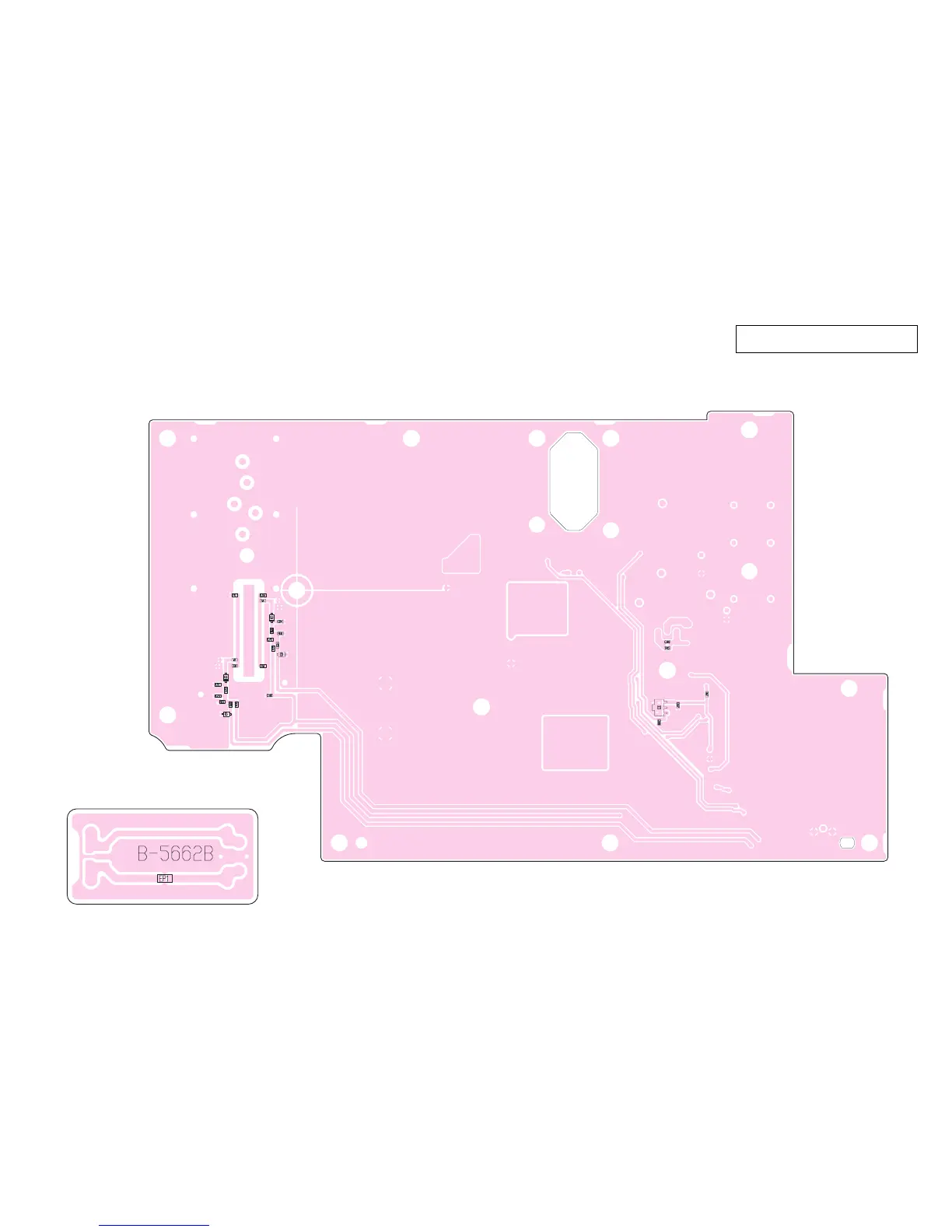

VARISTER UNIT
¡BOTTOM VIEW)
¡¡
BOTTOM VIEW
50PA UNIT
The combination of this page and the previous page
shows the unit layout in the same configuration as the
actual P.C. Board.
