Icom IC-FR3000 Service Manual

2 - 1
JACK1 unit*
FRONT unit
JACK2 unit*
TX unit
RX unit
50PA unit
REG unit
LOGIC unit*

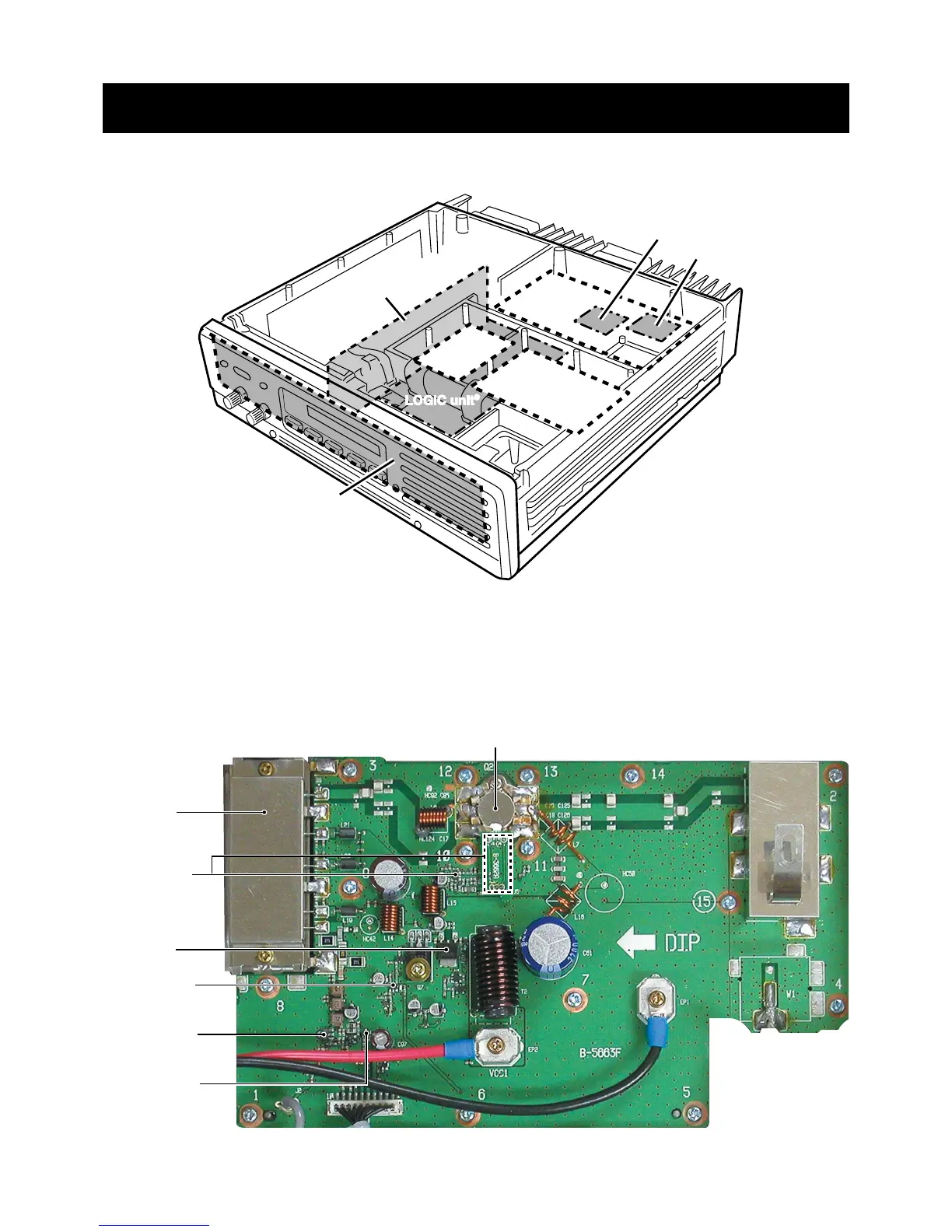

SECTION 2 INSIDE VIEWS
• BOARD LAYOUT
*: Located under side of this point.
• 50PA UNIT
Top view
Temp sensor
(IC4: NJM2107F
D1: MA29WB)
Pre-drive
(IC1: SC-1323)
Power amplifier
(Q2: 2SC3102)
+8V REG
(IC3: TA7808F)
APC amplifier
(IC2: TA75S01F)
YGR amplifier
(Q1: 3SK3475)
+9V switching
(Q5: 2SA1362)
