Icom IC-R3 Service Manual

10 - 1

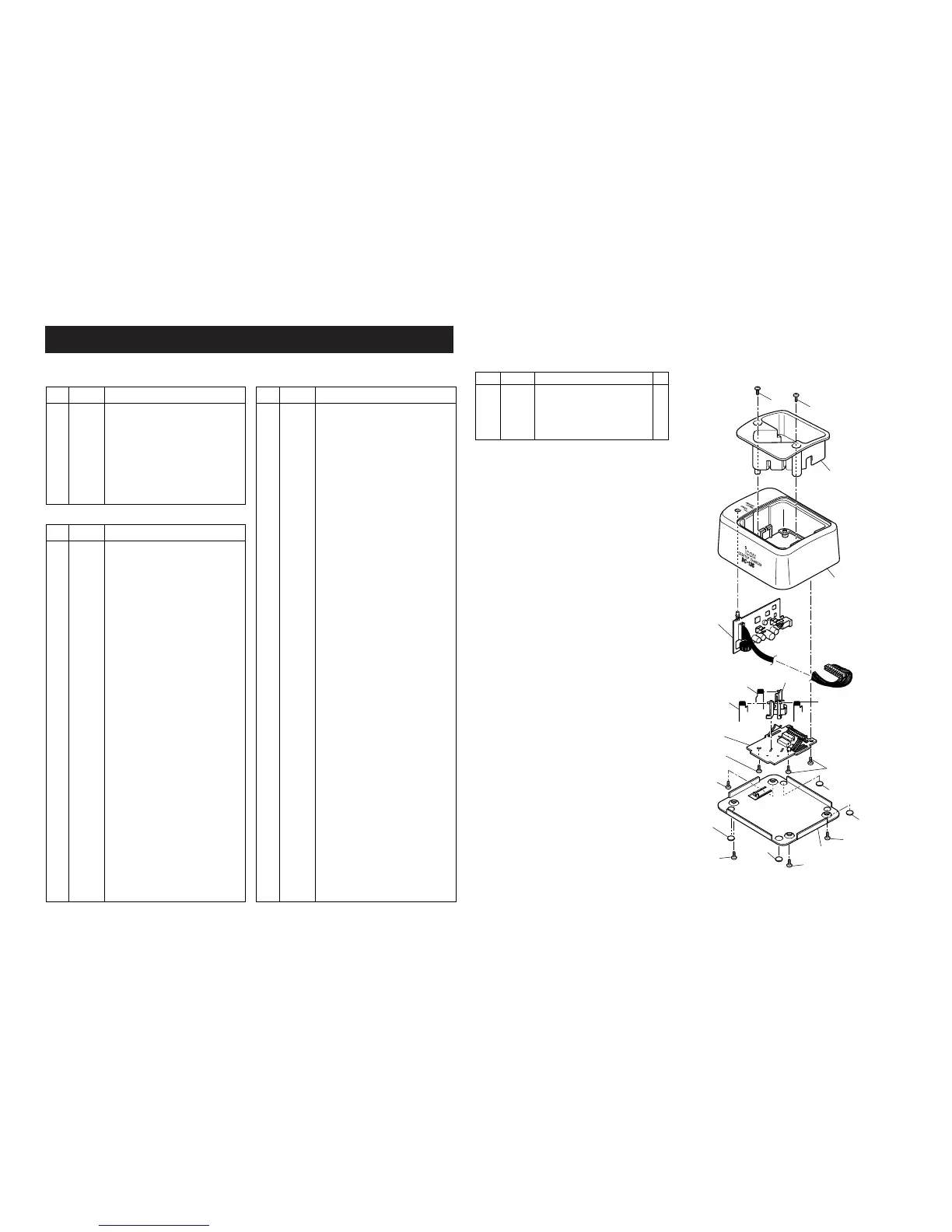

SECTION 10 BC-135 OPTIONAL DESKTOP CHARGER INFORMATION
REF. NO. ODER NO. DESCRIPTION QTY.
MP1 8930051000 2308 Holder 1
MP2 8110005800 1796 Cover 1
MP3 8810009990 Screw BT M3 x 8 ZK 9
MP4 8930039620 Leg cushion(A) 4
MP5 8930051010 2308 Terminal holder 1
MP7 8930051030 2308 B-Terminal 3
MP8 8210016640 1796 Case(D) 1
[CHASSIS PARTS]
MP1 (C)
MP5 (C)
MP7 (C)
MP3 (C)
MP3 (C)
MP7 (C)
MP4 (C)
MP2 (C)
MP3 (C)
MP3 (C)
MP3 (C)
MP3 (C)
MP8 (C)
MAIN unit
TANSHI board
MP4 (C)
MP4 (C)
MP4 (C)
MP7 (C)
MP3 (C)
MP3 (C)
10-2 DISASSEMBLY INFORMATION
ODER
NO.
D1 1710000050 DIODE 1SS53
R1 7080000160 RESISTOR RGB2L R15
R2 7510000530 THERMISTOR ERT-D2FHL 103S
C1 4010007620 CERAMIC DSXE65SJ YF 473Z
RL1 6330001630 RELAY A-5W-K
J1 6510003570 CONNECTOR S09B-EH-S
EP1 0910052472 PCB B 5425B
EP2 9001602001 TUBE IRRAX 0.7 (d) L=10 mm
[TANSHI BOARD]
REF
NO.
DESCRIPTION
ODER
NO.
IC1 1110005090 S.IC MM1433EVBE
IC2 1110004200 S.IC NJM2360M-TE3
Q1 1520000600 S.TRANSISTOR 2SB1184 TL Q
Q2 1590001870 S.TRANSISTOR DTA114EE TL
Q3 1590001440 S.TRANSISTOR UN9214 (TX)
Q4 1590001870 S.TRANSISTOR DTA114EE TL
Q5 1590001870 S.TRANSISTOR DTA114EE TL
Q6 1590001870 S.TRANSISTOR DTA114EE TL
Q7 1550000020 S.FET 2SJ377 (TE16R)
Q8 1590002310 S.TRANSISTOR DTC114EE TL
D1 1790000680 S.DIODE SB20-03P-TD
D2 1790000680 S.DIODE SB20-03P-TD
D3 1790001250 S.DIODE MA2S111-(TX)
D4 1790000850 S.DIODE MA132WK (TX)
D5 1750000120 S.DIODE DWA010-TE
D6 1790000680 S.DIODE SB20-03P-TD
L1 6190001150 COIL HK-08S050-2010
R2 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 ‰)
R3 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 ‰)
R5 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 k‰)
R6 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 k‰)
R9 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 k‰)
R11 7030005690 S.RESISTOR RR0816P-123-D (12 k‰)
R12 7030006090 S.RESISTOR RR0816P-272-D (2.7 k‰)
R14 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 k‰)
R15 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 k‰)
R16 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 k‰)
R17 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 ‰)
R18 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 k‰)
R19 7030007330 S.RESISTOR ERJ1WRSJR15U (0.15 ‰)
R21 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 ‰)
R22 7030007910 S.RESISTOR RR0816R-563-D (56 k‰)
R23 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 ‰)
C1 4030009660 S.CERAMIC C1608 JF 1C 224Z-T-A
C2 4510004510 ELECTROLYTIC 25 MV 470 HC
C3 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C4 4510004590 ELECTROLYTIC 16 MV 470 HC
C5 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C6 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C7 4030009660 S.CERAMIC C1608 JF 1C 224Z-T-A
C8 4510006760 ELECTROLYTIC 20 SA 100M
C9 4030009660 S.CERAMIC C1608 JF 1C 224Z-T-A
C10 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C12 4510004590 ELECTROLYTIC 16 MV 470 HC
C13 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
[MAIN UNIT]
REF
NO.
DESCRIPTION
ODER
NO.
C14 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C15 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C16 4550000540 S.TANTALUM TESVA 1V 154M1-8L
C18 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C19 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C20 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C21 4510004640
S.ELECTROLYTIC ECEV1CA470SP
C22 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C23 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C24 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C25 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C26 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C27 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C28 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C29 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C30 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C31 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C32 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C33 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C34 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C35 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C36 4550006540 S.TANTALUM ECST1CY475R
J1 6450000410 CONNECTOR HEC0470-01-630
F1 5210000040 FUSE FGB 2A
F2 5220000020 HOLDER S-N5051
F3 5220000020 HOLDER S-N5051
DS1 5040002150 LED VRPG3349S-734
WS1 8600036620 CABLE EX2308 P01*J04MA
EP1 0910052462 PCB B 5373B
[MAIN UNIT]
REF
NO.
DESCRIPTION
S.=Surface mount
10-1 PARTS LIST
