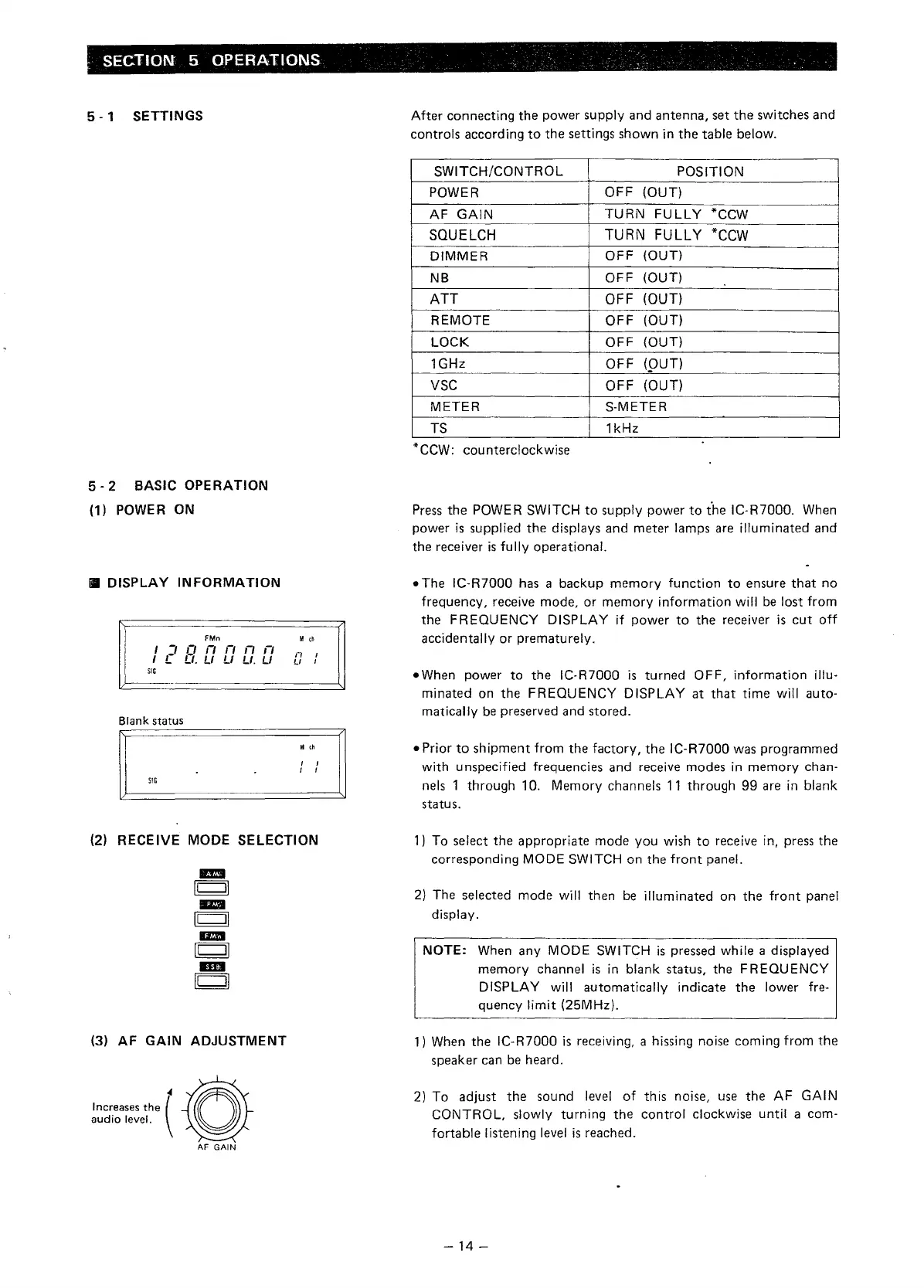

SECTION 5 OPERATIONS : . .
5- 1 SETTINGS
5-2 BASIC OPERATION
(1) POWER ON
Ill DISPLAY
INFORMATION
l
FMn
,-,,-,,-,,-,,-,,-,
I C D. Ll Ll Ll. Ll
SIC
Blank status
SIC
M <h
n '
Ll I
M <h
I I
I I
(2) RECEIVE MODE SELECTION
(3) AF GAIN ADJUSTMENT
Increases the r 0
audio level. \ ~
AF GAIN
After connecting the power supply and antenna, set the switches and
controls according
to the settings shown in the table below.
SWITCH/CONTROL POSITION
POWER
OFF (OUT)
AF GAIN
TURN FULLY *CCW
SQUELCH TURN FULLY *CCW
DIMMER
OFF
(OUT)
NB
OFF
(OUT)
ATT
OFF
(OUT)
REMOTE OFF
(OUT)
LOCK OFF
(OUT)
1GHz
OFF
(pUT)
vsc
OFF
(OUT)
METER S-METER
TS
1kHz
*CCW: counterclockwise
Press the POWER SWITCH to supply power to the IC-R7000. When
power
is supplied the displays and meter lamps are illuminated and
the receiver
is fully operational.
• The IC-R7000 has a backup memory function to ensure that no
frequency, receive mode, or memory information will be lost from
the FREQUENCY DISPLAY if power to the receiver is cut off
accidentally or prematurely.
•When power to the IC-R7000 is turned OFF, information illu-
minated on the FREQUENCY DISPLAY at that time will auto-
matically be preserved and stored.
• Prior to shipment from the factory, the I C- R7000 was programmed
with unspecified frequencies and receive modes in memory chan-
nels 1
through 10. Memory channels 11 through 99 are in blank
status.
1) To select
the appropriate mode you wish to receive in, press the
corresponding
MODE SWITCH on the front panel.
2) The selected mode will then be illuminated on the front panel
display.
NOTE: When any MODE SWITCH is pressed while a displayed
memory channel is in blank status, the FREQUENCY
DISPLAY will automatically indicate the lower fre-
quency limit (25MHz).
1) When the IC-R7000 is receiving, a hissing noise coming from the
speaker can be heard.
2)
To adjust the sound level of this noise, use the AF GAIN
CONTROL, slowly turning the control clockwise until a com-
fortable listening level is reached.
-14-
