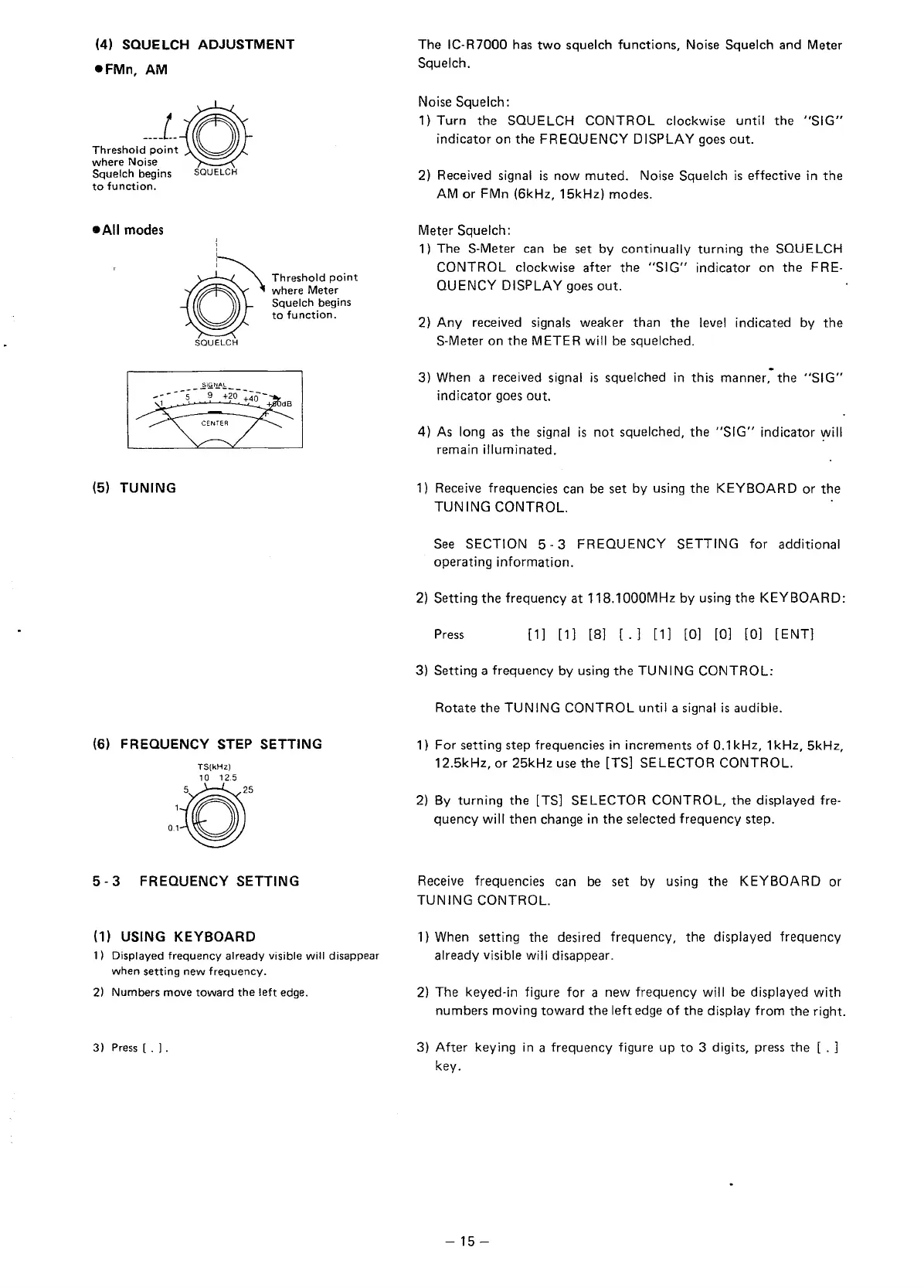

(4) SQUELCH ADJUSTMENT
•FMn, AM
____ {a
Threshold point
where Noise
Squelch begins SQUELCH
to function.
•All modes
(5) TUNING
'
'
'
0
[~ Threshold point
~ \ where Meter
Squelch begins
to function.
SQUELCH
(6) FREQUENCY STEP SETTING
TS(kHz)
10 12.5
":0"
5-3 FREQUENCY SETTING
(1) USING KEYBOARD
1) Displayed frequency already visible will disappear
when setting new frequency.
2) Numbers move toward the left edge.
3) Press [ . ] .
The IC-R7000 has two squelch functions, Noise Squelch and Meter
Squelch.
Noise Squelch:
1) Turn the SQUELCH CONTROL clockwise until the "SIG"
indicator on the FREQUENCY DISPLAY goes out.
2) Received signal is now muted. Noise Squelch is effective in the
AM or FMn (6kHz, 15kHz) modes.
Meter
Squelch:
1) The S-Meter can be set by continually turning the SQUELCH
CONTROL clockwise after the "SIG" indicator on the FRE-
QUENCY DISPLAY goes out.
2) Any received signals weaker than the level indicated by the
S-Meter on the METER will be squelched.
3) When a received signal
is squelched in this manner, the "SIG"
indicator goes out.
4) As long as the signal is not squelched, the "SIG" indicator >:Nill
remain illuminated.
1) Receive frequencies can be set by using the KEYBOARD or the
TUNING CONTROL.
See SECTION 5-3 FREQUENCY SETTING for additional
operating information.
2) Setting the frequency at 118.1000MHz by using the KEYBOARD:
Press [1] [1] [8] [ .] [1] [0] [0] [0] [ENT]
3) Setting a frequency by using the TUNING CONTROL:
Rotate the TUNING CONTROL until a signal is audible.
1)
For setting step frequencies in increments of 0.1 kHz, 1kHz, 5kHz,
12.5kHz, or 25kHz use the [TS] SELECTOR CONTROL.
2) By turning the [TS] SELECTOR CONTROL, the displayed fre-
quency will then change in the selected frequency step.
Receive frequencies can
be set by using the KEYBOARD or
TUNING CONTROL.
1) When setting the desired frequency, the displayed frequency
already visible
will disappear.
2) The keyed-in figure
for a new frequency will be displayed with
numbers moving toward the left edge of the display from the right.
3) After keying in a frequency figure up to 3 digits, press the [ . ]
key.
-15-
