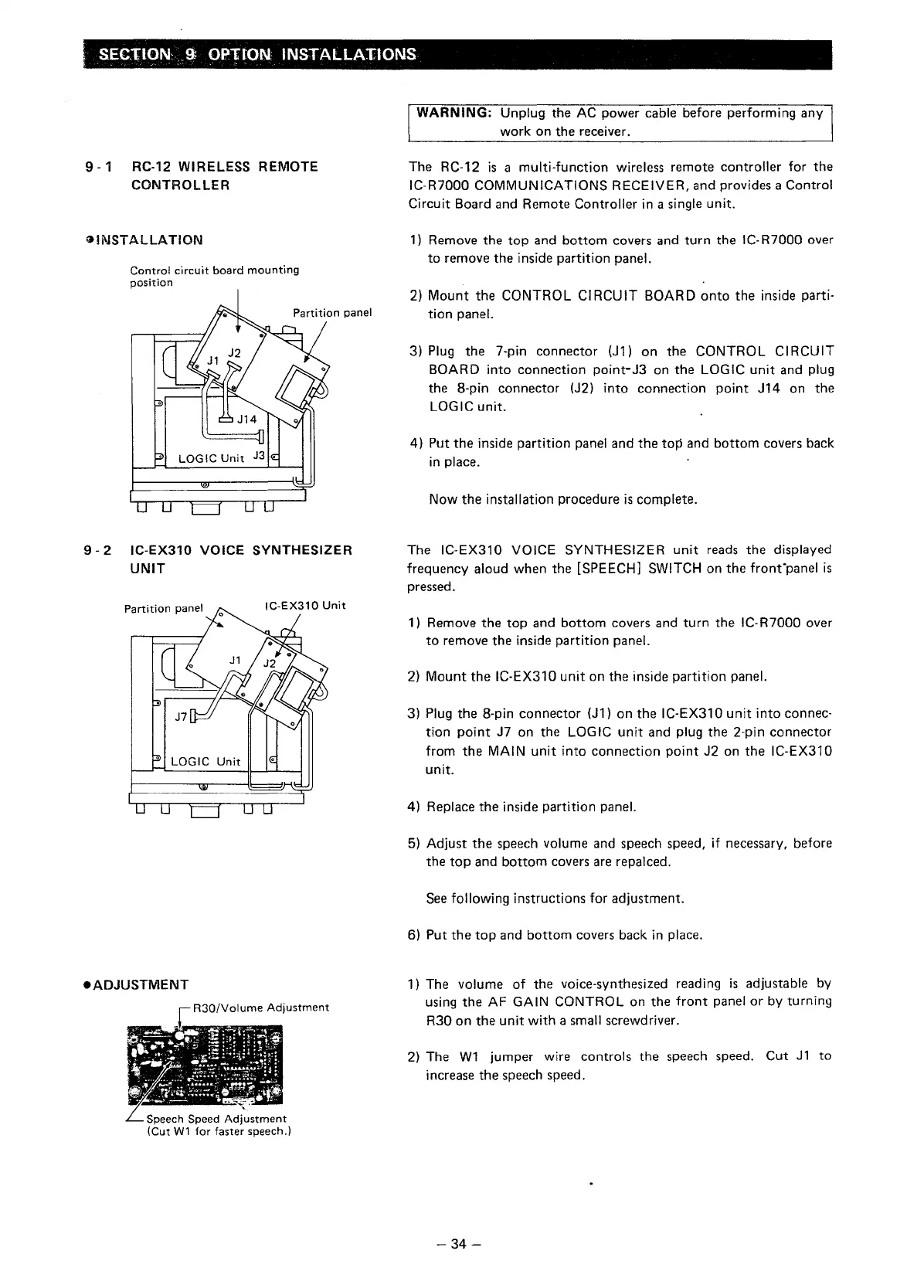

SE£.l"l~N,,
9
OPJlON
INSTALLATIONS
9-1
RC-12
WIRELESS
REMOTE
CONTROLLER
~INSTALLATION
Control
circuit
board
mounting
position
9-
2
IC-EX310
VOICE
SYNTHESIZER
UNIT
IC-EX310
Unit
•ADJUSTMENT
WARNING:
Unplug
the
AC
power
cable before
performing
any
work
on
the receiver.
The RC-12
is
a
multi-function
wireless remote
controller
for
the
IC-R7000
COMMUNICATIONS
RECEIVER,
and provides a
Control
Circuit
Board and Remote
Controller
in a single
unit.
1) Remove the
top
and
bottom
covers and
turn
the
IC·R7000
over
to
remove the inside
partition
panel.
2)
Mount
the
CONTROL
CIRCUIT
BOARD
onto
the inside parti-
tion
panel.
3) Plug the 7-pin connector
(Jl)
on
the
CONTROL
CIRCUIT
BOARD
into
connection
point-J3
on the
LOGIC
unit
and plug
the 8-pin connector (J2)
into
connection
point
J14 on the
LOGIC
unit.
4)
Put the inside
partition
panel and
the
top
and
bottom
covers back
in place.
Now
the
installation procedure
is
complete.
The
IC-EX310
VOICE
SYNTHESIZER
unit
reads
the displayed
frequency aloud when the
[SPEECH] SWITCH on the front"panel
is
pressed.
1) Remove the
top
and
bottom
covers and
turn
the IC-R7000 over
to
remove the inside
partition
panel.
2)
Mount
the IC-EX310
unit
on the inside
partition
panel.
3) Plug the 8-pin connector (J1) on
the
IC-EX310
unit
into
connec-
tion
point
J7 on the
LOGIC
unit
and plug the 2-pin connector
from
the
MAIN
unit
into
connection
point
J2 on the
IC-EX310
unit.
4)
Replace the inside
partition
panel.
5)
Adjust
the
speech volume and speech speed,
if
necessary, before
the
top
and
bottom
covers are repalced.
See
following
instructions
for
adjustment.
6)
Put
the
top
and
bottom
covers back in place.
1) The volume
of
the voice-synthesized reading
is
adjustable by
using
the
AF
GAIN
CONTROL
on the
front
panel
or
by
turning
R30 on
the
unit
with
a small screwdriver.
2) The
W1
jumper
wire
controls
the speech speed.
Cut
J 1
to
increase the speech speed.
-34-
