Icom IC-R7000 Instruction Manual

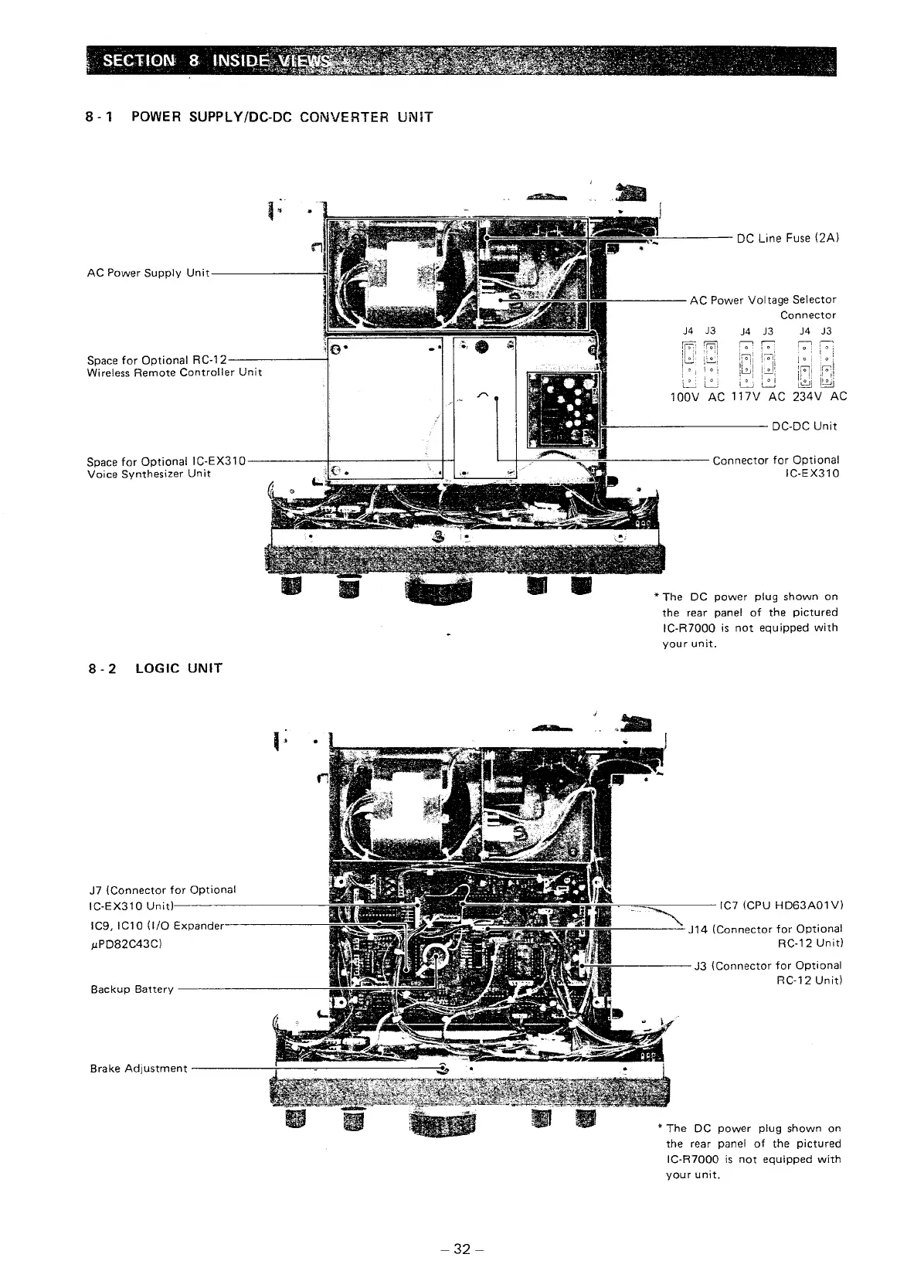

8- 1 POWER SUPPLY/DC-DC CONVERTER UNIT
AC Power Supply Unit--------
Space for Optional RC-12---------1
Wireless Remote Controller Unit
Space for Optional IC-EX310------+---------l---4
Voice Synthesizer Unit
8-2 LOGIC UNIT
J7 (Connector for Optional
IC-EX310 Unitl-----------
IC9, IC10 (1/0 Ex11i'lnrl~r-----
pPD82C43C)
Backup Battery -----------
-32-
-
!!.------DC Line Fuse (2A)
~----- AC Power Voltage Selector
J4 J3
J4 J3
~
Connector
J4 J3
r:-1 i":
'0:
!P~l
l';d
100V AC 117V AC
234V AC
-----------DC-DC Unit
-------Connector for Optional
IC-EX310
*The DC power plug shown on
the rear panel of the pictured
IC-R7000 is not equipped with
your unit.
:-------~ J14 (Connector for Optional
RC-12 Unit)
'-------- J3 (Connector for Optional
RC·12Unit)
*The DC power plug shown on
the rear panel of the pictured
IC-R7000 is not equipped with
your unit.
