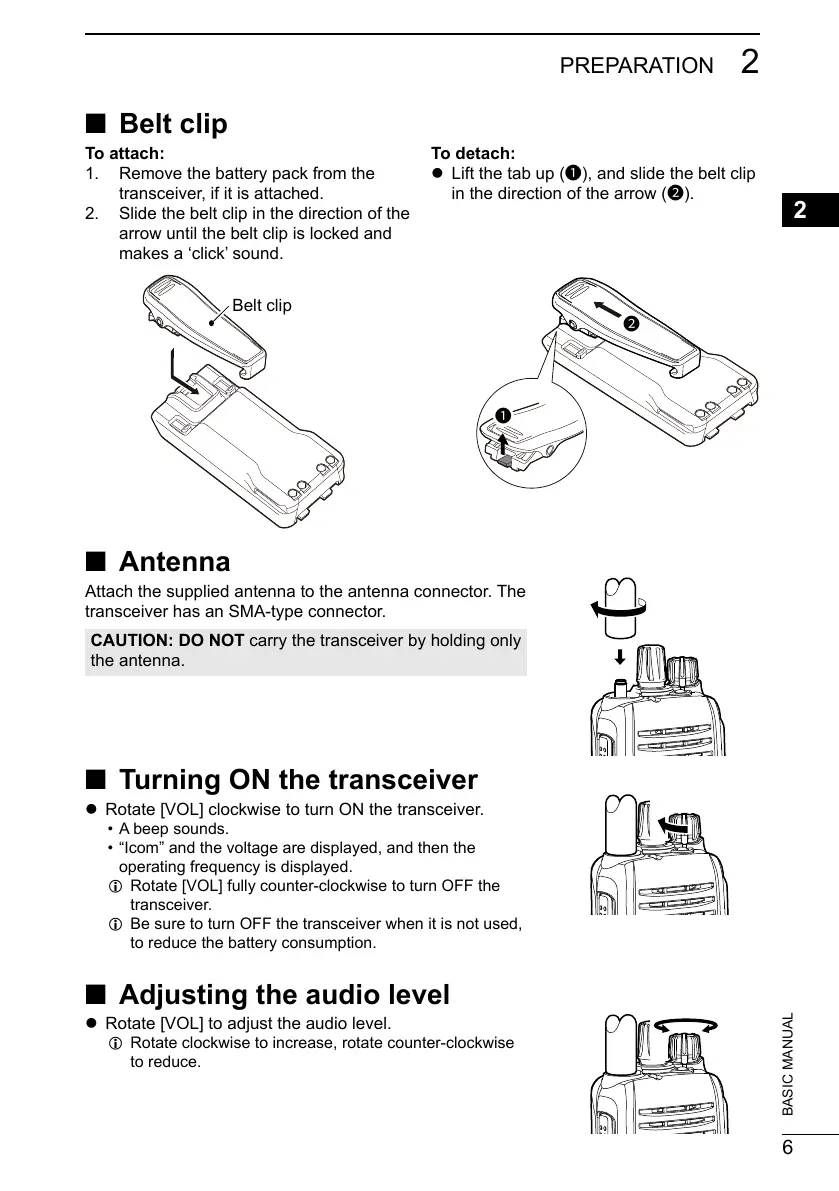

■ Antenna
Attach the supplied antenna to the antenna connector. The
transceiver has an SMA-type connector.
■ Belt clip
To attach:
1. Remove the battery pack from the
transceiver, if it is attached.
2. Slide the belt clip in the direction of the
arrow until the belt clip is locked and
makes a ‘click’ sound.
CAUTION: DO NOT carry the transceiver by holding only
the antenna.
Belt clip
To detach:
z Lift the tab up (1), and slide the belt clip
in the direction of the arrow (2).
1
2
■ Turning ON the transceiver
z Rotate [VOL] clockwise to turn ON the transceiver.
• A beep sounds.
• “Icom” and the voltage are displayed, and then the
operating frequency is displayed.
L Rotate [VOL] fully counter-clockwise to turn OFF the
transceiver.
L Be sure to turn OFF the transceiver when it is not used,
to reduce the battery consumption.
■ Adjusting the audio level
z Rotate [VOL] to adjust the audio level.
L Rotate clockwise to increase, rotate counter-clockwise
to reduce.
