■ Scan operation
D Full/programmed scan
FULL SCAN: Repeatedly scans all frequencies over an
entire band (the 144 MHz band or the 430(440) MHz band).
PROGRAMMED SCAN: Repeatedly scans between two
user-programmed frequencies. Used for checking for fre-
quencies within a specified range such as repeater output
frequencies, etc. Four pairs of scan edges are available.
4
ADVANCED FUNCTIONS
18
➀ Push [VFO] to select VFO mode.
➁ Push [(BAND)SCAN] for 1 sec.; then, while continuing to
push [
(BAND)SCAN], rotate the tuning dial to select the
desired scan range.
➥ The following scan ranges are selectable:
• “ALL 144” for full scan on the 144 MHz band.
• “ALL 430” or “ALL 440” for full scan on the 430(440) MHz
band.
• “PROG 1” to “PROG 4” for one of the programmed scans.
➥ After releasing [(BAND)SCAN] the selected scan starts.
➥ To activate the previously selected scan, dial rotation is
not necessary—just push [
(BAND)SCAN] for 1 sec.
➥ During scan, the following can be changed:
• Scan range using [(BAND)SCAN], with/without [DIAL].
• Scan direction using [DIAL].
➂ To stop the scan, push [(VFO)CLR].
NOTE: For programmed scan, scan edges must be pro-
grammed in advance (1A/1B are programmed by default).
Program scan edges in the same manner as regular
memory channels (p. 15)
If the same frequencies are programmed into a pair of
scan edges, programmed scan edge flashes, such as
“P1,” but programmed scan does not proceed.

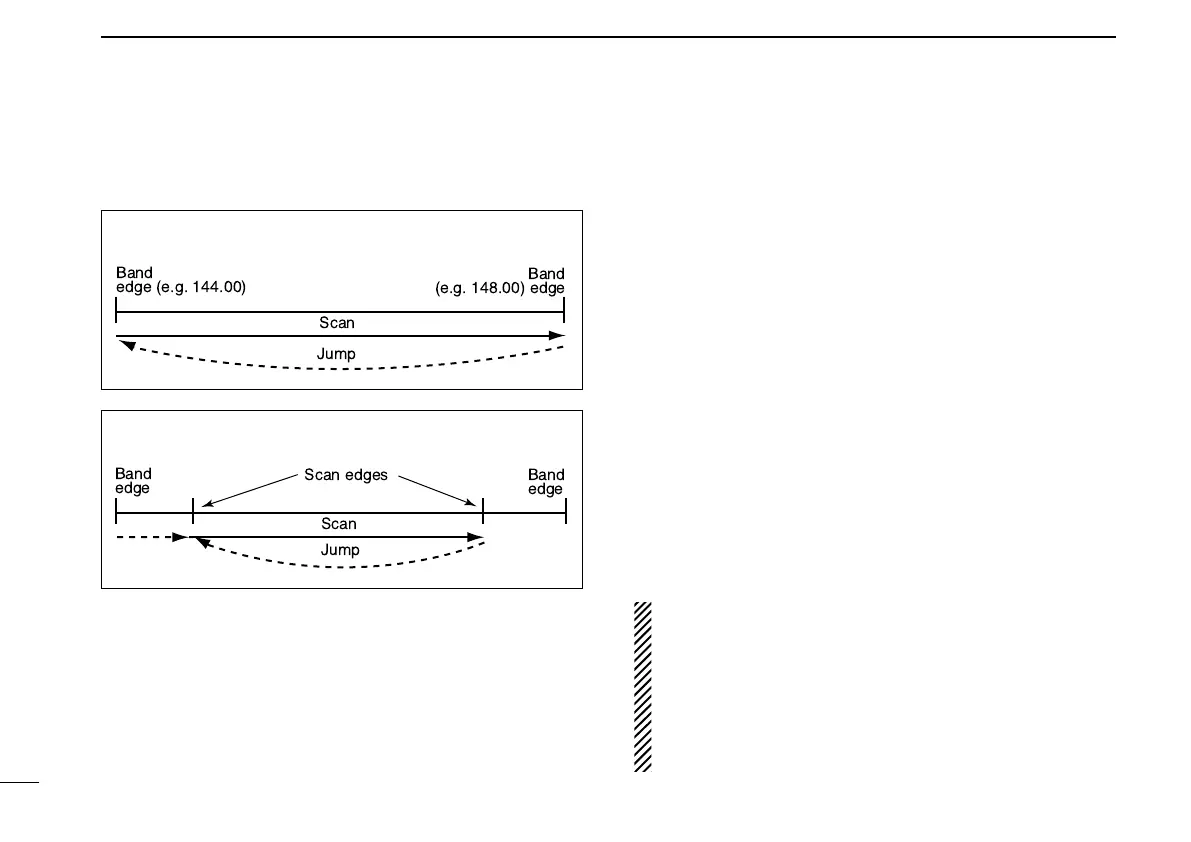

FULL SCAN
PROGRAMMED SCAN
Band
edge (e.g. 144.00)
Band
(e.g. 148.00) edge
Scan
Jump
Band
edge
Band
edge
Scan
Jump
Scan edges
IC-T7H-2.qxd 2007.07.19 4:10 PM Page 18
