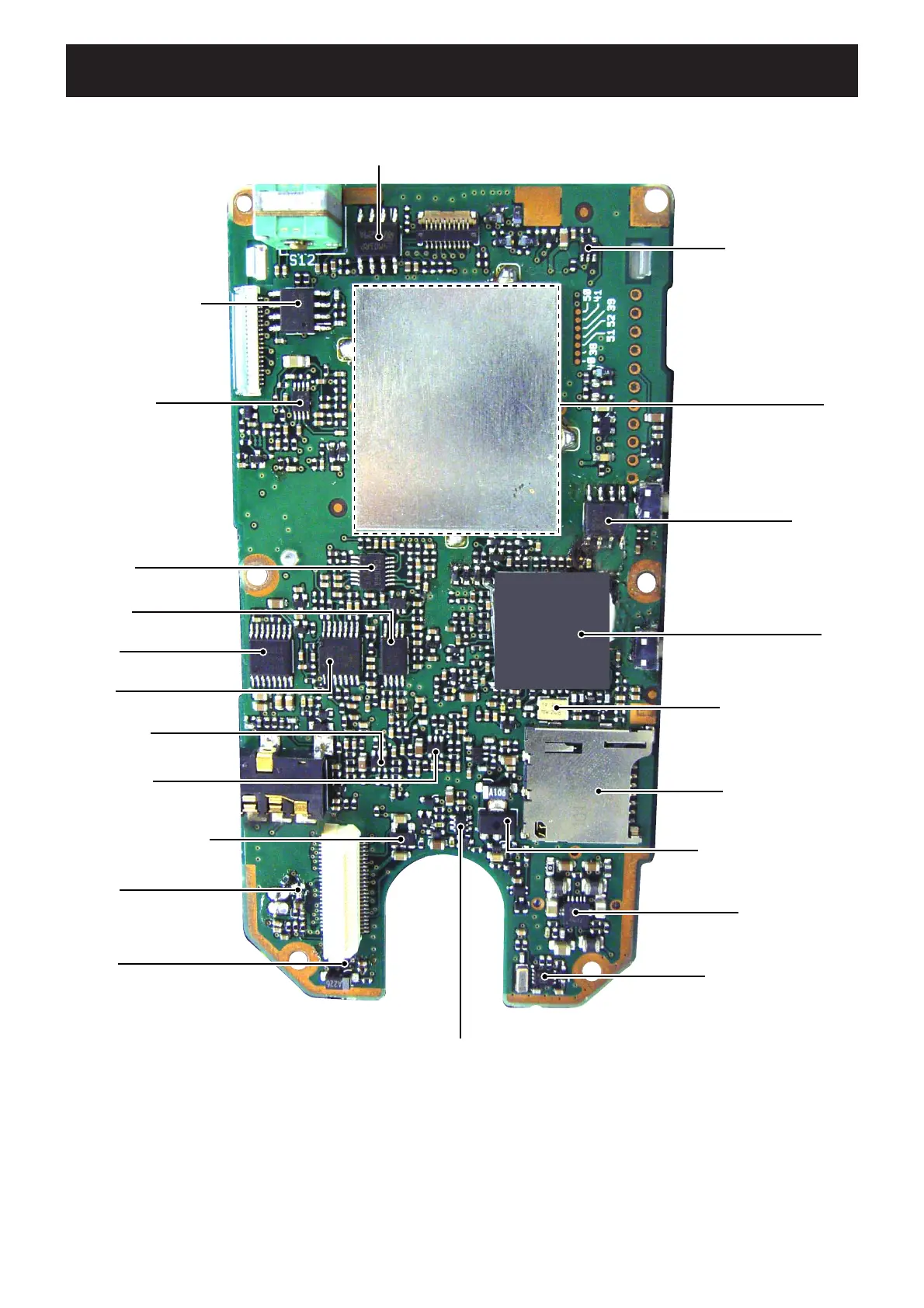

2 - 1
SECTION 2
.
INSIDE
VIEWS
DSP
• LOGIC UNIT
LEVEL CONVERTER
(IC21)
EEPROM
(IC7)
MIC SW
(Q21)
PTT SW
(Q20)
3VS LINE REGULA
T
OR
(IC12)
AF AMP
(IC2)
DSP FLASH MEMOR
Y
(IC20)
MIC MUTE SW
(IC16)
MODE SW
(IC390)
EEPROM
(IC3)
CPU
(IC5)
CLOCK OSCILLA
T
OR
(For the CPU)
(X2)
microSD CARD SLO
T
(J3)
GPS REGULA
T
OR
(IC10)
VCC LINE REGULA
T
OR
(IC4)
AF AMP
(IC300)
T
ONE FIL
TER
(Q330)
AF FIL
TER
(IC350)
CPU3 LINE REGULA
T
OR
(IC9)
T
ONE FIL
TER
(Q370)
CHARGING CONTROLLER
(IC8)
4
6
Table of Contents
Default Chapter
3
Table of Contents
3
Specifications
4
Section 2 Inside Views
5
Section 3 Disassembly Instruction
8
Circuit Description
10
Receive Circuits
10
Transmitter Circuits
14
Frequency Synthesizer Circuits
16
Main Unit
16
Port Allocations
17
Preparation
19
Frequency Adjustment
21
Transmit Adjustment
21
Receive Adjustment
29
Parts List
32
Logic Unit
40
