Icom ID-51E User Manual

2 - 3

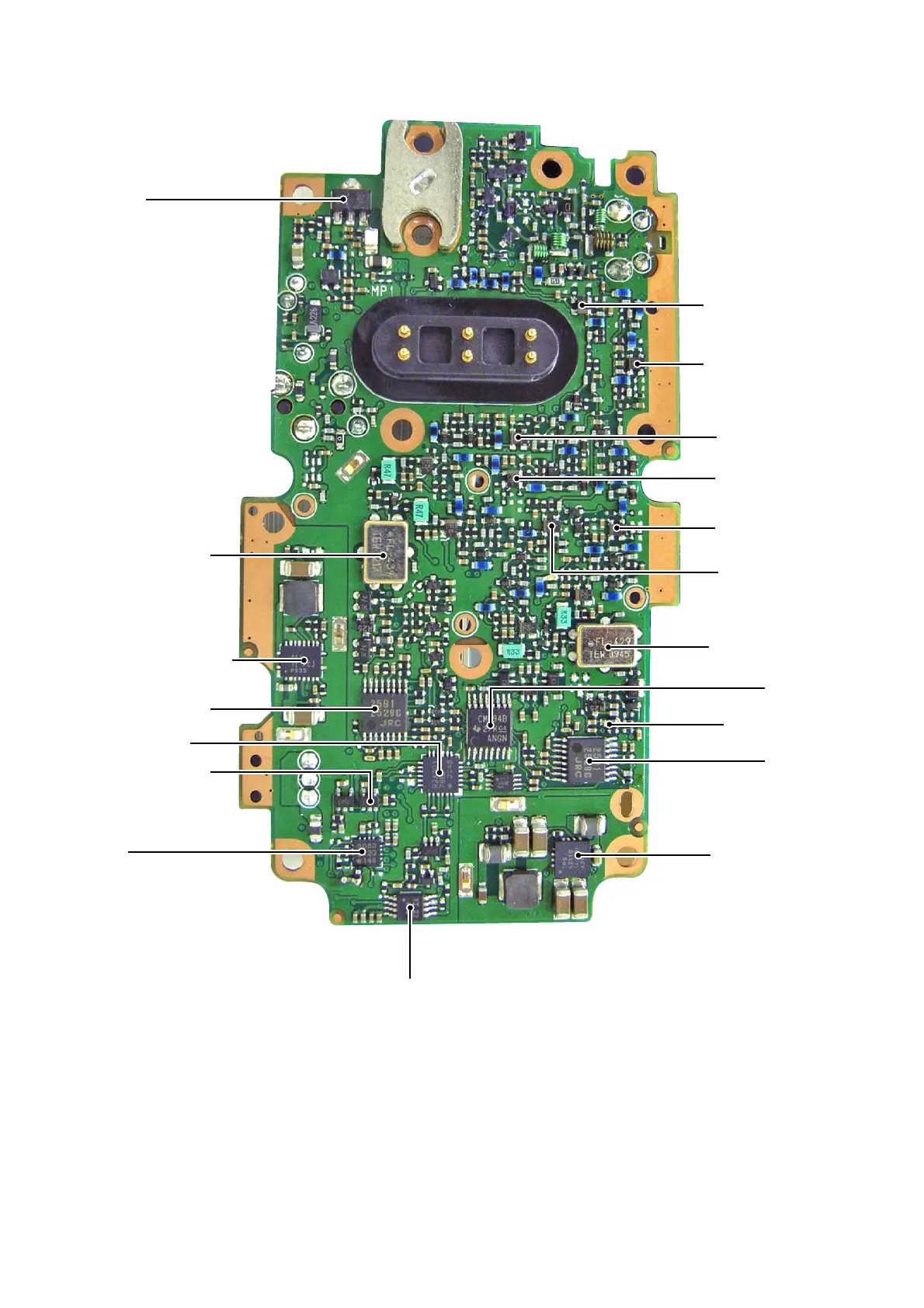

• MAIN UNIT
(BOTTOM VIEW)
UHF RF AMP (Band A/B)
(Q602)
VHF RF AMP (Band A/B)
(Q702)
5VS LINE REGULATOR
(IC4)
IF IC (Band B)
(IC901)
1ST IF AMP (Band B)
(Q901)
1ST IF FILTER (Band B)
(FI880)
UHF RF AMP (Band B)
(Q641)
VHF RF AMP (Band B)
(Q740)
UHF RF AMP (Band A)
(Q601)
VHF RF AMP (Band A)
(Q701)
AF AMP
(IC2)
PS3 LINE REGULATOR
(IC13)
CHARGING CONTROLLER
(IC8)
1ST IF FILTER (Band A)
(FI3)
DRIVE AMP
(Q41)
RADIO IC
(IC441)
IF IC (Band A)
(IC13)
RADIO AUDIO BUFFER
(IC955)
+3.3 V REGULATOR
(IC11)
