3 - 2

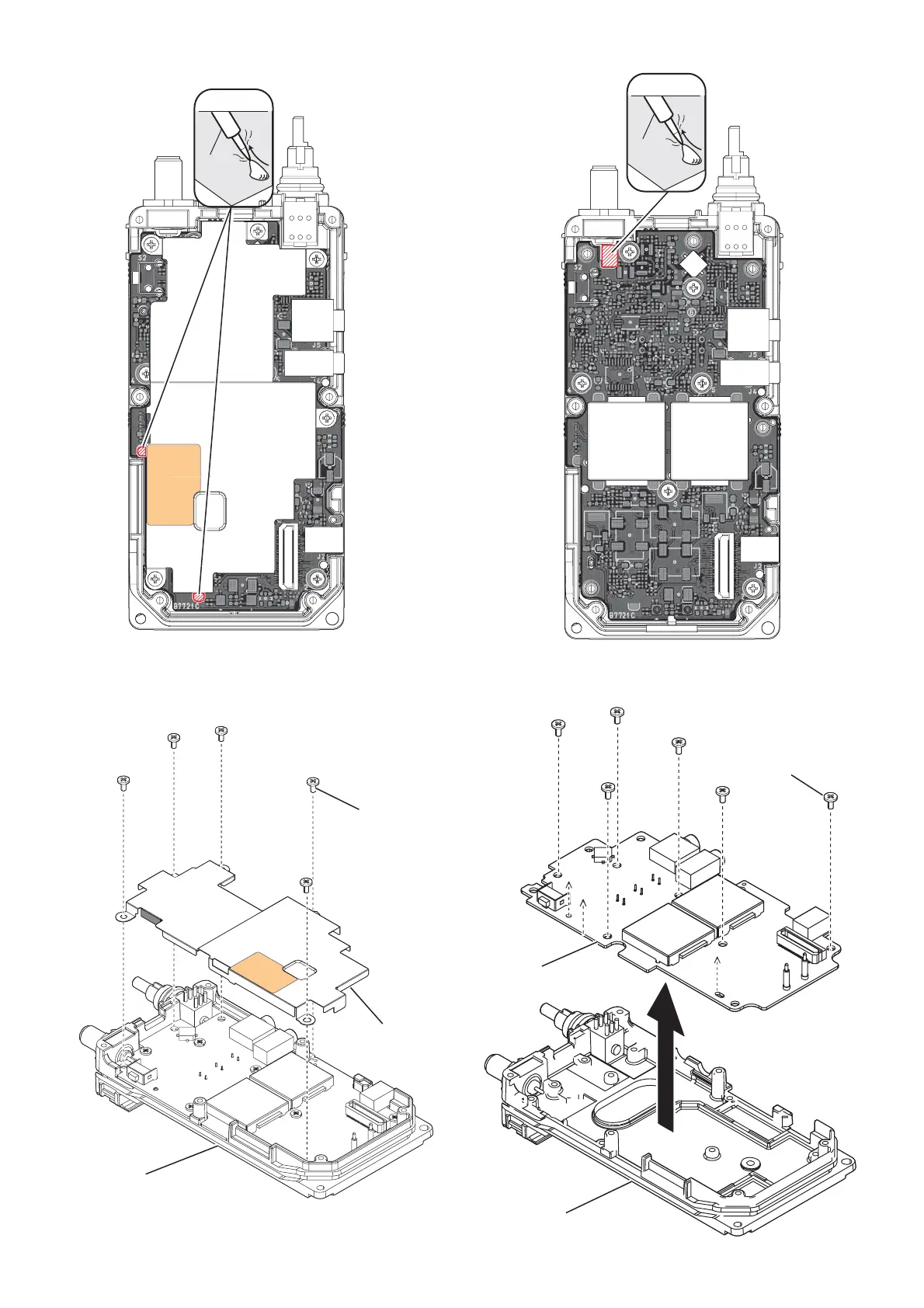

2. REMOVING THE MAIN UNIT
1) Unsolder 2 points on the shield plate.
,
)25
Shield plate
UNSOLDER
Solder
remover
,
)25
Screws x5
MAIN UNIT
Shield plate
,
)25
UNSOLDER
Solder
remover
,
)25
Screws x6
Chassis
A
IN UNIT
2) Remove 5 screws from the shield plate, and then
remove it.
3) Unsolder a point at the antenna connector.
4) Remove 6 screws from the MAIN UNIT, and then
remove the MAIN UNIT from the chassis.
