BATTERY CHARGING
n Battery chargers
NOTE: See each instruction manual for details of the char-
ger LED indication, operation, etc.

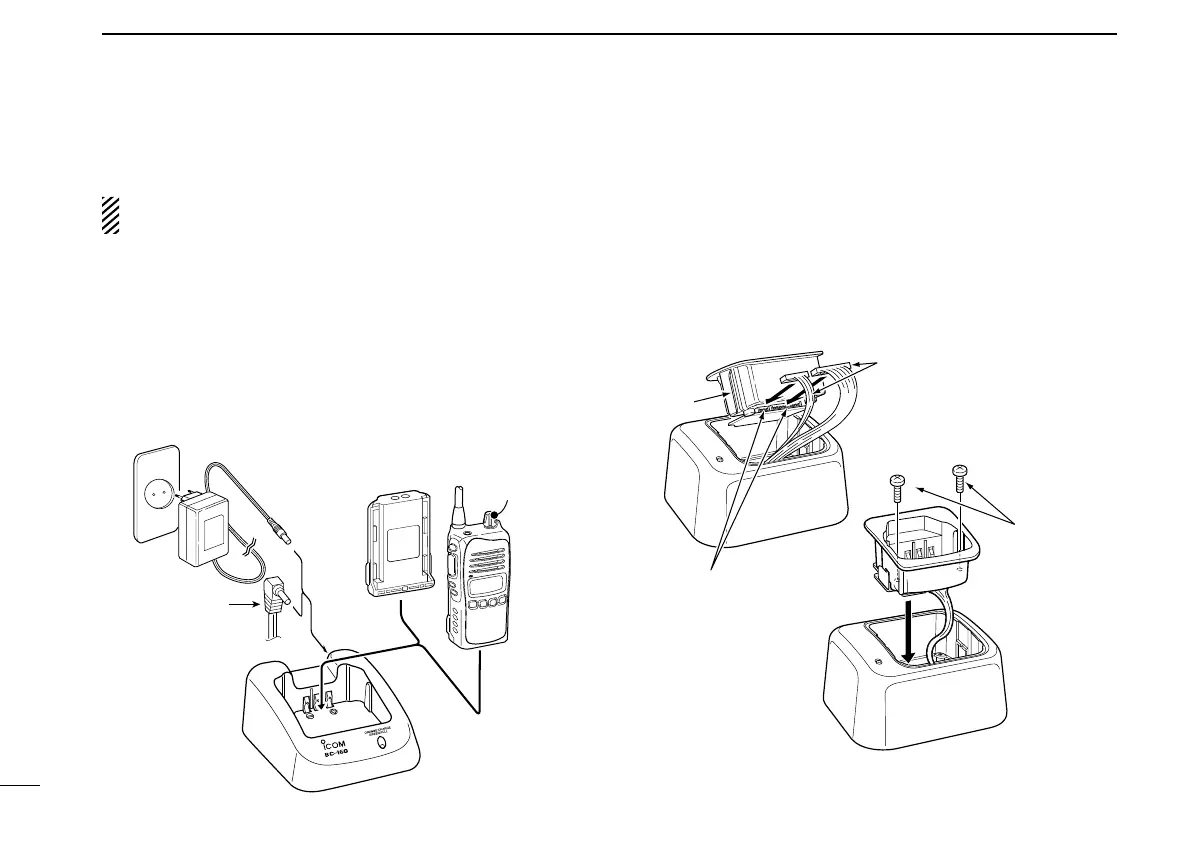

ï Rapid charging with the BC-160
The BC-160 provides rapid charging of optional Li-Ion battery
packs.
• An AC adapter (may be supplied with BC-160 depending
on version) or the DC power cable (OPC-515L/CP-17L) is
additionally required.
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
AC adapter
(A different type is
supplied, depend-
ing on the version.)
TransceiverBattery
pack
Turn power OFF
ï AD-106 installation
The AD-106 charger adapter must be installed into the BC-
119N or BC-121N before battery charging.
➥ Connect the AD-106 charger adapter and the BC-119N/
BC-121N as shown below, then install the AD-106 into the
holder space of the BC-119N or BC-121N with the sup
-
plied screws.
Screws supplied
with the charger
adapter
AD-106
Connectors
Plugs
* This illustration is described with the BC-119N.
To Next Page
