8 Optional additional placements
CXTAL1
CXTAL2
Y2
RSBHS1CSBHS1
CGDHS1
CGSHS1
RSBLS1
CSBLS1
CGDLS1
CGSLS1
RSBHS1CSBHS1
CGDHS1
CGSHS1
RSBLS1
CSBLS1
CGDLS1
CGSLS1
RSBHS1CSBHS1
CGDHS1
CGSHS1
RSBLS1
CSBLS1
CGDLS1
CGSLS1

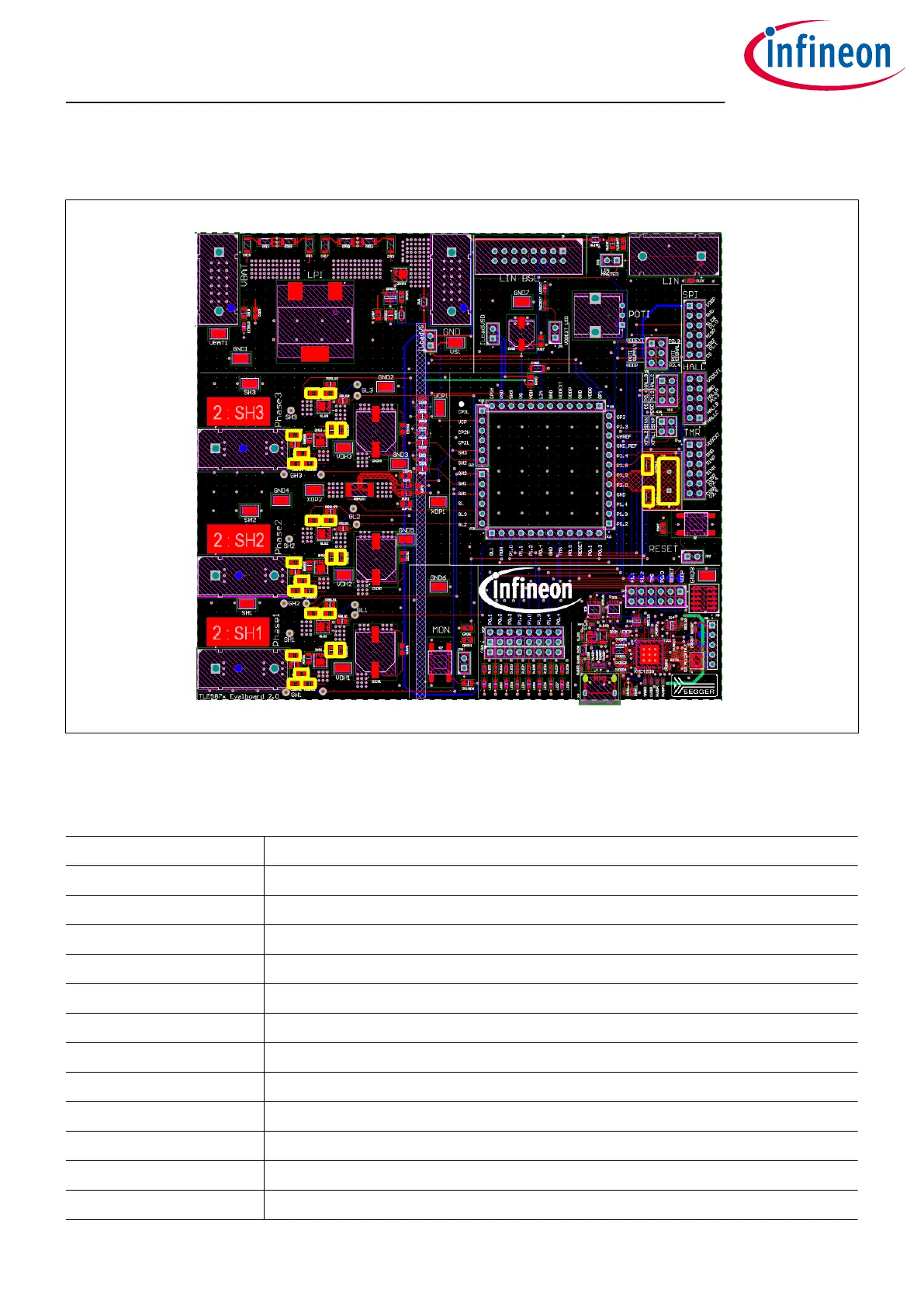

Figure 13 Additional placements' positions
Values for optional additional placements have to be determined depending on application.
Table 3 Additional placements
Component Description
Y1 External oscillator
CXTAL1 Oscillator capacitor 1
CXTAL2 Oscillator capacitor 2
RSBHS1 Resistance snubber high-side MOSFET phase 1
CSBHS1 Capacitor snubber high-side MOSFET phase 1
CGDHS1 Gate-drain capacitor high-side MOSFET phase 1
CGSHS1 Gate-source capacitor high-side MOSFET phase 1
RSBLS1 Resistance snubber low-side MOSFET phase 1
CSBLS1 Capacitor snubber low-side MOSFET phase 1
CGDLS1 Gate-drain capacitor low-side MOSFET phase 1
CGSLS1 Gate-source capacitor low-side MOSFET phase 1
RSBHS2 Resistance snubber high-side MOSFET phase 2
TLE987x EvalBoard
8 Optional additional placements
User Manual 16 v1.0
2020-07-30
