Temperature
Around
Compressor
Viscosity @ 100°F
(37.8°C)
Viscosity
Grade
°F °C SUS Centistokes ISO SAE
< 40 < 4.4 150 32 32 10
40-80 4.4-26.7 500 110 100 30
80-125 26.7-51.0 750 165 150 40
If you use a petroleum-based compressor lubricant at start-
up and decide to convert to All Season Select later on, the
pump must be decarbonized and ushed before conversion.
Contact Ingersoll Rand for more information.
GASOLINE ENGINE COMPRESSORS
NOTICE
If you will be making connections to a remote battery,
the engine on the compressor must be equipped with
an alternator.
BATTERY. A 12 volt battery with a minimum current rating of
275 CCA (cold cranking amps) and minimum ampere-hour
rating of 24 Ah should be sucient for cranking most electric
start engines.
BATTERY CABLES. Refer to the following table for size and
length recommendations.
Cable Size (GA) Maximum Length
6 5’ (1.5 m.)
4 7’-2.5” (2.1 m.)
2 12’ (3.6 m.)
CONNECTION PROCEDURES:

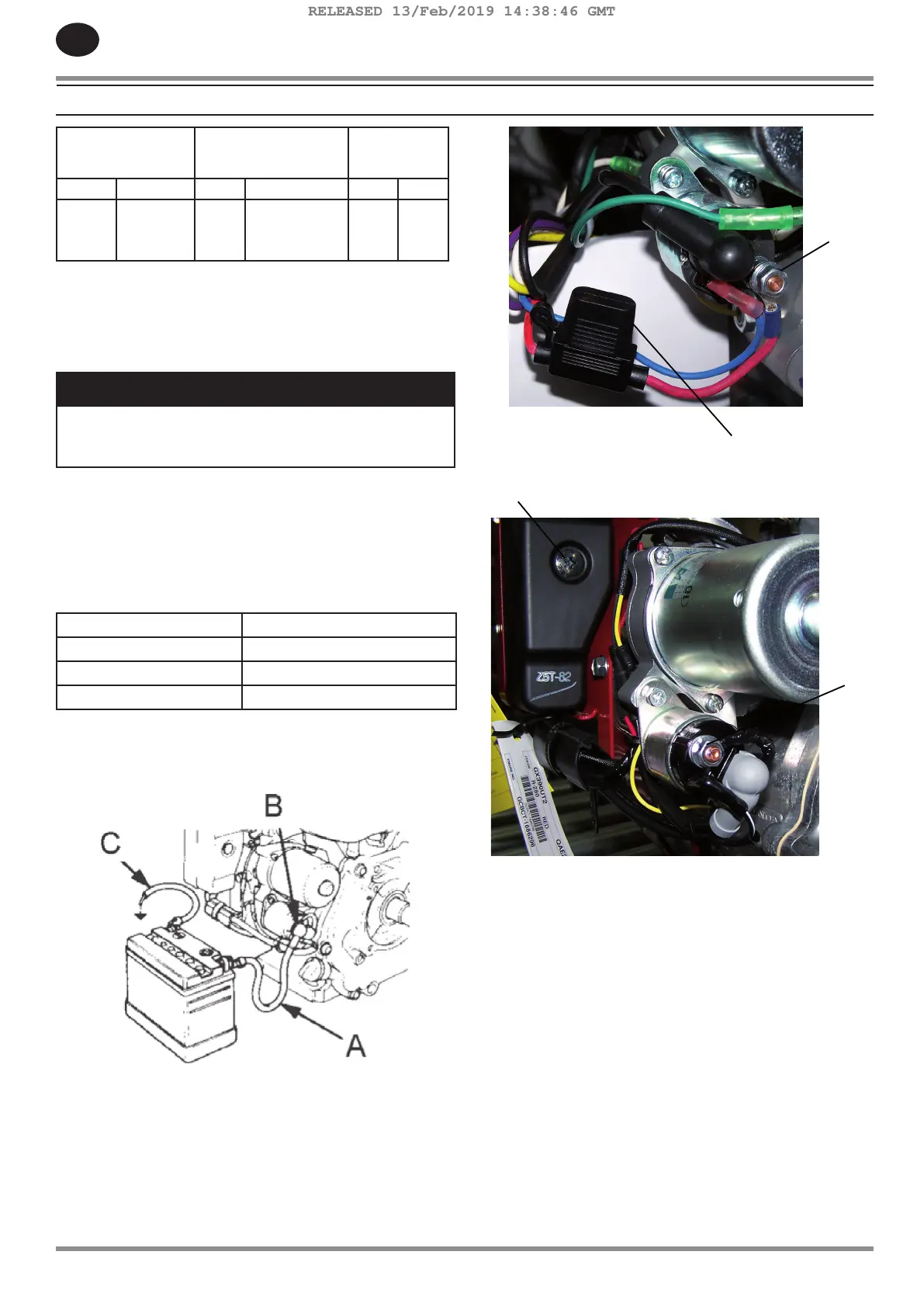

1. Connect the battery positive (+) cable (A) to the starter
solenoid terminal (B).
B
D
Kohler Engine Battery (+) Positive cable connection point
B
D
Honda Engine Battery (+) Positive cable connection point
NOTE: Circuit Fuse location at (D). Electric Start will not work
if Fuse is blown. Unit can be rope started, however will not
charge battery if Fuse is blown.
