Inovance H3U Series User Manual

3 Wiring
- 18 -
3.3 Output Wiring

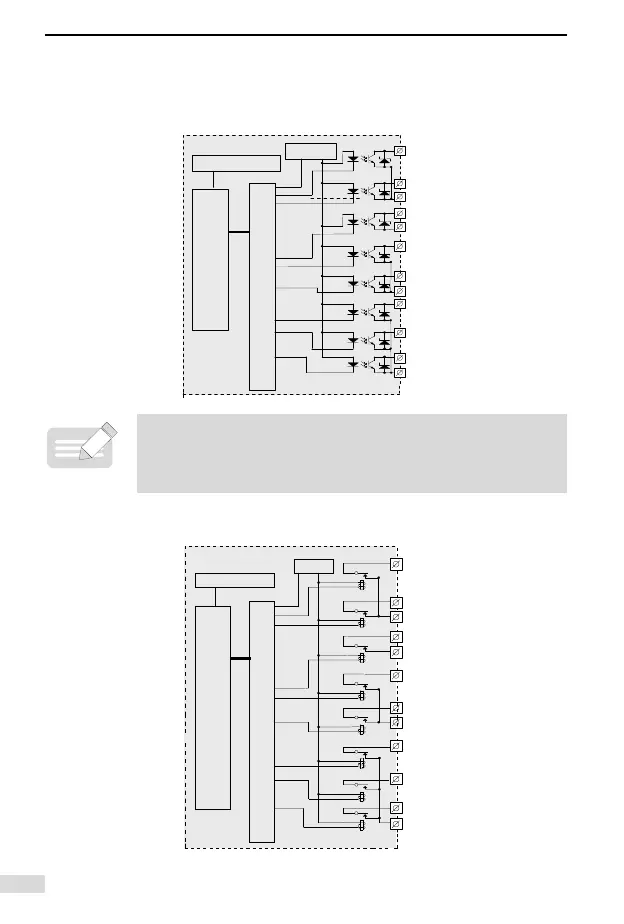

3.3.1 Normal/Hi-speed Transistor Output Wiring
DC5V Power
supply
Logic processing circuit
Working power supply of
the internal logic circuit
Y0
Y4
Y5
Equivalent circuit
in the PLC
Output driving circuit
COM0
Y1
COM3
Y6
Y7
Y2
COM1
Y3
COM2
… …
NOTE
The preceding 󶍾gure takes terminal layout of H
3U
-
1616MT/R as an example. The wiring of other models is
subject to the actual terminal layout
3.3.2 Wiring of Relay Outputs
24Vdc Power
supply
Logic processing circuit
Working power supply of the
internal logic circuit
Y0
Y4
Y5
Equivalent circuit
in the PLC
Output driving circuit
COM0
Y1
COM3
Y6
Y7
·
·
·
Y2
COM1
Y3
COM2
·
·
·
