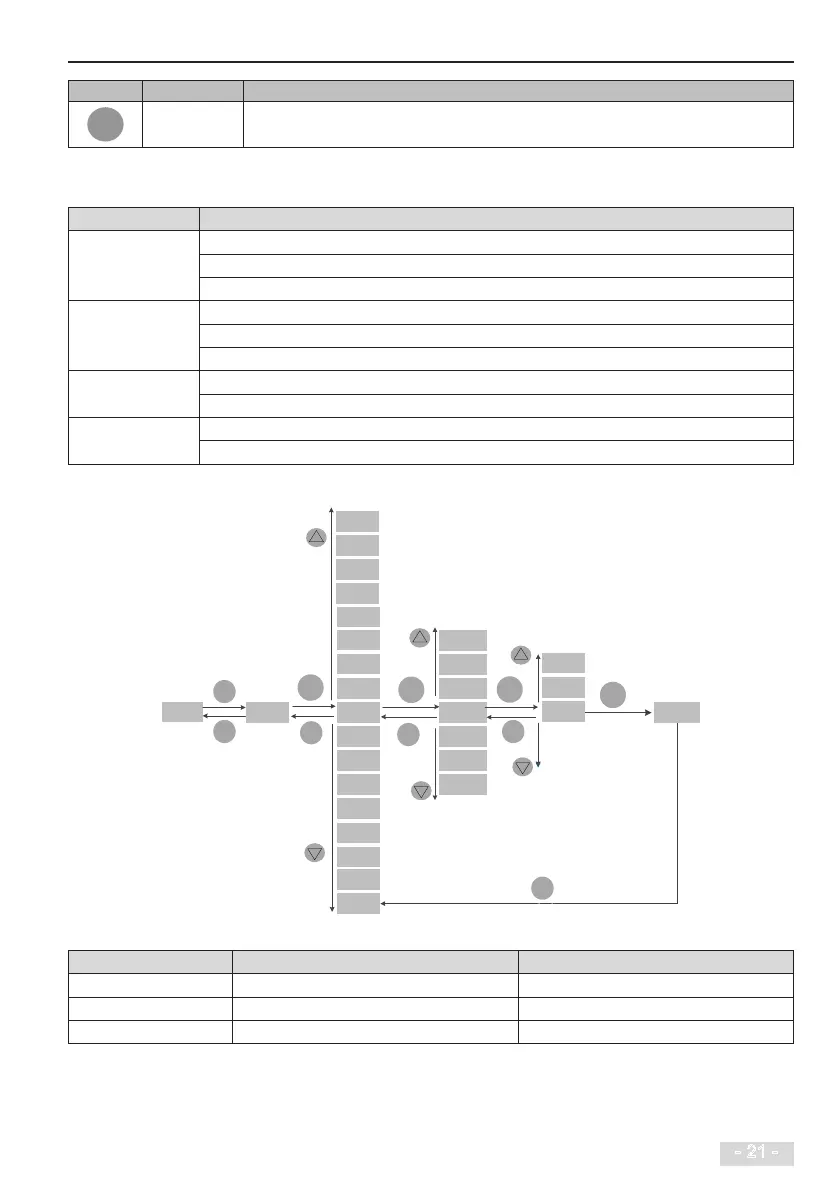

Inovance MD200 User Manual

3 Operating Panel
- 21 -
Key Key Name Function
MF.K
Multifunction
Perform a function switchover as dened by the setting of F7-01, for example to quickly switch
command source or direction.
■
Status Indicators
There are four red LED status indicators at the top of the operating panel.
Indicator Indication
RUN
ON indicates the RUNNING status.
FLASHING indicates power dip ride-through.
OFF indicates the STOP status.
REMOTE
ON indicates under terminal control.
FLASHING indicates under remote control.
OFF indicates under operating panel control.
FWD/REV
ON indicates reverse motor rotation.
OFF indicates forward motor rotation.
TUNE/TC
FLASHING indicates a fault condition on the AC drive.
OFF indicates a normal condition on the AC drive.
■
Operations of Parameters
50.00
F0 F0
F1
FP
.
.
.
A1
U0
AC
.
.
.
FP
A1
.
.
.
F0
F1
F0 02
F0 03
F0 26
.
.
.
F0 02
F0 26
.
.
.
1
2
0
F0 03
ENTER
PRG
PRG
PRG
PRG
PRG
ENTER
ENTER
ENTER
PRG
AC
U0
F0
.
.
.
■
Parameter Arrangement
Parameter Group Description Remark
F0 to FF Standard parameter group Standard function parameters
A1 to AE Advanced parameter group AI/AO correction
U0 RUNNING status parameter group Display of basic parameters
