- 54 -
2 System Commissioning
2

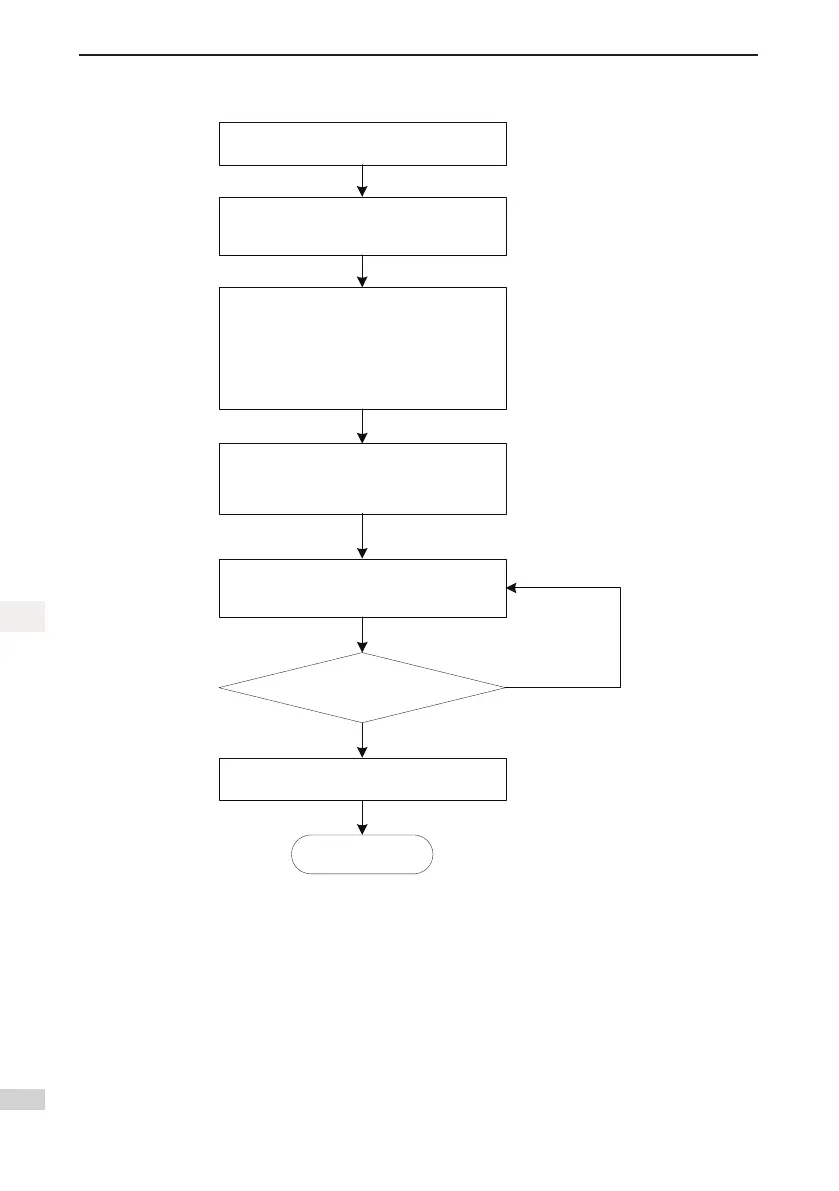

Figure 2-9 Single-oor leveling accuracy adjustment
No
Set Fr-00 to 1
Go into the car after the elevator automatically
runs to the top floor
Adjust the leveling data based on actual error:
Press the top floor button once, and the stop
position is changed 1 mm upward
Pr
ess the bottom floor button once, and the
stop position is changed 1 mm downward
Press the top floor button and bottom floor
button in the car at the same time to save the
adjustment result
Complete adjusting
all floors?
Restore Fr-00 to 0
Run the car to the next floor, and make
adjustment
Yes
End
More descriptions of the above adjustment steps are as follows:
1) Ensure that shaft auto-tuning is completed successfully, and the elevator runs properly at
normal speed.
2) After you set Fr-00 to 1, the elevator shields hall calls, automatically runs to the top oor, and
keeps the door open after arrival.
3) During adjustment, the car display board displays “00” or the value after adjustment.
Positive value: up arrow + value, negative value: down arrow + value, adjustment range:
±30 mm
4) After you save the adjustment result, the car display board displays the present oor.
5) Note that if a certain oor need not adjustment, you also need to save the data once. Otherwise,
you cannot register the car call.
