Inovance Monarch NICE300new Series User Manual

- 65 -
3 System Functions
3
Up
leveling
Down
leveling
Down
re-leveling
Up
re-leveling
H1 ≤ 20 mm
H2
H1 ≤ 20 mm
Leveling plate H0
≤ Door vane length

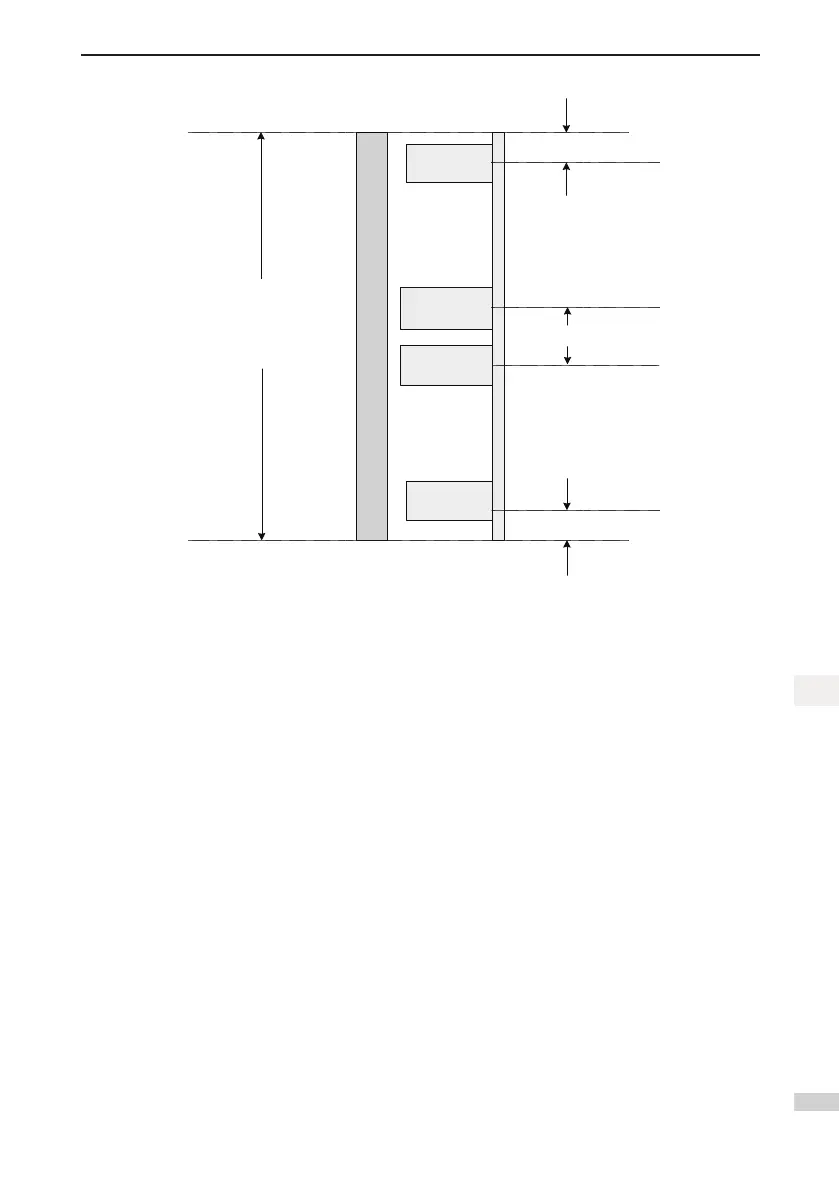

Recommended installation
of Monarch UCMP sensor
Leveling plate
The requirements for installing sensors are as follows:
1. H1 ≤ 20 mm, H2 = 60 mm
2. Leveling plate length < 300 mm. leveling plate of 300 mm is recommended.
3. Two door zone sensors are required. The length of leveling plate is determined by the actual door
open area (door vane length).
4. The door zone sensor must be a normally open type.
