Insignia NS-LCD32 Service Manual

15

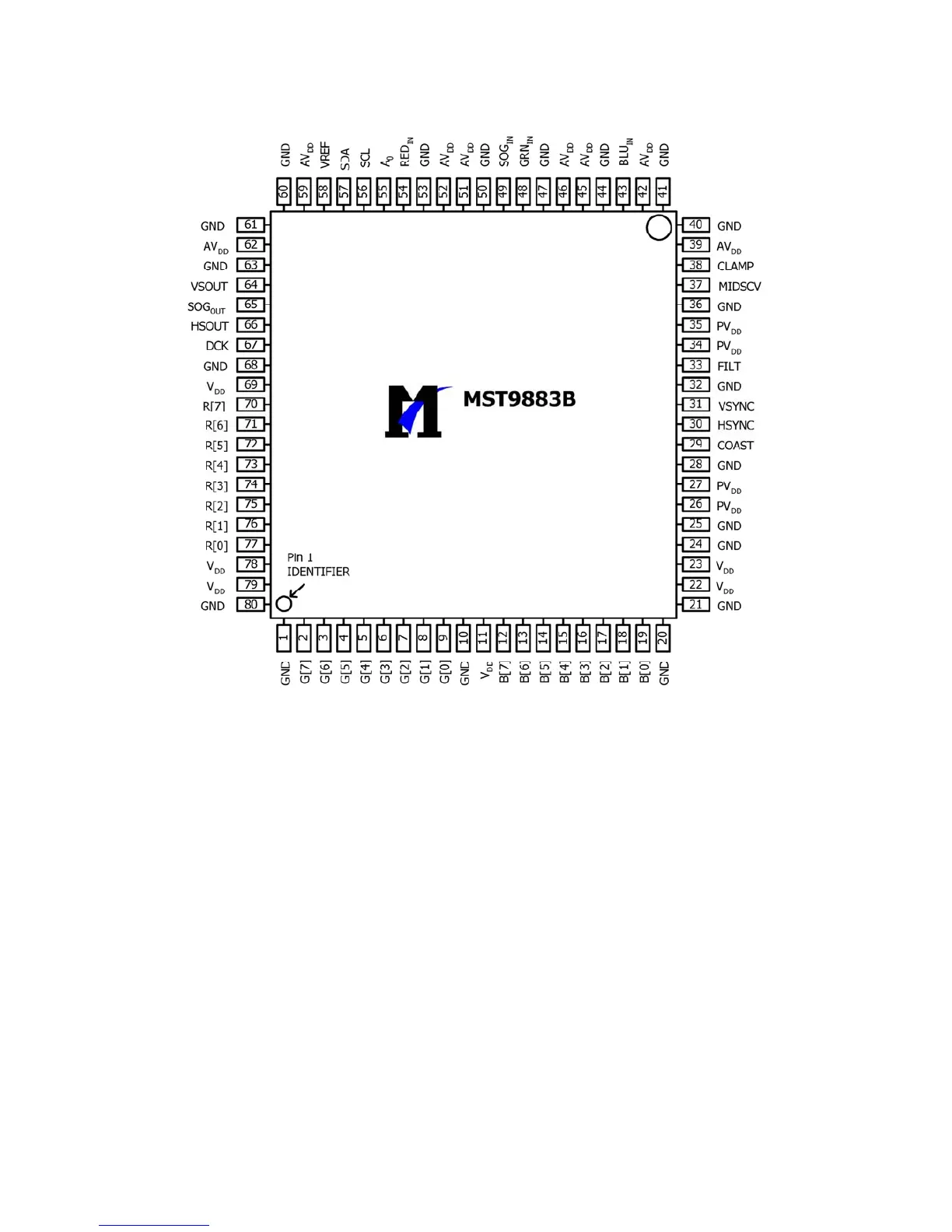

Pin configuration of MST9883:
Pin descriptions of MST9883:
54: Red analog input
48: Green analog input
43: Blue analog input
49: Sync on Green analog input
38: External Clamp Input
30: Horizontal SYNC Input
31: Vertical SYNC Input
29: Hold PLL Frequency, do not track HSYNC
56: Serial Interface clock
57: Serial Interface data pin
55: Serial interface address pin
70-77: Red output data
2-9: Green output data
12-19: Blue output data
67: Output data clock
66: HSYNC output
64: VSYNC output
39,42,45,46,51,52,59,62: Analog Power
