Intel D915GVWB User Manual

Installing and Replacing Desktop Board Components
29

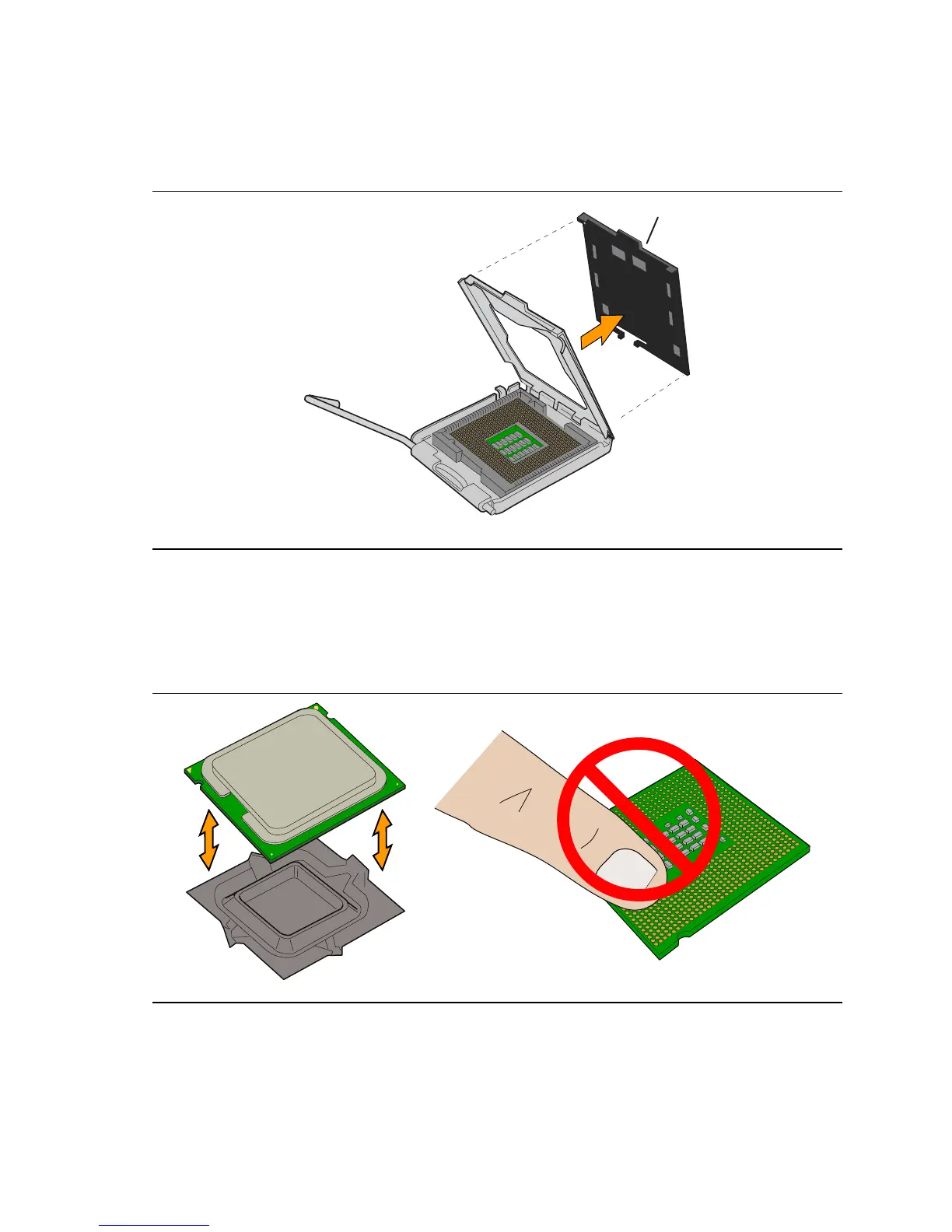

4. Remove the plastic protective socket cover from the load plate. Do not discard the protective
socket cover. Always replace the socket cover if the processor is removed from the socket (see
Figure 7, E).
OM17228
E
Figure 7. Remove the Protective Socket Cover
5. Remove the processor from the protective processor cover. Hold the processor only at the
edges, being careful not to touch the bottom of the processor. Do not discard the protective
processor cover. Always replace the processor back to the package if the processor is removed
from the socket (see Figure 8).
OM17213
Figure 8. Remove the Processor from the Protective Processor Cover/Do Not Touch

Intel D915GVWB Specifications

General

Brand	Intel
Model	D915GVWB
Category	Motherboard
Language	English
