Installing and Replacing Desktop Board Components
43
Connecting 2x12 Power Supply Cables
If you have a 2x12 power supply, follow the instruction below. Figure 22 shows the location of the
power connectors.
OM17361
2X12
1
2

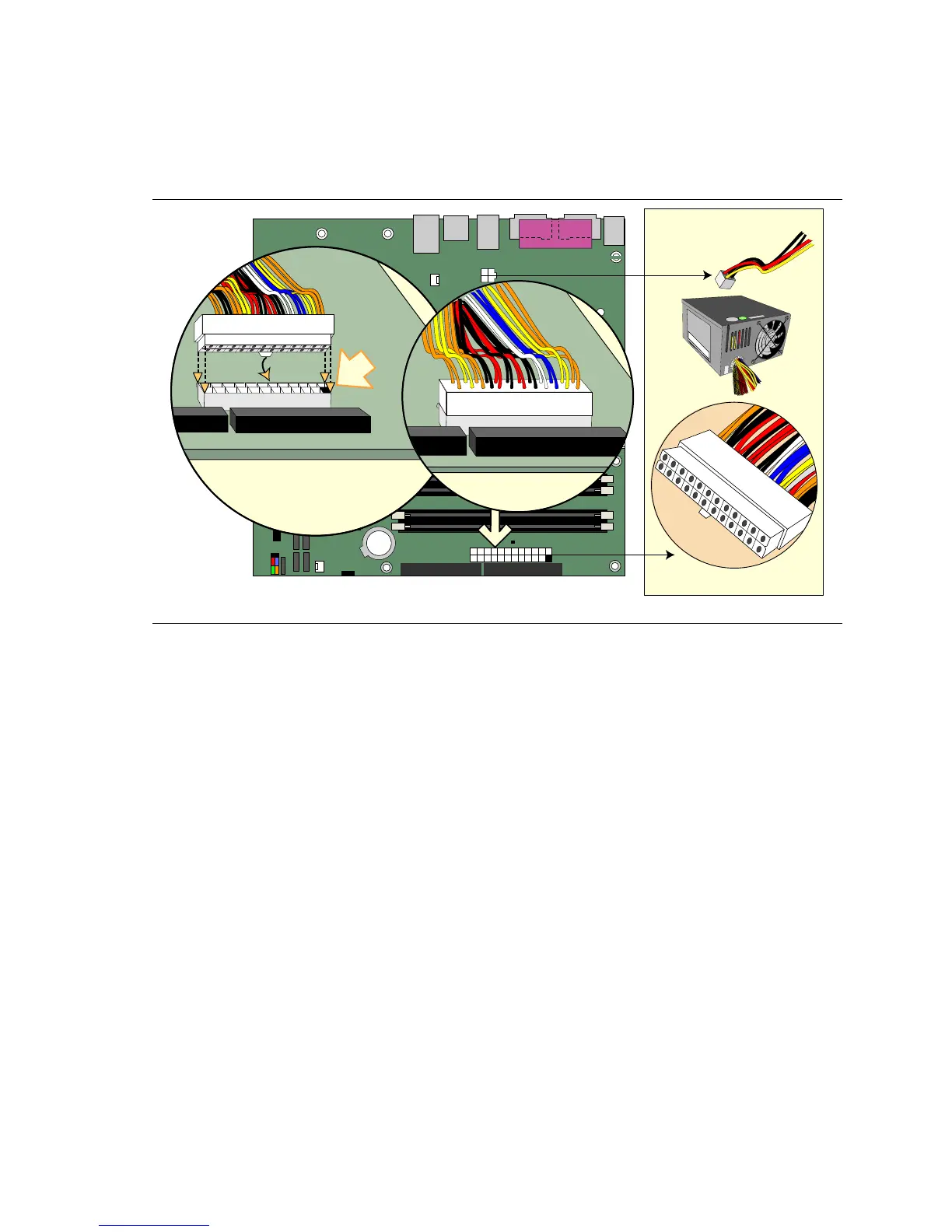

Figure 22. Connecting 2x12 Power Supply Cables
1. Observe the precautions in "Before You Begin" on page 23.
2. Connect the 12 V processor core voltage power supply cable to the 2x2 connector.
3. Connect the main power supply cable to the 2x12 connector.
