Intel Desktop Board DG45ID Technical Product Specification
28
1.9.1 Audio Subsystem Software
Audio software and drivers are available from Intel’s World Wide Web site.
For information about Refer to
Obtaining audio software and drivers Section 1.2, page 14
1.9.2 Audio Connectors and Headers
The board contains audio connectors on the back panel and audio headers on the
component side of the board. The front panel audio header provides mic in and line
out signals for the front panel. Microphone bias is supported for both the front and
back panel microphone connectors.
The front/back panel audio connectors are configurable through the audio device
drivers. The available configurable audio ports are shown in Figure 4.
Item Description
A Rear surround left/right channel audio out
B Center channel and LFE (subwoofer) audio out
C Line in / Side surround
D Line out
E Mic in
F S/PDIF Digital Audio Out (Optical)

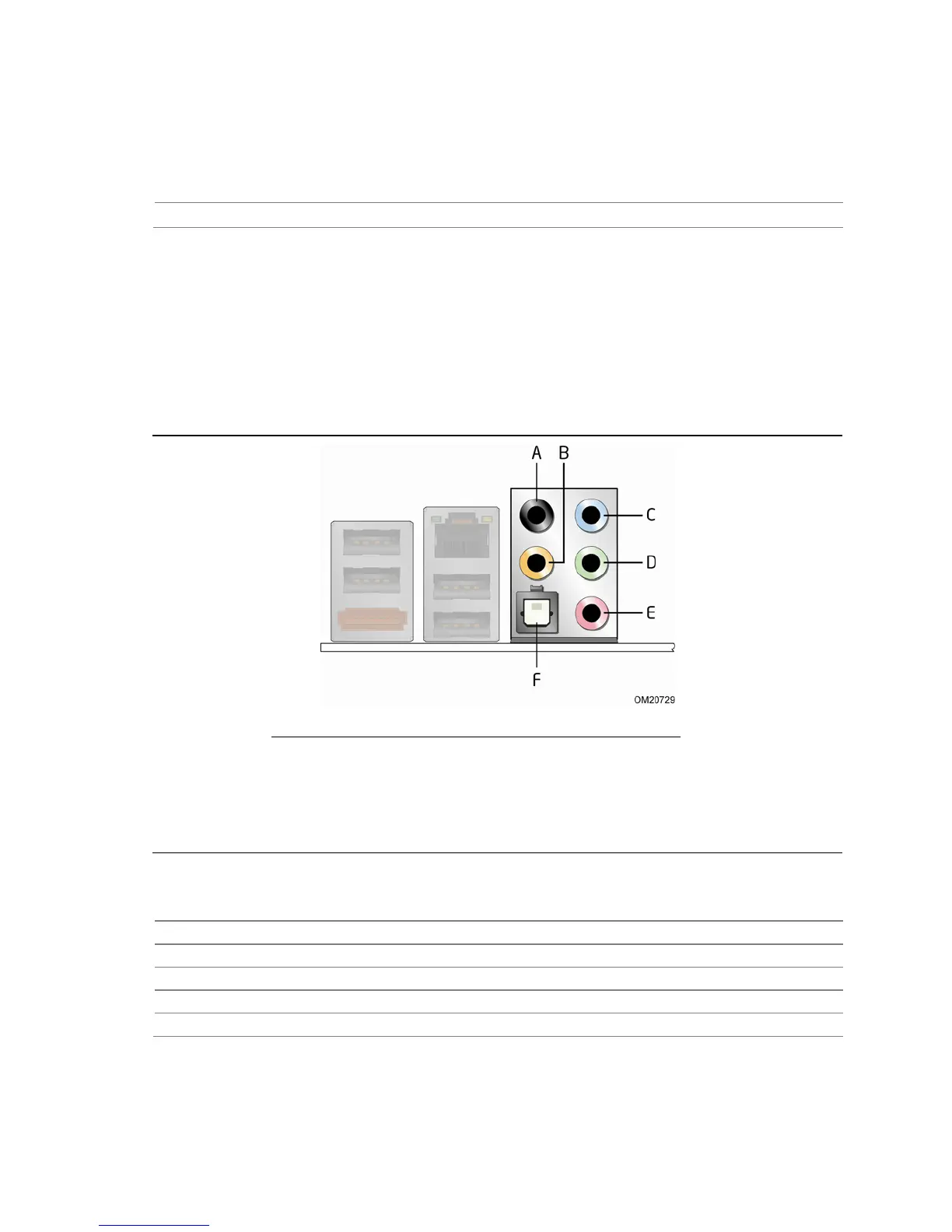

Figure 4. Back Panel Audio Connector Options
For information about Refer to
The location of the front panel audio header Figure 10, page 46
The signal names of the front panel audio header Table 14, page 48
The location of the HD Audio Link header Figure 10, page 46
The signal names of the HD Audio Link header Table 13, page 48
The back panel audio connectors Section 2.2.1, page 45
