Intel Desktop Board DZ77SL-50K Technical Product Specification
32
1.10.4
Thermal Monitoring

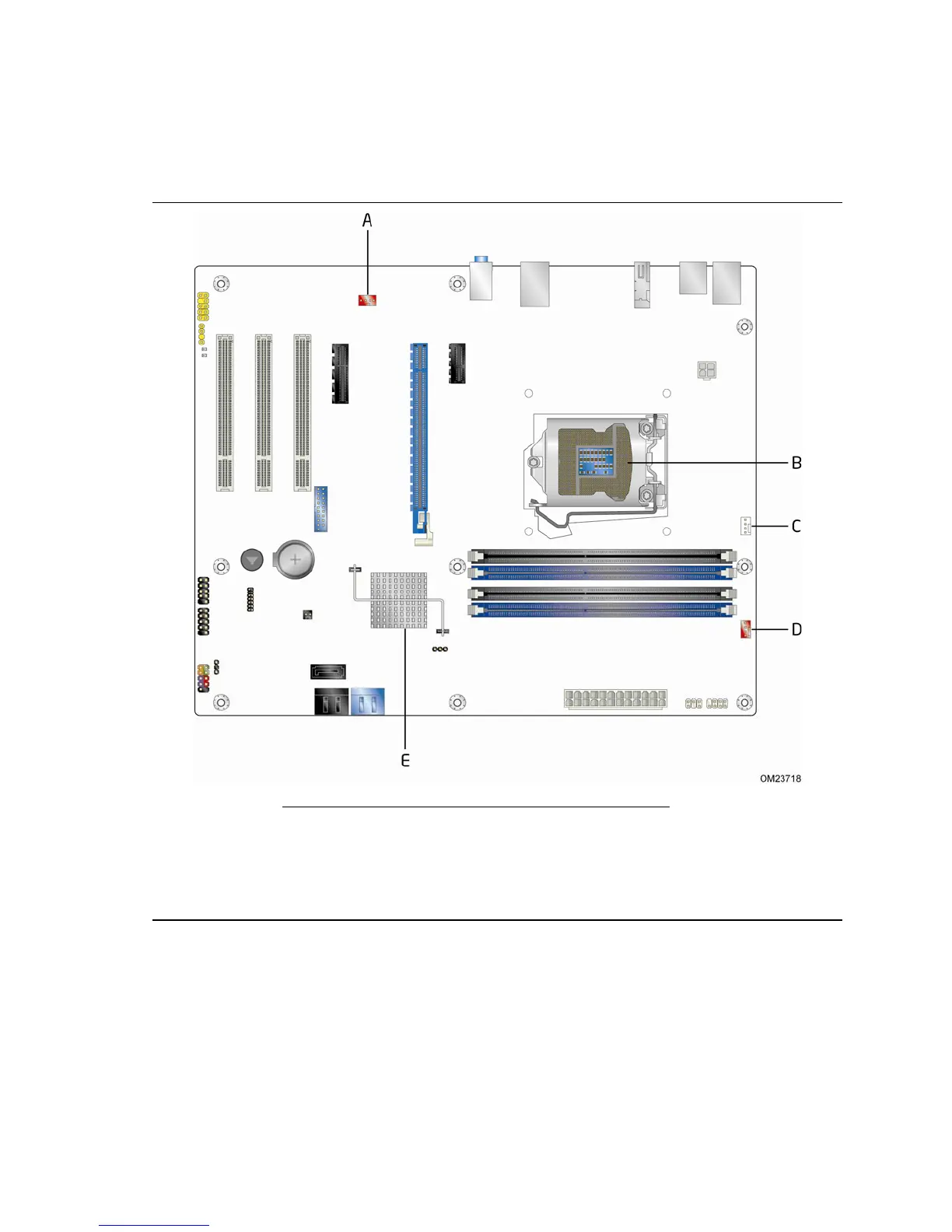

Figure 6 shows the locations of th
e thermal sensors and fan
headers.
Item Description
A
Rear chassis fan header
B
Thermal diode, located on the processor die
C Processor
fan
header
D
Front chassis fan head
er
E
Thermal diode
, located on the Inte
l Z77 PCH
Figure 6. Thermal Sensors an
d Fan Headers
31
33
Table of Contents
Default Chapter
2
Revision History
2
Intended Audience
5
What this Document Contains
5
Table of Contents
7
Tables
11
Product Description
11
Overview
11
Feature Summary
11
Board Layout
13
Figures
13
Major Board Components
13
Block Diagram
15
Online Support
16
Processor
16
Graphics Subsystem
17
Processor Graphics
17
Pci Express X16 Graphics
18
Supported Memory Configurations
19
Memory Configurations
20
System Memory
19
Memory Channel and DIMM Configuration
21
Intel ® Z77 Express Chipset
22
Direct Media Interface (DMI)
22
Display Interfaces
22
Audio Formats Supported by the HDMI Interface
23
Usb
24
SATA Interfaces
24
Sata Raid
25
HDMI Port Status Conditions
23
Legacy I/O Controller
26
Consumer Infrared (CIR)
26
Real-Time Clock Subsystem
26
Audio Jack Support
27
Audio Connectors and Headers
28
Audio Subsystem
27
Audio Subsystem Software
27
Back Panel Audio Connectors
28
LAN Subsystem
29
Intel ® 82579LF Gigabit Ethernet Controller
29
LAN Subsystem Software
30
RJ-45 LAN Connector with Integrated Leds
30
LAN Connector LED Locations
30
LAN Connector LED States
30
1.10 Hardware Management Subsystem
31
Hardware Monitoring
31
Fan Monitoring
31
Chassis Intrusion and Detection
31
Thermal Monitoring
32
Thermal Sensors and Fan Headers
32
1.11 Power Management
33
Acpi
33
Effects of Pressing the Power Switch
33
Power States and Targeted System Power
34
Hardware Support
35
Wake-Up Devices and Events
35
Power Connector
36
Fan Headers
36
Lan Wake Capabilities
37
Instantly Available Pc Technology
37
Wake from Usb
38
Wake from Consumer Ir
38
Power Supervisor
38
Location of the Standby Power LED
39
Technical Reference
41
Memory Resources
41
Addressable Memory
41
Detailed System Memory Address Map
42
Memory Map
43
Connectors and Headers
43
Back Panel Connectors
44
Component-Side Connectors and Headers
45
Front Panel Audio Header for Intel HD Audio
47
Front Panel Audio Header for AC '97 Audio
47
Front Panel USB 2.0 Headers
47
Front Panel USB 3.0 Connector
48
S/PDIF Header
48
Chassis Intrusion Header
49
LPC Debug Header
50
Add-In Card Connectors
50
Processor Core Power Connector
51
Main Power Connector
51
Power Supply Connectors
51
Connection Diagram for Front Panel Header
52
2.2.2.4 Front Panel Header
52
Reset Switch Header
52
2.2.2.5 Alternate Front Panel Power/Sleep LED Header
53
Connection Diagram for Front Panel USB 2.0 Headers
54
Jumper Block
55
BIOS Setup Configuration Jumper Settings
56
Mechanical Considerations
57
Form Factor
57
Electrical Considerations
58
Power Supply Considerations
58
Recommended Power Supply Current Values (High Power)
58
Recommended Power Supply Current Values (Low Power)
58
Fan Header Current Capability
59
Add-In Board Considerations
59
Thermal Considerations
59
Thermal Considerations for Components
61
Reliability
62
Environmental
62
Overview of BIOS Features
63
Introduction
63
BIOS Flash Memory Organization
64
Resource Configuration
64
PCI Express Autoconfiguration
64
BIOS Setup Program Menu Bar
64
BIOS Setup Program Function Keys
64
System Management BIOS (SMBIOS)
65
Legacy USB Support
65
BIOS Updates
66
Language Support
66
Custom Splash Screen
67
BIOS Recovery
67
Boot Options
68
Optical Drive Boot
68
Network Boot
68
Booting Without Attached Devices
68
Changing the Default Boot Device During POST
68
Boot Device Menu Options
68
Adjusting Boot Speed
69
Peripheral Selection and Configuration
69
BIOS Boot Optimizations
69
3.10 BIOS Security Features
70
3.11 BIOS Performance Features
71
Error Messages and Beep Codes
73
Speaker
73
BIOS Beep Codes
73
Front-Panel Power LED Blink Codes
74
BIOS Error Messages
74
Port 80H POST Codes
75
Port 80H POST Code Ranges
75
Port 80H POST Codes
76
Regulatory Compliance and Battery Disposal Information
81
Regulatory Compliance
81
Safety Standards
81
European Union Declaration of Conformity Statement
82
Product Ecology Statements
83
Disposal Considerations
83
Recycling Considerations
83
China Rohs
86
Intel Desktop Board DZ77SL-50K China Rohs Material Self
86
Declaration Table
86
EMC Regulations
87
ENERGY STAR* 5.0, E-Standby, and Erp Compliance
89
Regulatory Compliance Marks (Board Level)
90
Regulatory Compliance Marks
90
Battery Disposal Information
91
