Intel® Server Board S2600CO Family TPS Functional Architecture Overview
Revision 1.4 15
Intel order number G42278-004
3. Functional Architecture Overview
The architecture and design of the Intel
®
Server Board S2600CO is developed around the
integrated features and functions of the Intel
®
processor E5-2600 or E5-2600 v2 product family,
the Intel
®
C600-A chipset, the Intel
®
Ethernet Controller I350 Quad Port 1GbE chip, and the
Server Engines* Pilot-III Server Management Controller.

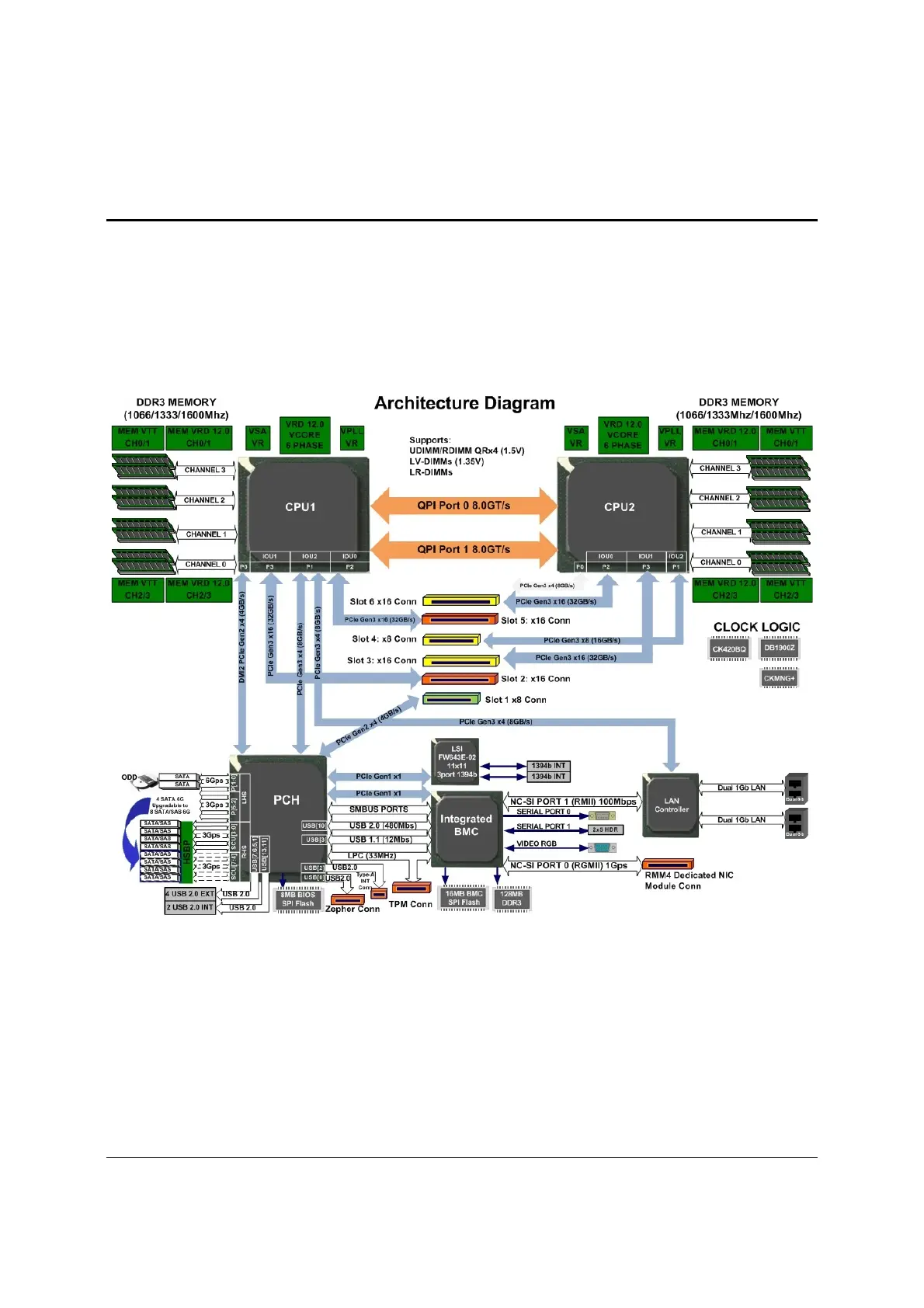

The following diagram provides an overview of the server board architecture, showing the
features and interconnects of each of the major sub-system components.
Figure 10. Intel
®
Server Board S2600CO Functional Block Diagram
