Intergas Compact HRE 18 SB User Manual

Intergas Heating Ltd 38

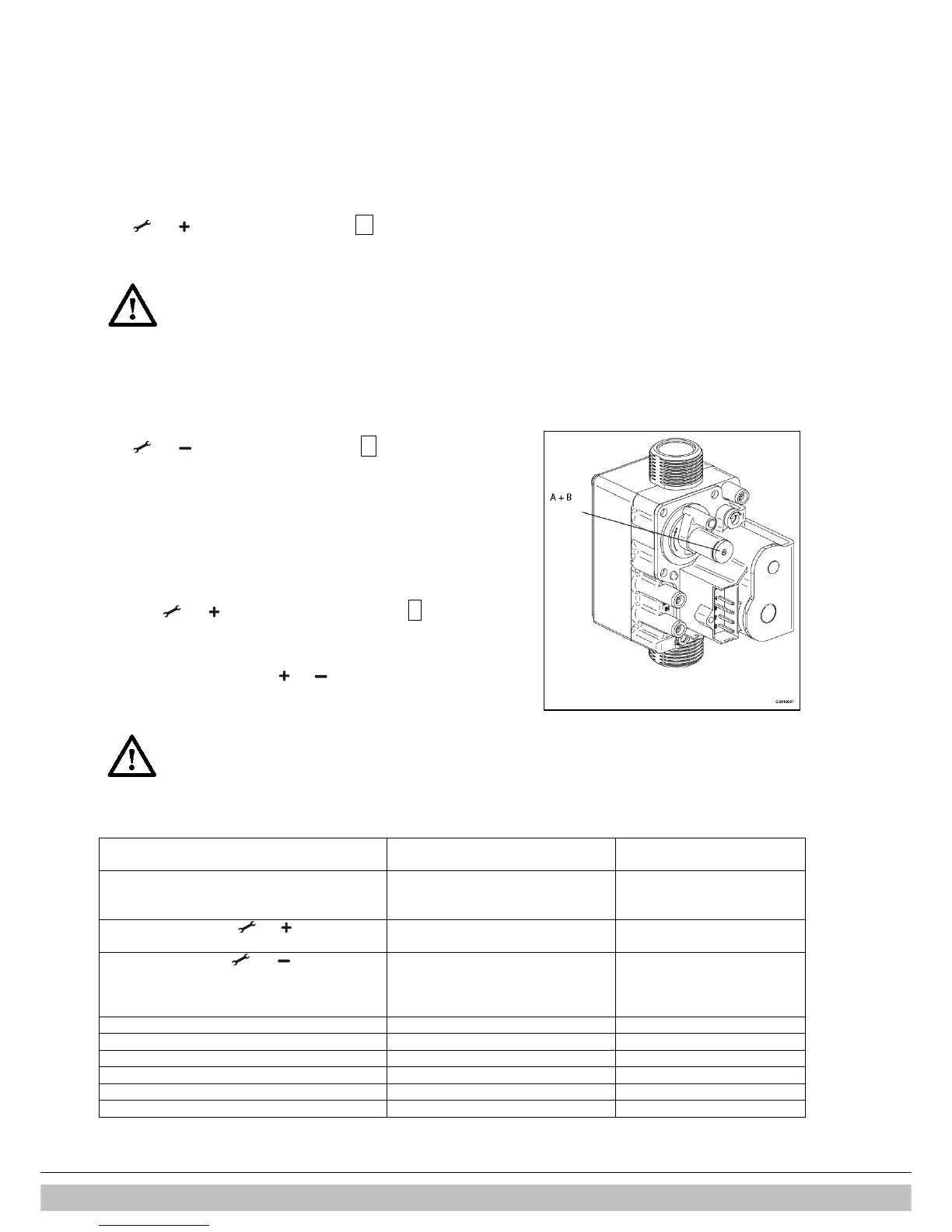

10.8 Setting gas/air adjustment procedure
1. Switch the appliance off with the on/off key ( - on service display).
2. Remove the front panel from the appliance.
3. Unscrew the CO
2
measuring nipple (X) and insert analyser probe.
4. Switch the appliance on with the on/off key.
High setting:
5. Adjust the appliance to the highest power by simultaneously pressing the keys
and on the operating panel until an H appears on the display.
6. Check if the CO
2
percentage is in accordance with the value mentioned in the
table below.
CAUTION
It is not possible to adjust the CO
2
percentage at high
setting. When the CO
2
percentage at high setting is not
within the prescribed tolerance band please contact
Intergas Heating.
7. Note the measured CO
2
percentage.
Low setting:
8 Adjust the appliance to the lowest power by simultaneously pressing the keys
and on the operating panel until an L appears on the display.
9 Measure the CO
2
percentage. If the CO
2
percentage does not correspond with
the value in the table below proceed with setting as follows:
10 Remove the cover cap (A).
11 Adjust the set screw (B) to the correct CO
2
percentage (clockwise higher and
anti-
clockwise lower).
12 After measurement and setting replace the cover cap (A) and close the CO
2
measurement nipple.
13 Adjust the appliance to the maximum power by simultaneously pressing the
keys and (2 x) on the operating panel until an H appears on the
display.
14 Measure the CO
2
percentage. If the CO
2
percentage does not correspond with
the value in the table under 10.7.2 please contact the manufacturer.
15 Press simultaneously on the and keys to leave the test program.
16 Fit the front panel to the appliance.
Gas type Natural gas H Propane P
Gas category 2H
G20
20mBar
3P G31(propane)
37mBar
CO
2
% at high setting(H) ( and 2x)
With opened casing. N.B. Not adjustable
9.1 ± 0.5 10.3 ± 0,5
CO
2
% at low setting (L) ( and )
With front cover removed
Equal to or max. 0,3 % lower than the
value at high setting.
Absolute min. value is 8,6 %
Min. 0,3 and max. 0,6 lower than
the value at high setting.
Absolute min. value is 9,3 %
Gas supply pressure (mBar) 20-30 25-35
Ø gas restriction (mm) (HRE 18 SB) 6.20 5.05
Ø gas restriction (mm) (HRE 24 SB, 30 SB) 6.95 5.50
Ø gas restriction (mm) (HRE 40 SB) 655 525
Minimum rpm (% of max) (parameter c and d) 30 40
Min. start rpm (% of max) (parameter F and F . ) 70 50
CAUTION
Check that the Flue gas sampling point and the Gas test
point are gas-tight. No adjustment should be made to the
gas valve without prior permission of Intergas Technical
Services.
