Electrical connections
6 720 643 409 (2010/03)
41

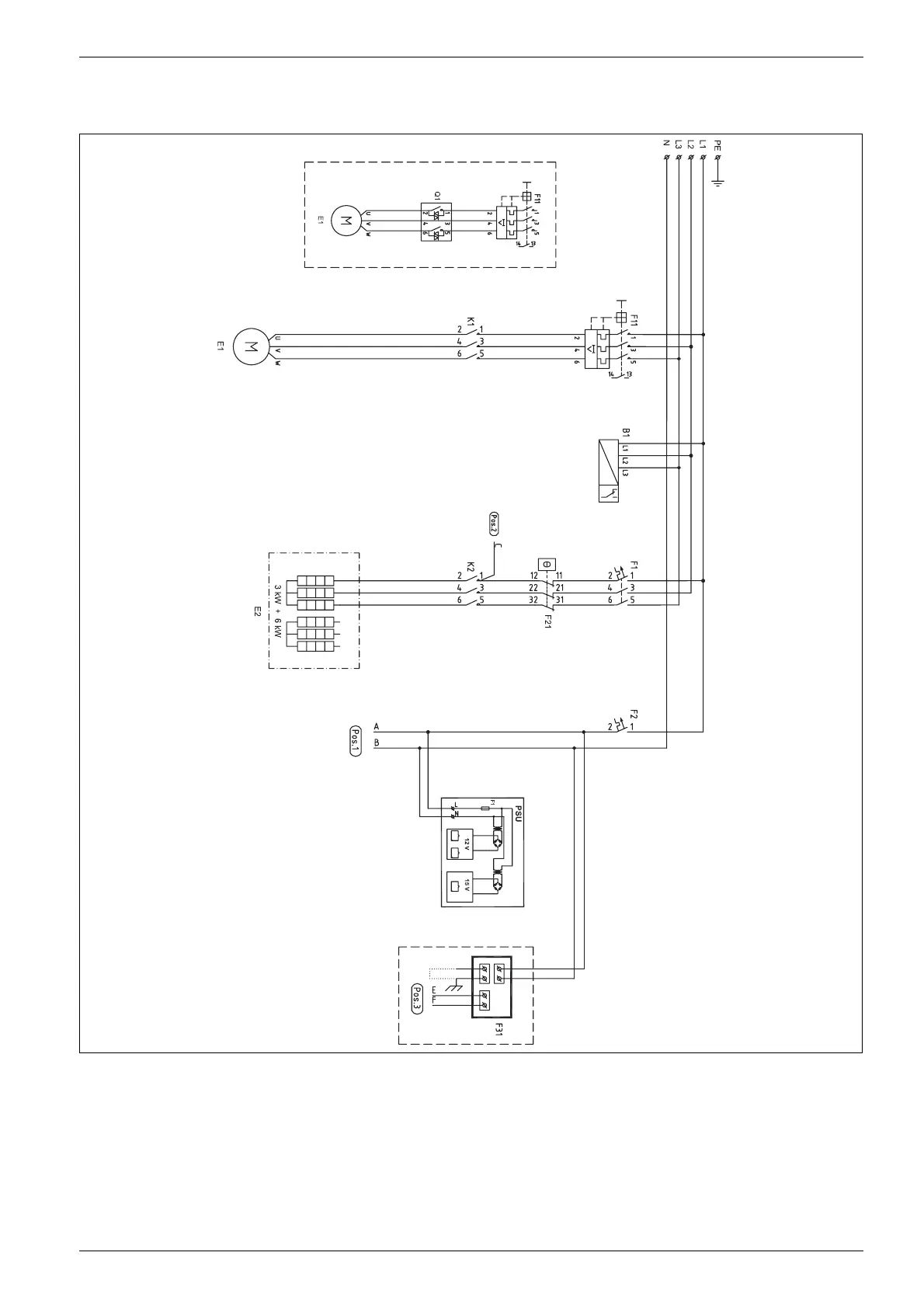

10.4.4 Internal wiring diagram C6-C11 E6-E11
Fig. 44 Internal wiring diagram
B1 Phase guard
E1 Compressor
E2 Electric add. heat
F1 Automatic fuse electric additional heat
F2 Miniature circuit-breaker heat pump
F11 Motor cut-out compressor
F21 Overheat protection electric additional heat
F31 Protective anode card
PSU Circuit board
K1 Contactor compressor
K2 Contactor electric element
X1 Terminal block
Q1 Soft starter (accessory)
6 720 641 855-27.1I
