3.4 Power supply
The IXrouter3 must be powered by an IEC/UL/EN/60950-1 certified Limited Power Supply (LPS) or for the United
States a Class 2 power supply. The LPS power supply is not included in the package of the IXrouter 3.
Power supply
12-24 VDC +/- 20% LPS 2A
Internal voltage protection
29V max
Input protection
Protected against polarity inversion
Isolation
1.5 kV
3.5 Wiring
Proper grounding and wiring of all electrical equipment are important to help ensure the optimum operation of
the IXrouter3 and to provide additional electrical noise protection for your application.
The IXrouter3 comes with a female 4-pin plug-in connector with screw connection (type: Weidmuller BL
5.08/04/180 SN BK BX). The optimal wire diameter is 1.5mm² (16AWG - 12AWG).
Wire size range
18 – 12 AWG
Wire strip length
7 mm
Terminal screw torque
0.4 N m
Max wire length
3 m
Min ground conductor
16 AWG
3.6 Digital input
By default, the Digital Input is not configured and doesn't need to be wired. The digital input provides a way to

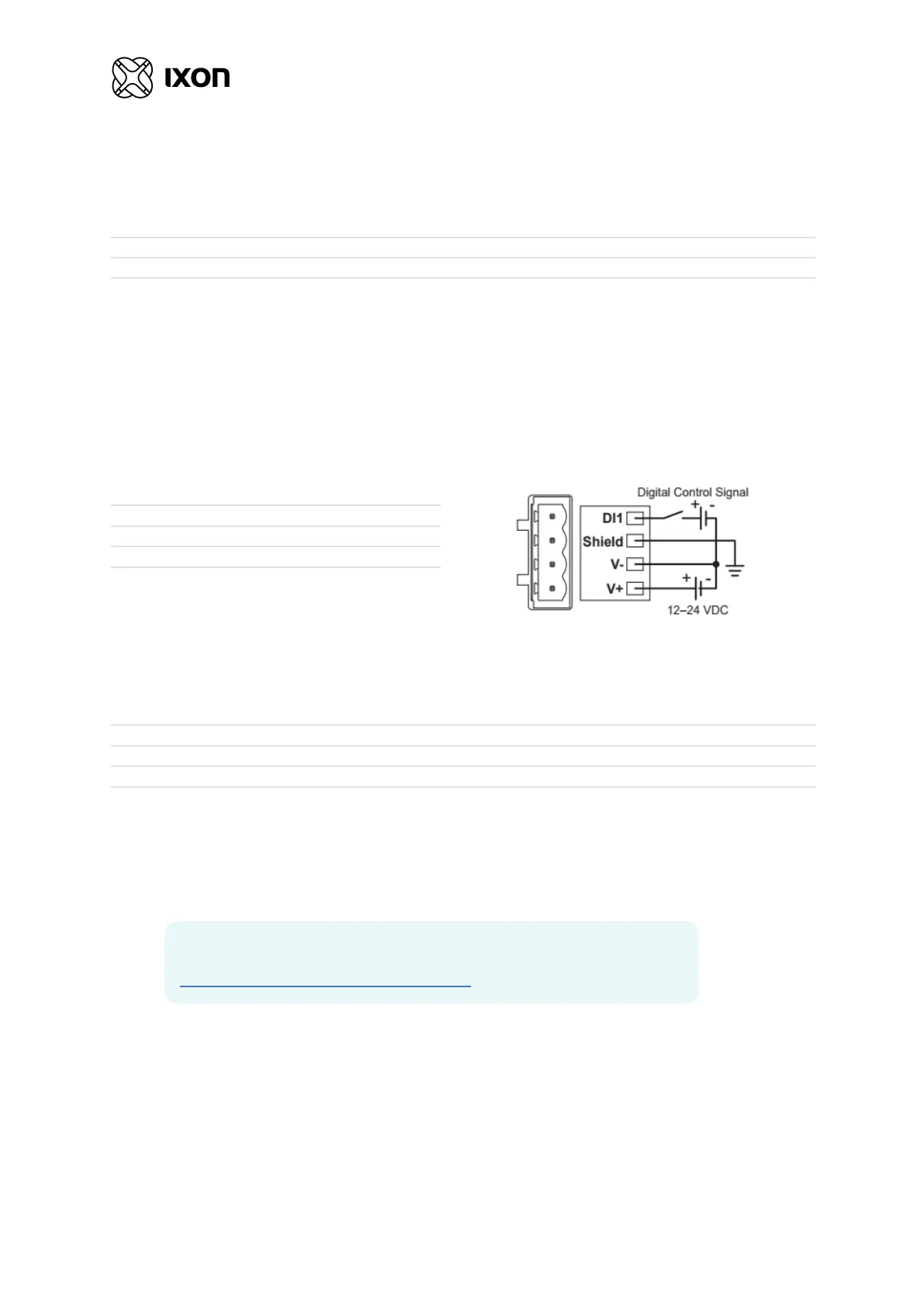

locally manage the IXrouter3’s VPN connection (ON/OFF). The wiring is depicted in the image above.
Type
Optocoupler
Voltage range
0-29 VDC
Voltage range (OFF state)
0-3 VDC
Voltage range (ON state)
7-29 VDC
Current voltage (ON state)
2-5 mA (typically)
3.7 Shield
Connect the Shield pin of the IXrouter with the protective earth conductor (PE), min. core diameter Cu 1.5 mm².
More info
Take a look at our online article for more detailed information on digital input:
support.ixon.cloud/hc/articles/360002554011.
