Jacobsen LF 4677 Maintenance Manual

78
> Change from previous revision
RA
RB
CA
CB
LBLA
2
9
1
11
4
5
4
9
3
4
7
8
4
12
10
3
4
4
11
5
Rear Reel Valve
Viewed from Behind
Rear Reel Valve
Viewed From Bottom
12
3
6
LF 4675 / LF 4677

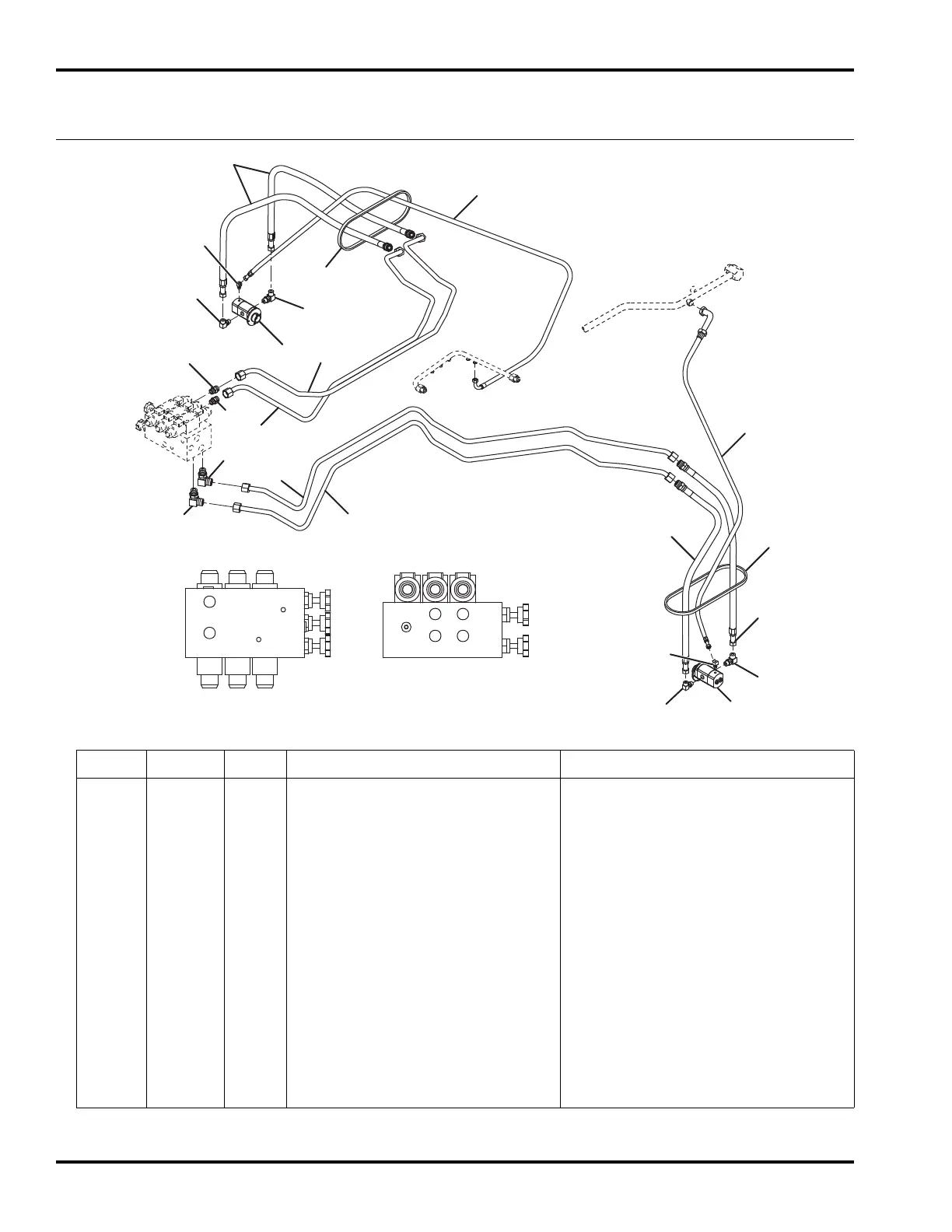

24.1 Wing Reel Hydraulics
7 Gang Units Only (LF 4675 and LF 4677)
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
1004430 1 Tube, Left Wing Pressure Rear Reel Valve Port LA
2 1004431 1 Tube, Left Wing Return Rear Reel Valve Port LB
3 1004221 4 Hose, Wing Reel
4 340070 6 Adapter, 90°
5 340022 2 Adapter, 45°
6 1004224 1 Hose, Left Wing Drain
7 1004433 1 Tube, Right Wing Pressure Rear Reel Valve Port RA
8 1004434 1 Tube, Right Wing Return Rear Reel Valve Port RB
9 339989 2 Adapter, Straight
10 1004225 1 Hose, Right Wing Drain
11 2822503 2 Motor, 5” Diameter Reel LF 4675, See 42.1
11 1002620 2 Motor, 7” Diameter Reel LF 4677, See 43.1
12 473142 6 Tie Wrap
