Jacobsen LF 4677 Maintenance Manual

66
> Change from previous revision
A
B
A
B
P
T2
10
9
8
1
2
3
Front
Lift
Valve
Rear Reel
Valve
Charge
(Inner)
Filter
1
2
3
4
5
5
6
8
9
10
12
11
14
16
16
18
17
1
15
15
13
17
9
To Lift Valve P Port
To Lift Valve
T Port
From Gear
Pump
To Steering
Cylinder
Aux
In
Out
LT
RT
LF 4675 / LF 4677

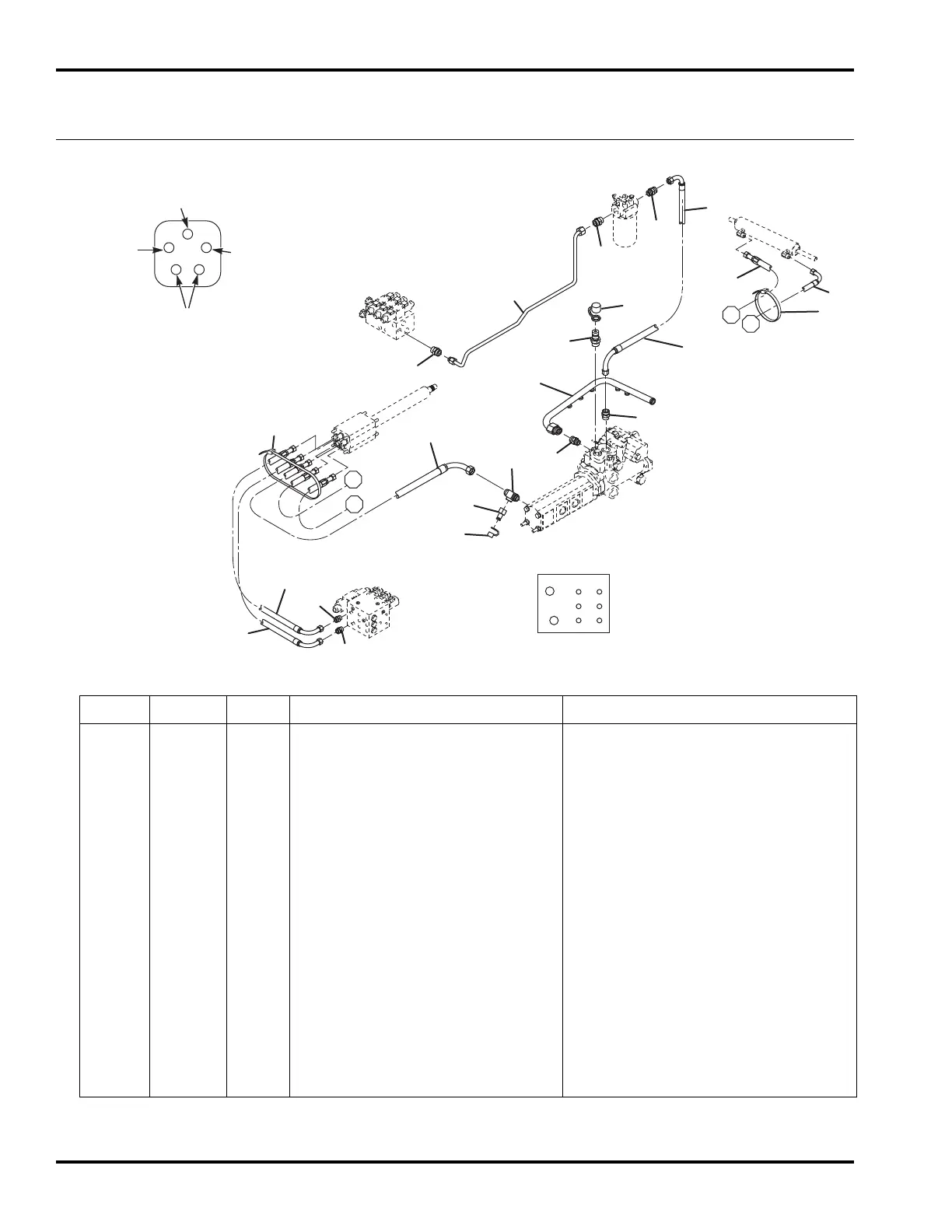

16.1 Charge Pressure and Steering Hydraulics
7 Gang Units (LF 4675 and LF 4677)
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
1003461 1 Hose, Charge Pressure Inlet
2 364945 1 Fitting, Diagnostic
3 339998 1 Adapter, Straight
4 365466 2 Fitting, Diagnostic
5 339996 2 Adapter, Straight
6 340274 1 Adapter, Tee
7 2812277 1 Tube, Rear Reel Valve to Filter
8 4113601 1 Tube, Case Drain
9 363030 3 Cover, Dust
10 1003342 1 Hose, LT Port To Steering Cylinder
11 1003341 1 Hose, RT Port To Steering Cylinder
12 1003334 1 Hose, Gear Pump To In Port
13 1003339 1 Hose, Aux Port To Lift Valve P Port
14 1003340 1 Hose, Out Port To Lift Valve T2 Port
15 339985 2 Adapter, Straight
16 339989 2 Adapter, Straight
17 473142 2 Tie Wrap
