LF 4675 / LF 4677

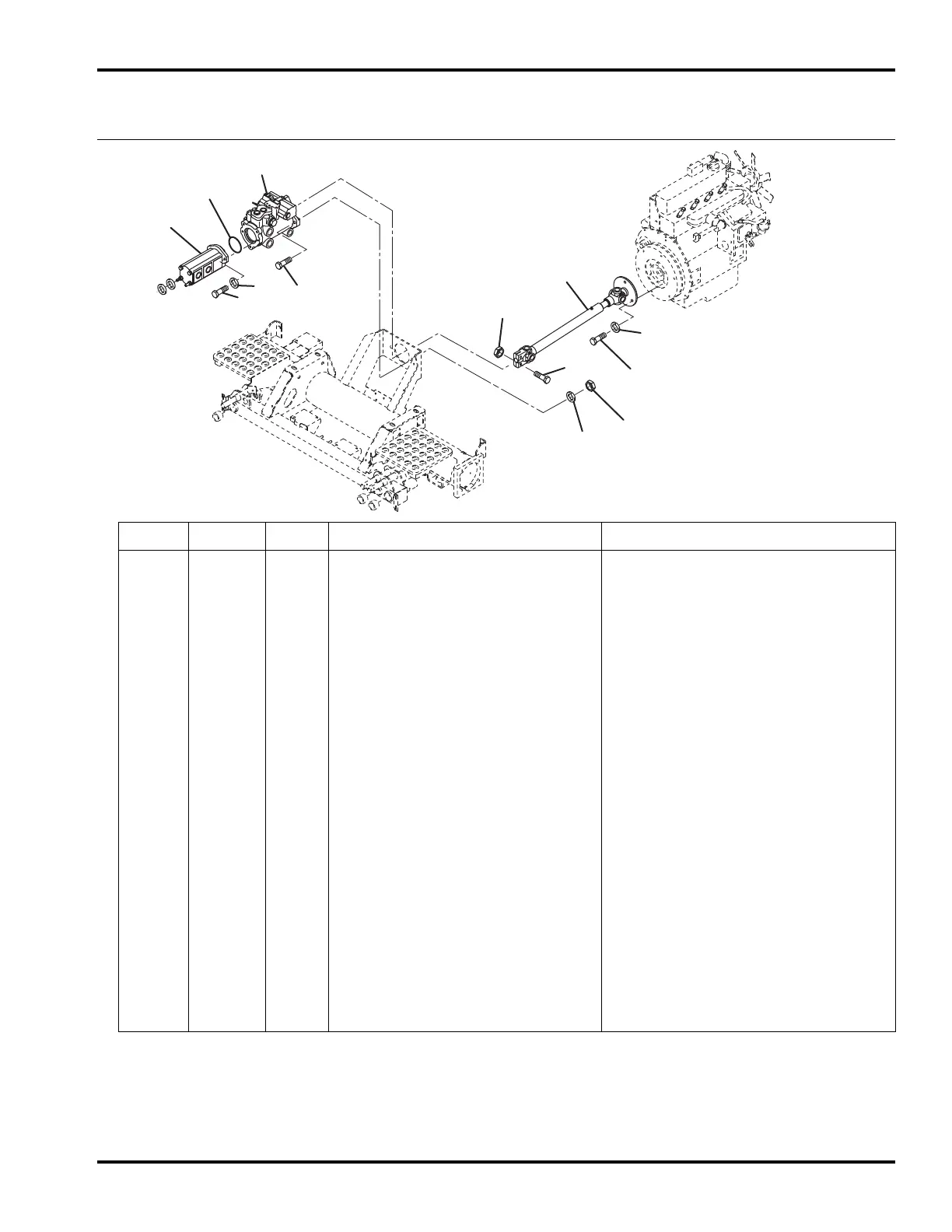

14.1 Pump Mounting
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
2810006 1 Pump, Traction
5003034 1 • Seal Kit
5003432 1 • Control Kit
5003433 1 • Shaft Seal Kit
5003434 1 • System Relief Kit
2810440 1 • Sleeve, Control Arm
2 1004002 1 Pump, 4 Section Gear 7 Gang Units
5003036 1 • Seal Kit
3 1002854 1 Driveshaft
554663 2 • Cross and Bearing Kit
4 446154 2 Lockwasher, 1/2 Heavy
5 443118 2 Nut, 1/2-13 Hex
6 363485 3 Lockwasher, M10 Heavy
7 362263 3 Screw, M10-1.25 x 20mm Hex Head
8 444762 2 Locknut, 5/16-18 Center
9 446142 2 Lockwasher, 3/8 Heavy
10 400266 2 Screw, 3/8-16 x 1-1/2” Hex Head
11 400410 2 Screw, 1/2-13 x 1-3/4” Hex Head
12 400264 2 Screw, 3/8-16 x 1-1/4” hex Head
13 362743 1 O-Ring Seal
