Jacobsen LF 4677 Maintenance Manual

97
> Change from previous revision
4
11
6
12
10
5
3
8
7
9
1
2
LF 4675 / LF 4677
Item Part No. Qty. Description Serial Numbers/Notes
1
3003416 1 Shaft
2 3000115 1 Tube
◆ 3 500534 2 Bearing, Cup and Cone
4 471214 2 Grease Fitting
◆ 5 338647 2 Grease Seal
◆ 6 N/S 16 Spacer
◆ 7 3004882 2 Grease Seal
8 3005156 2 Sleeve,Wear
◆ 9 367029 2 Locknut
10 241838 2 Bearing Housing
11 365016 1 Spring, Heavy
◆ 12 N/S 18 Washer
5000097 1 Roller Rebuild Kit Includes Items ◆

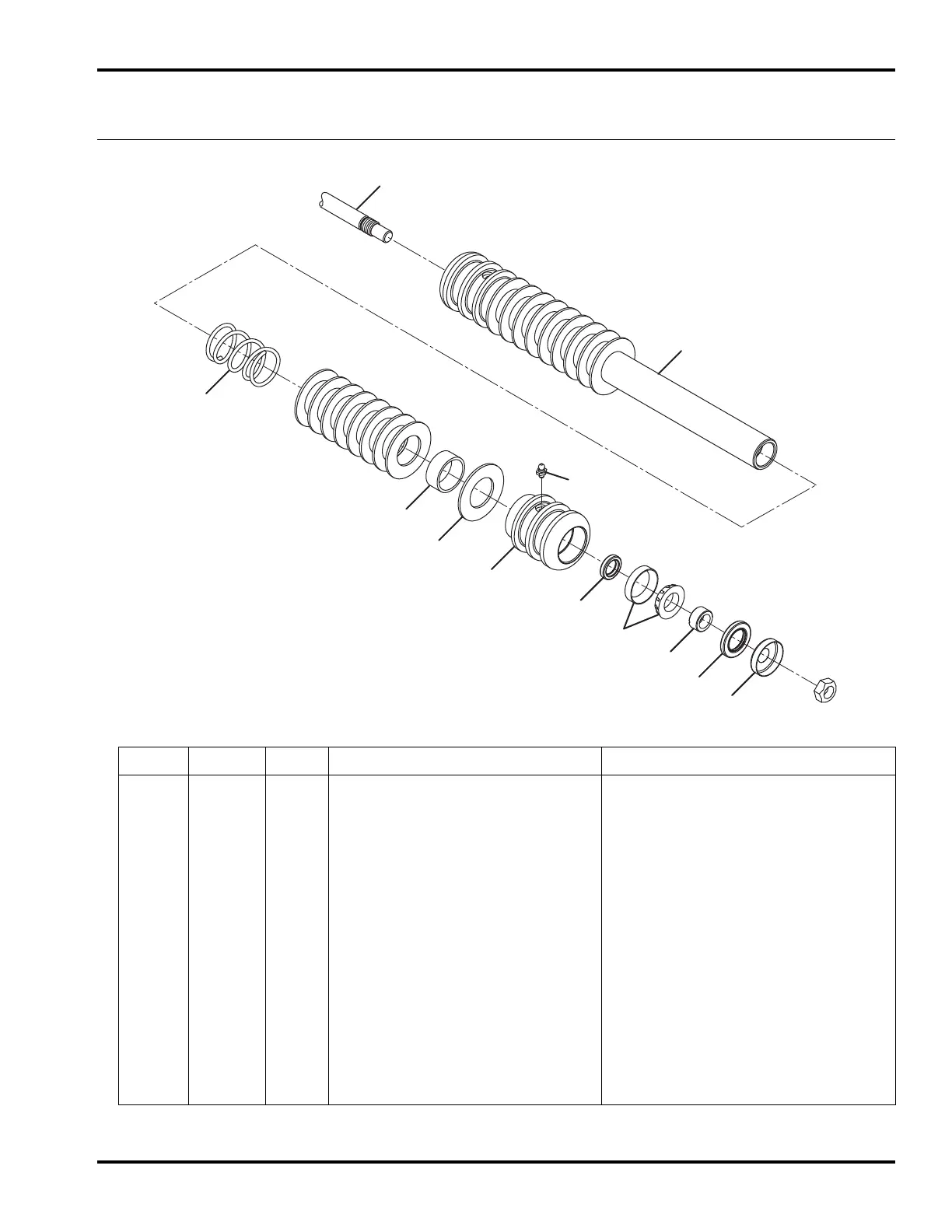

35.1 Front Roller
Part Number 123268
Serial No. All
