Jacobsen Turfcat T628D Parts & Maintenance Manual

92
> Change from previous revision
2000746
2000655
2000638
TIRE PRESSURE
14 PSI
Caster Mount
LOW
LOW
LOW
LOW
LOW
LOW
LOW
LOW
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
Spacers
0
1/4” (1)
1/2” (1)
1/2” (1); 1/4” (1)
1/2” (2)
1/2” (2); 1/4” (1)
1/2” (3)
1/2” (3); 1/4” (1)
0
1/4” (1)
1/2” (1)
1/2” (1); 1/4” (1)
1/2” (2)
1/2” (2); 1/4” (1)
1/2” (3)
1/2” (3); 1/4” (1)
Hanger Hole
1
1
2
2
2
3
3
3
4
4
4
5
5
6
6
6
Spacers
1“
1-1/4”
1-1/2“
1-3/4”
2“
2-1/4”
2-1/2“
2-3/4”
3“
3-1/4”
3-1/2“
3-3/4”
4“
4-1/4”
4-1/2“
4-3/4”
ACTUAL HEIGHT MAY VARY DUE TO TIRE PRESSURE AND CONDITION
SEE OPERATOR’S MANUAL FOR MORE INFORMATION.
2000764
Height of Cut Chart
LOW
HIGH
SPACERS
CASTER
MOUNT
2
1
3
6
5
4
DECK HANGER
By Jacobsen
A Textron Company
1
1
1
2
2
3
3
4
4
5
5
5
6
6
6
7 / 8
7
8
4164381
TURFCAT T628D

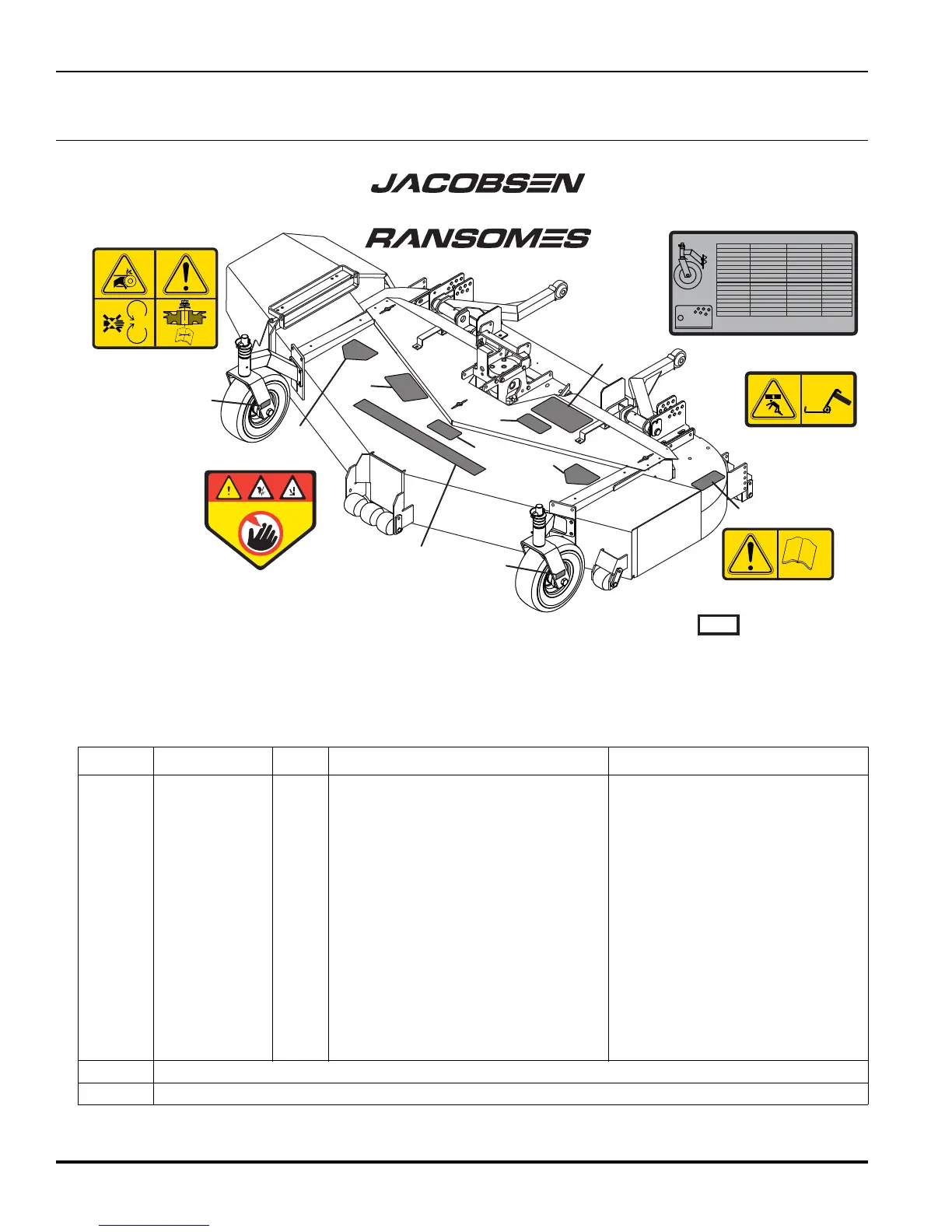

30.1 Deck Decals
Side Discharge Decks
Serial No. 956314 - All
Serial No. 957233 - All
Item Part No. Qty. Description Serial Numbers/Notes
●◆
1
2000746 2 Decal, Hook Latch
◆ 2 2000764 1 Decal, Height of Cut
● 3 2000638 1 Decal, Rotating Parts/Blade
● 4 2000655 1 Decal, Read Manual
5 00253 2 Decal, 14 PSI
● 6 4164381 1 Decal, Blade Contact/Thrown Object
7 4124792 1 Decal, Jacobsen
8 4137628 1 Decal, Ransomes
● Included with Decks 2721961 (63” Side Discharge) and 2721963 (72” Side Discharge)
◆ Included with Belt Covers 2721965 (63” Side Discharge) and 2721967 (72” Side Discharge)
