Jacobsen Turfcat T628D Parts & Maintenance Manual

94
> Change from previous revision
3
4
4
4
5
5
510
10
10
10
6
7
7
6
7
7
1
2
8
9
TURFCAT T628D

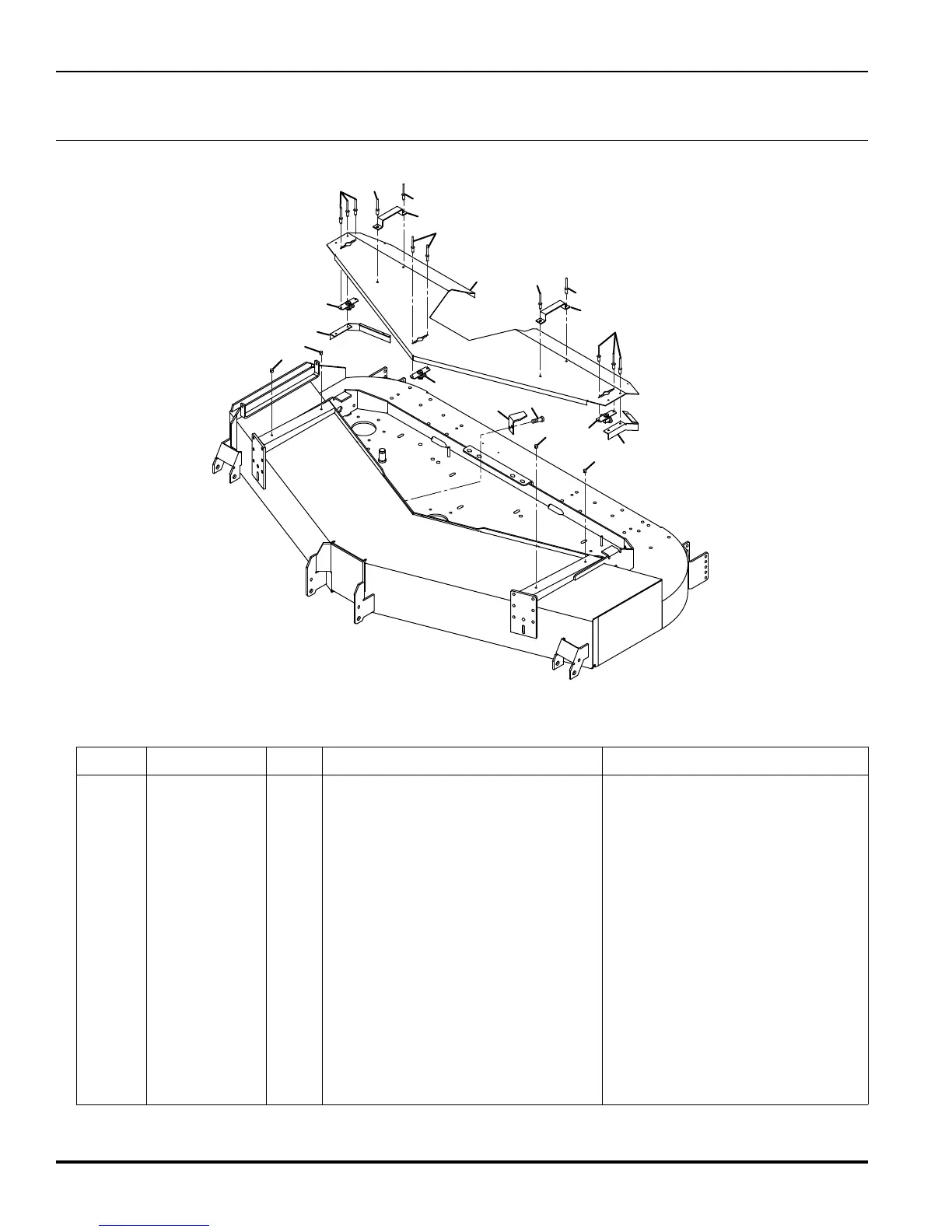

32.1 Belt Cover
Side Discharge Decks
Serial No. 956314 - All
Serial No. 957233 - All
Item Part No. Qty. Description Serial Numbers/Notes
1
2721964 1 Belt Cover 63” Side Discharge Decks
1 2721966 1 Belt Cover 72” Side Discharge Decks
2 2192719.7 1 Left Side Belt Cover Plate 63” Side Discharge Decks
2 2192672.7 1 Left Side Blet Cover Plate 72” Side Discharge Decks
3 2192720.7 1 Right Side Belt Cover Plate 63” Side Discharge Decks
3 2192673.7 1 Right Side Belt Cover Plate 72” Side Discharge Decks
4 64215-05 10 Pop Rivet, #64
5 178111 2 Spring Latch 63” Side Discharge Decks
5 178111 3 Spring Latch 72” Side Discharge Decks
6 32418-04 2 Handle
7 64215-07 4 Pop Rivet, #84
8 2192671.7 1 Bracket, Latch 72” Side Discharge Decks Only
9 64197-016 2 Screw, 3/8-16 x 1/2” Thread Forming 72” Side Discharge Decks Only
10 48517-06 4 Hole Plug, 1/4”
