TURFCAT T628D
Item Part No. Qty. Description Serial Numbers/Notes
1
2192230.7 1 Left Side Foot Guard 72” Rear Discharge Decks Only
2 2192229.7 1 Right Side Foot Guard 60” Rear Discharge Decks
2 2192231.7 1 Right Side Foot Guard 72” Rear Discharge Decks
3 361619 6 Screw, M10-1.5 x 25 mm Hex Head 60” Rear Discharge Decks
3 361619 4 Screw, M10-1.5 x 25 mm Hex Head 72” Rear Discharge Decks
4 452008 6 Flat Washer, 3/8 60” Rear Discharge Decks
4 452008 4 Flat Washer, 3/8 72” Rear Discharge Decks
5 118107 1 Brush 72” Rear Discharge Decks Only
6 112378.7 1 Retainer, Brush 72” Rear Discharge Decks Only
7 453023 4 Flat Washer, 1/4 72” Rear Discharge Decks Only
8 64123-114 2 Screw, 1/4-20 x 3/4” Flange Head 72” Rear Discharge Decks Only
9 445805 2 Nut, 1/4-20 Nylock Hex 72” Rear Discharge Decks Only
10 64237-03 2 Nut, M10-1.5 Nylock Hex 60” Rear Discharge Decks Only

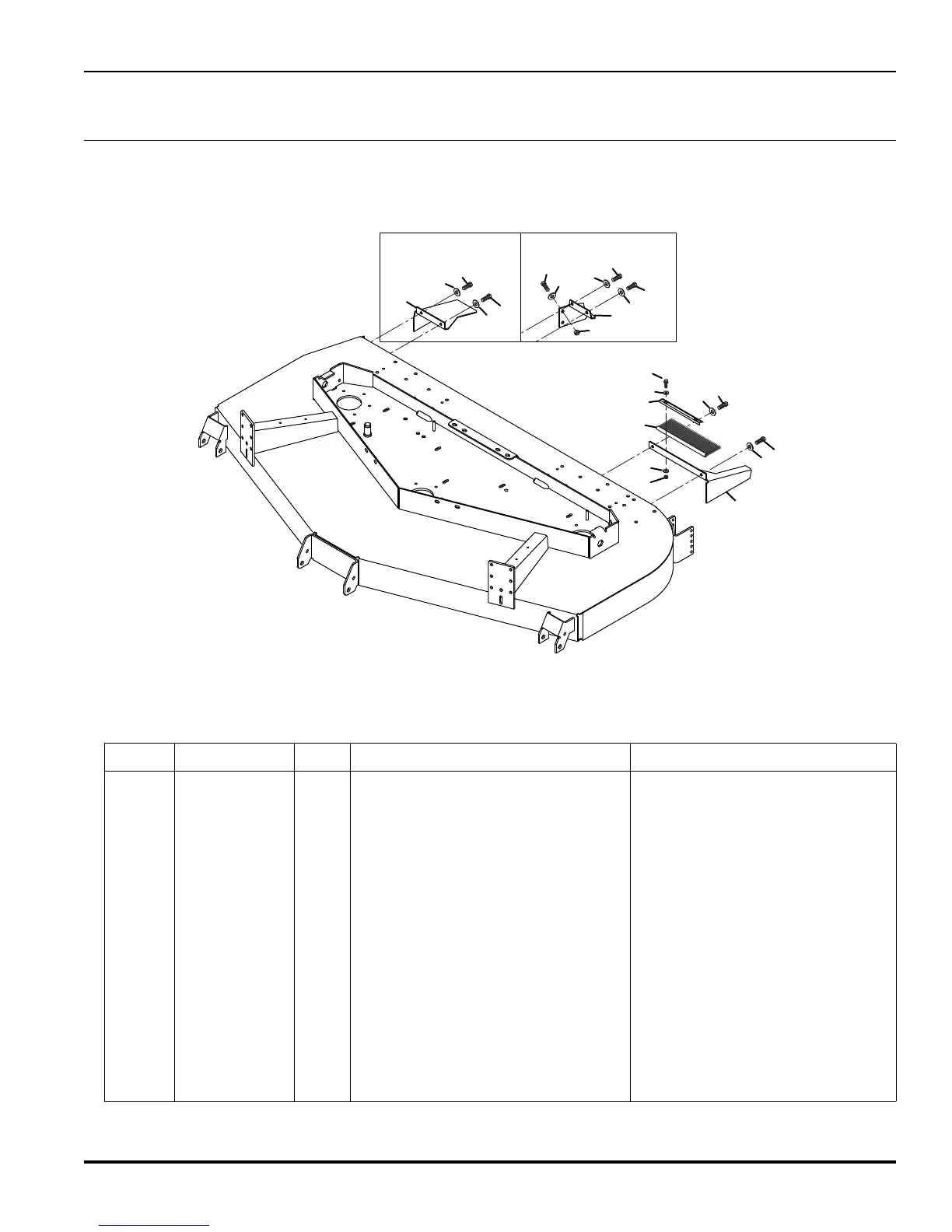

38.1 Foot Guards
Rear Discharge Decks
Serial No. 956023 - All
Serial No. 957234 - All
