7.0 Power Requirements
Jacuzzi
®
spas are designed to provide optimum performance and
exibility of use when connected to their maximum electrical service.
They are congured at the factory. The most common electrical
connections are listed below:
North American Models (60 Hz)
Voltage: 240 VAC/40A* 240 VAC/50A** 240 VAC/60A***
Max. Current Draw:
2-Pump System: 26A 37A 48A
3-Pump System: N/A 37A 48A
Frequency: 60 Hz 60 Hz 60 Hz
Number of Wires: 3 3 3
*
In 40A conguration, the heater will not operate while either jets pump is
running. Not recommended for the J495.
**
In 50A conguration, the heater will operate when one jets pump is
running, but will not operate if more than one jets pump is running. This
is the factory setting.
***
In 60A conguration the heater will operate when two jets pumps are
running, but will not operate if three jets pumps is running.
F1 10A 250VAC
F7 30A
30A
F6
K12
K1
K9
K15
K14
T1
TB1
4 3 2 1
K5
J22
N/A
N/A
J43
J2
K13
J65
J51 J3
J52
J4
J61
J62
J49
K11
K10
J59
J44
J48
J39
2A 250VAC
F5
30A
F4
J28
J30
J27
J34 J29
J50 J56
J57
J63
J37
K8
K4
K6 K7
1/4AT 250VAC
F2
J16
J17
J18
ON
J1
J6
J9
J20
J21
J19 J67
J12
K3
J11
J13 J14
J15
J10
J24
ZONE 2
J25
ZONE 3
J23
ZONE 1
J26
ZONE 4
C58 C57
K2
GFCI TRIP
J8
Q32
J60
J66
J55
J54
J38
J53
J45
J46
J47
J41
J58
J42
J31
J32
J33
J40
J64
J36
J35
1
2
3
4
S1
J7 J69 J68
Red
Green
Black

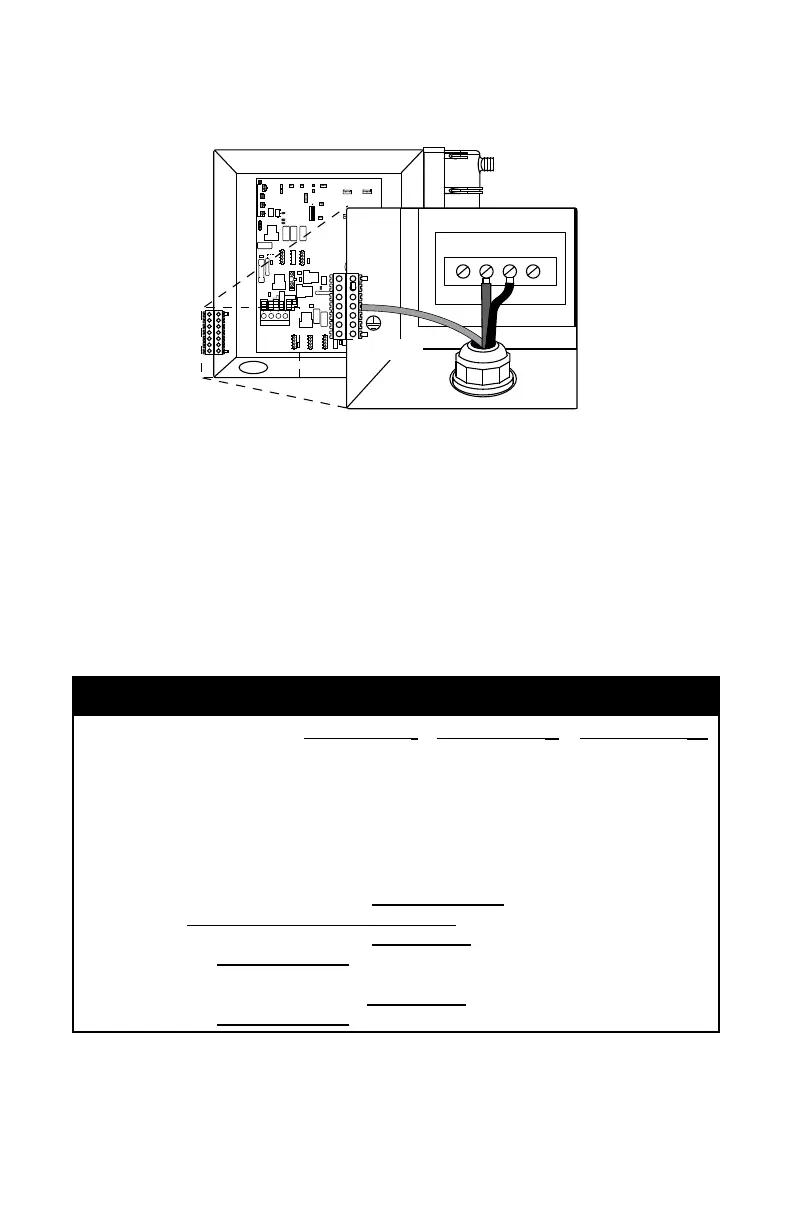

Figure D
North American 60Hz 240 VAC
Connection
