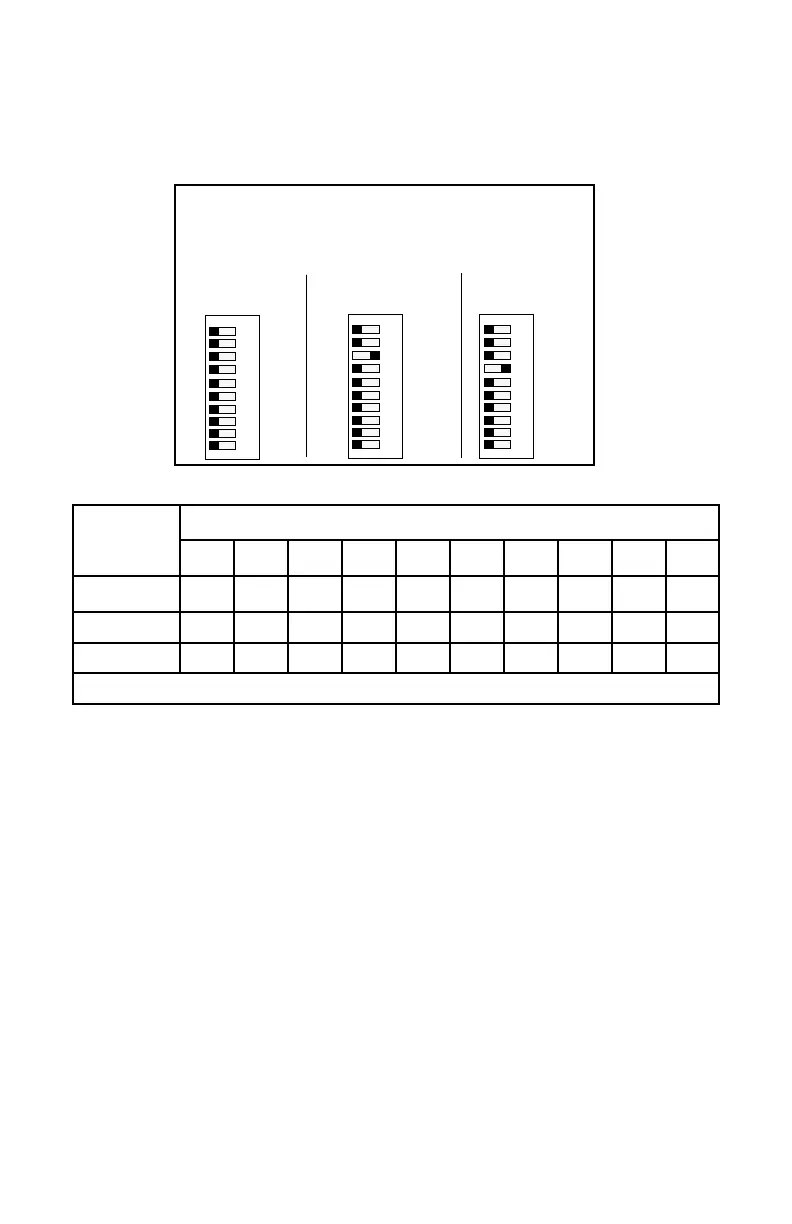

18.3 Dip Switch Settings
The dip switches are at the S1 location on the board.
A. Switch settings for Domestic 60Hz Models
DOMESTIC DIP SWITCH SETTINGS
S1 LOCATION
40A
50A
(factory default)
60A
1
2
3
4
5
6
7
8
9
10
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ONOFF
1
2
3
4
5
6
7
8
9
10
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
ONOFF
1
2
3
4
5
6
7
8
9
10
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ONOFF
BREAKER
DIP SWITCH NUMBER
1 2 3 4 5 6 7 8 9 10
40A OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF
50A* OFF OFF ON OFF OFF OFF OFF OFF OFF OFF
60A OFF OFF OFF ON OFF OFF OFF OFF OFF OFF
*50A is the factory default setting
