Jacuzzi J-470 Use, Installation And Maintenance Instructions

33
J-480
A. Control Panel
B. Waterfall Control Valve
C. Air Control Valve (4 ea.) Introduce Air to Specified Jet
Groups
D. Optional Audio System Speaker (4 ea.)
E. Adjustable Pillows (4 ea.)
F. Cup Holder (4 ea.)
G. Massage Selectors (2 ea.) Controls Specified Jet Groups
H. Waterfalls (2 ea.)
I. FX Jets (4 ea.) And FX2 Jets (2 ea.)
J. ProClearTM Plus Polishing Filter Bag
K. ProClearTM Floating Skimmer And Filter Cartridge with In-
tegrated Chemical Dispenser.
L. NX Jets (2 ea.) And MX2 Jets (3 ea.)
M. FX2 Jets (2 ea.)
N. NX Jets (2 ea.) And RX Jets (10 ea.)
O. Lounge Jets:
FX Back Jets (6 ea.),
SX2 Wrist And Calve Jets (6 ea.),
P. iPod connector
Q. Lighted Seat Logo
R. Footwell Filter Suction Covers (3 ea.)
S. Bottom Filter Suction Cover
T. Waterfall Filtration Return
U. FX Calf Jets (4 ea.)
V. FX Footwell Jets (4 ea.)
W. IX suction jet (lighted)
X. Drain/heater input/optional ozone return fitting
Y. Suction jet flow control valve (lighted)
Z. Optional Audio System Receiver

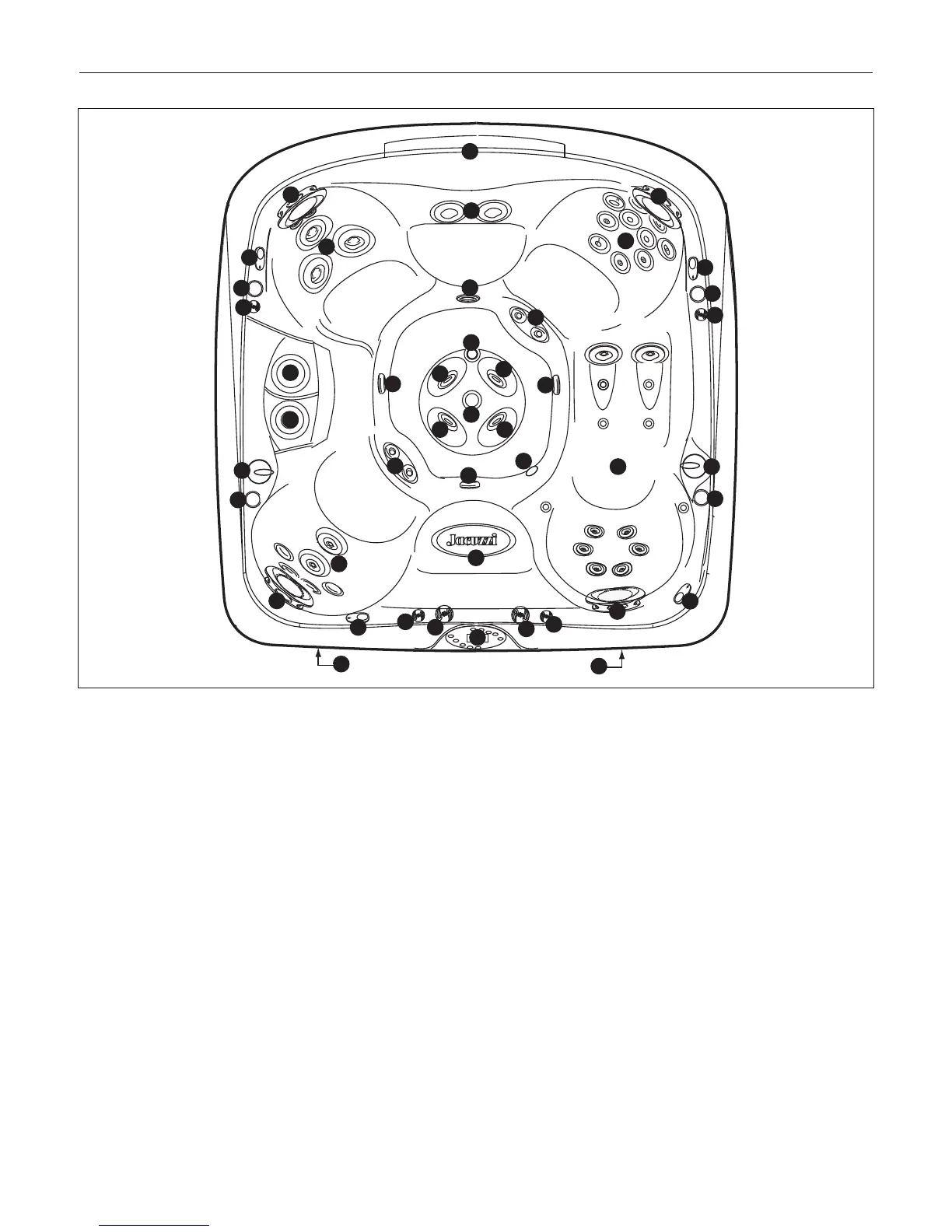

CHARACTERISTICS AND CONTROLS J-480
A
B
C
D
E
I
J
K
G
C
D
E
L
M
H
E
E
D
D
C
G
F
F
F
F
N
O
T
S
Q
Y
C
W
Z
P
V
V V
V
R
R
R
U
U
X
